Citation 52" Zero-Turn Mower, 23hp Briggs & Stratton

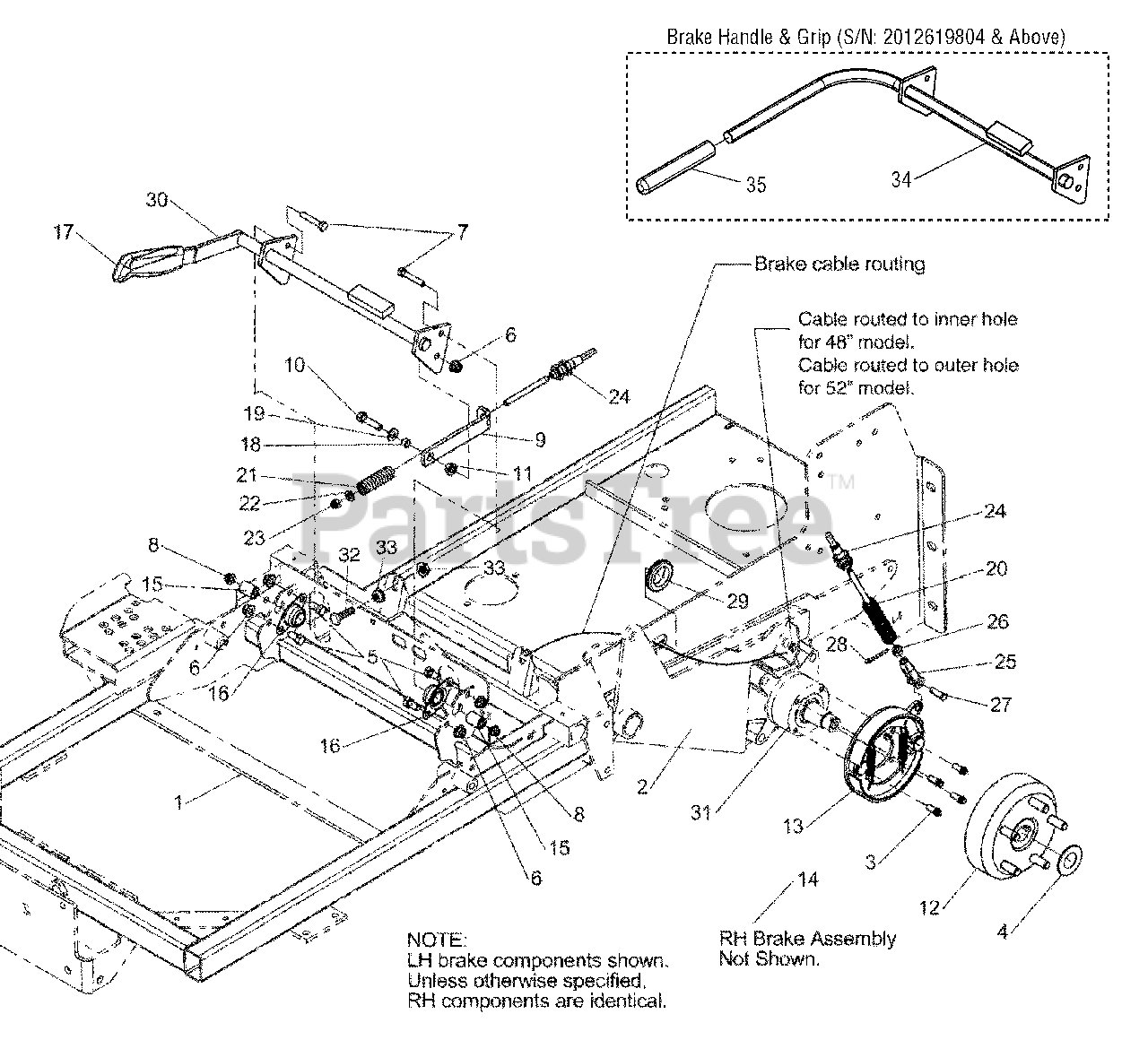

Parking Brake Group - 48" Models & 52" Models S/N: 2014624505 & Below Parts Diagram

  • Title

1

MAIN FRAME

$

$

Not available

2

MOTOR MOUNT

$

$

Not available

3

Simplicity 5023490

BOLT, 5/16-18 X 3/4 12PT FLANGE - PATCH
(Superseded to 5023490SM)

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 5023249

WASHER, 1 x 2
(Superseded to 5023249SM)

$6.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025013X6

BOLT, 3/8-16 X 3/4" GD5 YZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 5061794A

LINK, BRAKE STOP, 6.0 - BLK
(Superseded to 5061794AYP)

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 YZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 1 left!

0

12

Simplicity 5102896

BRAKE DRUM, 6", 5 BOLT, KNOTT
(Superseded to 5102896YP)

Note: (S/N: 2015208612 & Above)

$225.99

$

In Stock, only 1 left!

0

12

Simplicity 5023368

DRUM,1-1/4TAPER,5 BOLT
(Superseded to 5102896)

Note: (S/N: 2015208611 & Below)

$225.99

$

In Stock, only 1 left!

0

13

Simplicity 5102897

BRAKE SHOE ASM, LH, KNOTT
(Superseded to 5102897YP)

Note: (S/N: 2015208612 & Above)

$165.99

$

Usually ships in 2-12 days

0

13

Simplicity 5023500

ASSM, BRAKE, 1-1/4 HUB, LH
(Superseded to 5023500SM)

Note: (S/N: 2015208611 & Below)

$271.99

$

Usually ships in 2-12 days

0

14

Simplicity 5102898

BRAKE SHOE ASM, RH, KNOTT
(Superseded to 5102898YP)

Note: (Not Shown - S/N: 2015208612 & Above)

$171.99

$

Usually ships in 2-12 days

0

14

Simplicity 5023501

ASSM, BRAKE, 1-1/4 HUB, RH
(Superseded to 5023501SM)

Note: (Not Shown - S/N: 2015208611 & Below)

$271.99

$

In Stock, only 1 left!

0

15

Simplicity 5042134

SPACER, .32 X .75 X 1.06, PM
(Superseded to 5042134SM)

$6.49

$

Usually ships in 2-12 days

0

16

Simplicity 5021098

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 8

0

17

Simplicity 5100171

GRIP, BLACK FLEXIBLE
(Superseded to 5100171SM)

$13.99

$

In Stock, only 1 left!

0

18

Simplicity 5041930

SPACER, .38 X .50 X .27, CZ
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 5023320

SPRING-COMP, .615ID X 4.00LG X .080WR
(Superseded to 5023320SM)

$8.49

$

In Stock, only 1 left!

0

21

Simplicity 5022361

SPRING-COMP, .428IDX2.50LGX.154WR, BZ
(Superseded to 5022361SM)

$9.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Simplicity 5025045

NUT, Hex, Nylon Lock, 5/16-24
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 7

0

24

Simplicity 5100087

CABLE, PARKING BRAKE
(Superseded to 5600932YP)

Note: (S/N: 2012619803 & Below)

$100.99

$

Usually ships in 2-12 days

0

25

Simplicity 5020979

CLEVIS, 5/16-24, Plastic
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

26

Simplicity 5025033

NUT, Hex, 5/16-24
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

27

Simplicity 5025213X8

PIN, CLEVIS, 5/16 X 1, PLATED
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

28

Simplicity 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

29

Simplicity 5021397

GROMMET, 1-1/4"
(Superseded to 5021397SM)

$6.49

$

Usually ships in 2-12 days

0

30

Simplicity 5049831C

BRAKE SHAFT
(Superseded to 5403631CSM)

Note: (S/N: 2012619803 & Below)

$49.99

$

Usually ships in 2-12 days

0

31

WHEEL MOTOR

$

$

Not available

32

Simplicity 5025011X9

BOLT, 5/16-18 X 1-1/8 GD5 CZ
(Superseded to 5025011X9SM)

$3.99

$

Usually ships in 2-12 days

0

33

Simplicity 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0

34

Simplicity 5403631A

WELD, BRAKE SHAFT - BLK
(Superseded to 5403631AYP)

Note: (S/N: 2012619804 & Above)

$63.99

$

Usually ships in 2-12 days

0

35

Simplicity 5101038

GRIP, FOAM, 3/4 ID X 6 X .187
(Superseded to 5101038SM)

Note: (S/N: 2012619804 & Above)

$7.49

$

In Stock, only 1 left!

0
