2690474 - Simplicity Javelin 50" Zero-Turn Mower, 22hp Briggs & Stratton 44" & 50" Mower Deck - Lift Assembly Group (ja4450dl) Parts Diagram

Javelin 50" Zero-Turn Mower, 22hp Briggs & Stratton

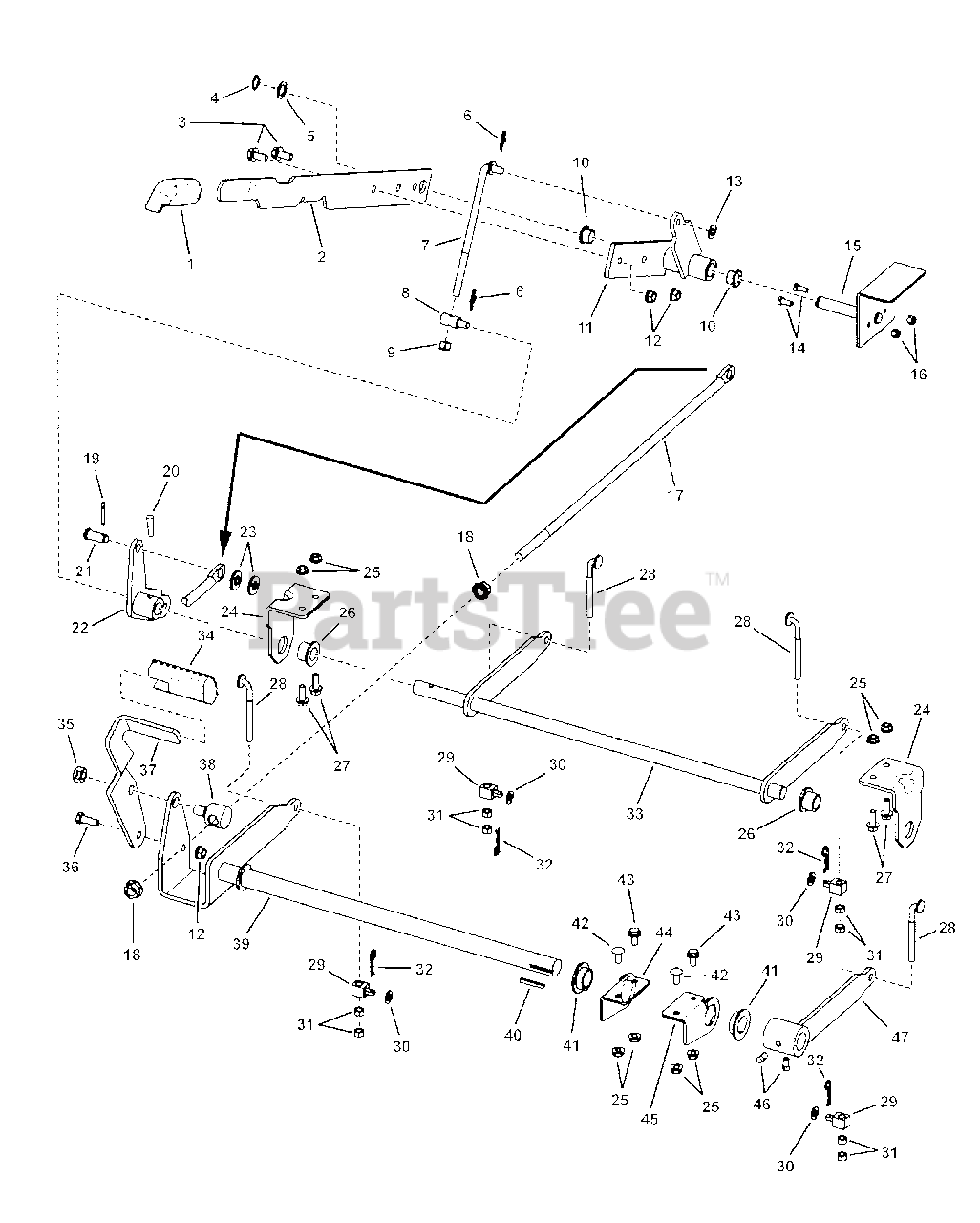

44" & 50" Mower Deck - Lift Assembly Group (ja4450dl) Parts Diagram

  • Title

1

Simplicity 1722302SM

GRIP

$8.49

$

In Stock, Qty 11

0

2

Simplicity 7300037SM

HANDLE, Deck Lift

$25.99

$

Usually ships in 2-12 days

0

3

Simplicity 7091588SM

CAPSCREW, Hex Head, Whiz Lock, Flange, 3/8C X3/4 GR5 YZ
(Superseded to 703955)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 7010739SM

RETAINING RING, Extension, 5/8

$3.49

$

In Stock, only 2 left!

0

5

Simplicity 7091628SM

WASHER, .64X.99X.05 YZ

$4.49

$

In Stock, Qty 5

0

6

Simplicity 7091593SM

PIN, Cotter, Self Locking, 3/8, YZ
(Superseded to 703355)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 7100473SM

ROD, Link

$16.99

$

Usually ships in 2-12 days

0

8

Simplicity 7011231SM

SWIVEL, 3/8 w/Thru Hole Special

$11.99

$

Usually ships in 2-12 days

0

9

Simplicity 7091518SM

NUT, Hex Lock Nylon, 3/8F YZ
(Superseded to 703901)

$3.49

$

In Stock, Qty 12

0

10

Simplicity 7072934SM

BUSHING, Teflon Impregnated

$8.49

$

In Stock, Qty 6

0

11

Simplicity 7400095SM

WELD, Handle Lift, Yellow

$104.99

$

Usually ships in 2-12 days

0

12

Simplicity 7091619SM

NUT, Hex Flange Lock, 3/8C YZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

13

Simplicity 1924940SM

WASHER, 3/8 SAE YZ
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 7090072SM

CAPSCREW, Hex Head, 1/4C X5/8 GR5 YZ
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 7400100SM

WELD, Handle Support

$37.99

$

Usually ships in 2-12 days

0

16

Simplicity 7091603SM

NUT, Hex Lock Nylon, 1/4C YZ
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 7100474SM

ROD, Timing

$12.99

$

Usually ships in 2-12 days

0

18

Simplicity 7091544SM

NUT, Hex Flange Lock, 1/2C GR5 YZ

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 7091516SM

PIN, Cotter, 5/32X1 YZ
(Superseded to 703984)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 7092091SM

GROOVE PIN, 1/4 X 1-1/4

$3.49

$

Usually ships in 2-12 days

0

21

Simplicity 7012802SM

CLEVIS PIN, 1/2X1-1/8 YZ

$5.99

$

Usually ships in 2-12 days

0

22

Simplicity 7400101SM

WELD, Link Lift

$70.99

$

Usually ships in 2-12 days

0

23

Simplicity 7091587SM

WASHER, .531X1.062X.121 YZ
(Superseded to 704123)

$4.49

$

In Stock, Qty 15

0

24

Simplicity 7300254SM

BRACKET, Rear Support, RH

$32.99

$

Usually ships in 2-12 days

0

25

Simplicity 1931277SM

NUT, Hex Flange Lock, 5/16C GR5 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

26

Simplicity 7015363SM

BEARING, Powdered Metal

$

$

Not available

27

Simplicity 7091905SM

CAPSCREW, Hex Head, Whiz Lock, Flange, 5/16C X7/8 YZ

$4.49

$

Usually ships in 2-12 days

0

28

Simplicity 7028728SM

ROD, Height Adjust, 3.68"
(Superseded to 703827)

Note: (Long)

$10.99

$

In Stock, Qty 20+

0

29

Simplicity 7073607SM

SWIVEL, Shift Linkage, Powdered Metal

$9.99

$

In Stock, only 2 left!

0

30

Simplicity 7012316SM

WASHER, .39X.72X.054 BZ
(Superseded to 703946)

$3.99

$

In Stock, Qty 10

0

31

Simplicity 7091511SM

NUT, Hex, 5/16C GR5 YZ

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 7091503SM

HAIR PIN, 3/32X1-1/2

$3.99

$

In Stock, Qty 20+

0

33

Simplicity 7400098SM

WELD, Lift Rear, Yellow

$119.99

$

Usually ships in 2-12 days

0

34

Simplicity 1715834SM

RUBBER, Foot Pedal

$15.99

$

Usually ships in 2-12 days

0

35

Simplicity 7091894SM

NUT, Hex Center Lock, 1/2C GR5 YZ
(Superseded to 703894)

$3.49

$

In Stock, Qty 10

0

36

Simplicity 7091304SM

CAPSCREW, Hex Head, 3/8C X1 GR5 YZ
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

37

Simplicity 7300266SM

BRACKET, Foot ASSIST, Yellow

$67.99

$

Usually ships in 2-12 days

0

38

Simplicity 7044858SM

SWIVEL, Timing Rod, Yellow

$55.99

$

Usually ships in 2-12 days

0

39

Simplicity 7400099SM

WELD, Bellcrank, RH, Yellow

$179.99

$

Usually ships in 2-12 days

0

40

Simplicity 7091803SM

KEY, Square, 3/16X1-1/2
(Superseded to 703889)

$4.49

$

In Stock, Qty 5

0

41

Simplicity 7074720SM

BUSHING, Idler, Powdered Metal

$8.49

$

In Stock, Qty 20+

0

42

Simplicity 7091508SM

CARRAIGE BOLT, 5/16C X3/4 GR5 YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

43

Simplicity 7091811SM

CAPSCREW, Hex Head, Whiz Lock, Flange, 5/16C X5/8 GR5 YZ
(Superseded to 703823)

$3.99

$

In Stock, Qty 7

0

44

Simplicity 7300256SM

SUPPORT, Front Deck, RH
(Superseded to 7300256BMYP)

$22.99

$

Usually ships in 2-12 days

0

45

Simplicity 7300257SM

SUPPORT, Front Deck, LH

$17.99

$

Usually ships in 2-12 days

0

46

Simplicity 7090848SM

SHSS, 5/16C X1/2

$10.99

$

In Stock, only 1 left!

0

47

Simplicity 7400102SM

WELD, Front Lift, Yellow

$75.99

$

Usually ships in 2-12 days

0
