2690474 - Simplicity Javelin 50" Zero-Turn Mower, 22hp Briggs & Stratton 50" Mower Deck Group - Housing, Arbors & Blades Group (jav50sub) Parts Diagram

Javelin 50" Zero-Turn Mower, 22hp Briggs & Stratton

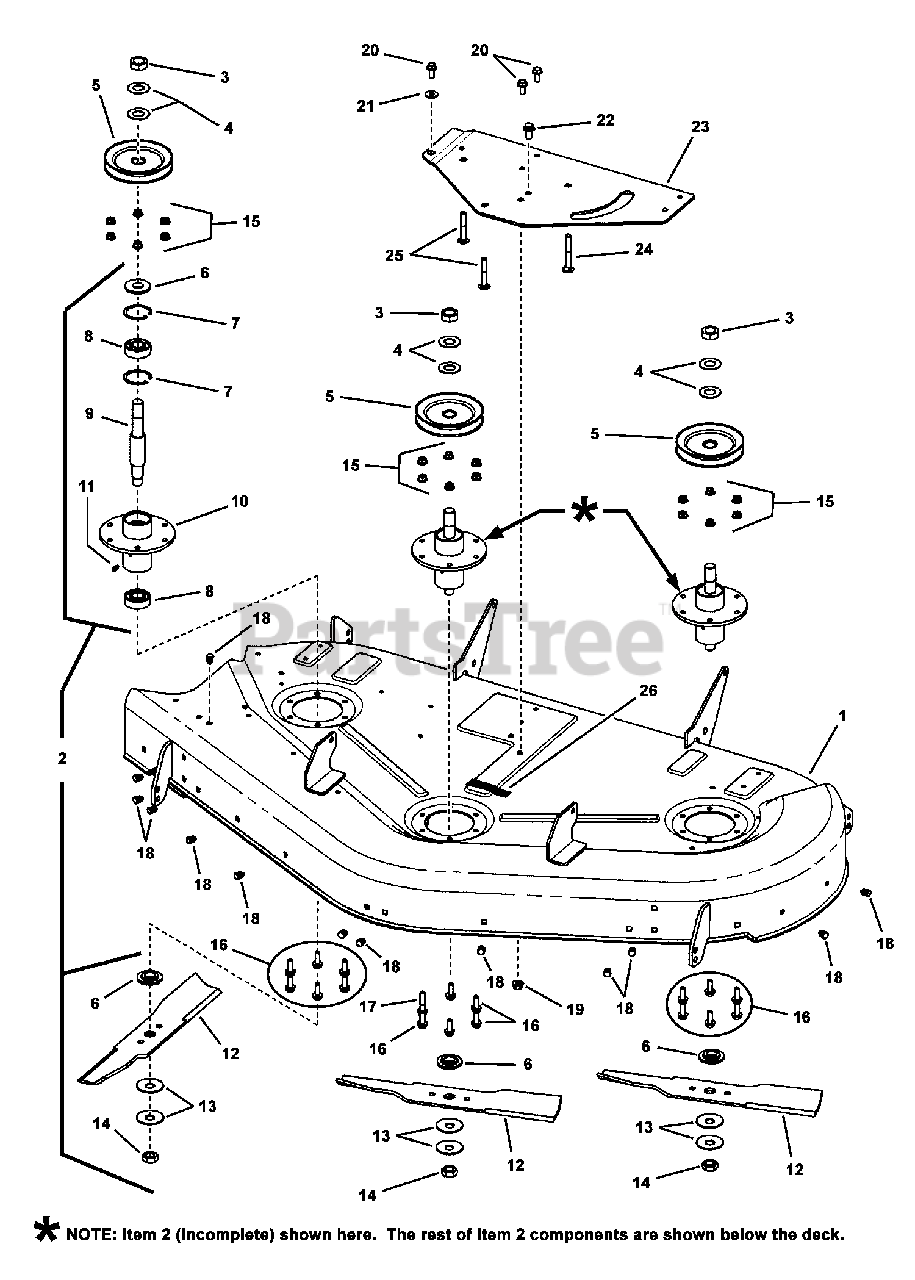

50" Mower Deck Group - Housing, Arbors & Blades Group (jav50sub) Parts Diagram

  • Title

1

Simplicity 7400110SM

DECK, Weldment 50" Mower
(Superseded to 7400079BMYP)

$1745.99

$

Usually ships in 2-12 days

0

2

Simplicity 7500022

GROUP, Spindle, 50" Simplicity

$

$

Not available

3

Simplicity 7074467SM

NUT, Hex, Jam, 3/4F GR8

$4.49

$

In Stock, Qty 14

0

4

Simplicity 7032027SM

WASHER, .77X1.5X.06

$4.49

$

In Stock, Qty 11

0

5

Simplicity 7014544SM

PULLEY, 4.75 O.D.

$62.99

$

In Stock, only 2 left!

0

6

Simplicity 7014407SM

WASHER, Spindle, Powdered Metal

$7.49

$

In Stock, Qty 20+

0

7

Simplicity 7012491SM

RING, Retaining, Extension, 1-3/4

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 7013313SM

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

9

Simplicity 7200001

SHAFT, Spindle
(Superseded to 7200001SM)

$43.99

$

In Stock, Qty 14

0

10

Simplicity 7400000SM

WELD, Spindle

$

$

Not available

11

Simplicity 7010817SM

LUBE FITTING

$4.49

$

In Stock, Qty 17

0

12

Simplicity 1708229ASM

BLADE, 18-1/8 50" Deck
(Superseded to 1716697ASM)

$24.99

$

In Stock, Qty 20+

0

13

Simplicity 7016440SM

WASHER, Bellville, .656X1.875X.086

$8.49

$

In Stock, Qty 20+

0

14

Simplicity 7090658SM

NUT, Hex, Jam, 5/8F ZP
(Superseded to 703904)

$4.99

$

In Stock, Qty 20+

0

15

Simplicity 1931277SM

NUT, Hex Flange Lock, 5/16C GR5 YZ
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

16

Simplicity 7091905SM

CAPSCREW, Hex Head, Whiz Lock, Flange, 5/16C X7/8 YZ

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 7091602SM

CAPSCREW, Hex Head, Whiz Lock, Flange, 5/16C X1-1/2 GR5 YZ

$3.99

$

In Stock, only 4 left!

0

18

Simplicity 7046780SM

PLUG, Hole, Polyethelene

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 7091619SM

NUT, Hex Flange Lock, 3/8C YZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 13

0

20

Simplicity 1664847SM

CAPSCREW, Hex Head Flange Taptite, 5/16C X3/4 YZ
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 7091130SM

WASHER, .327X.875X.09 BZ

$3.99

$

In Stock, only 2 left!

0

22

Simplicity 7091588SM

CAPSCREW, Hex Head, Whiz Lock, Flange, 3/8C X3/4 GR5 YZ
(Superseded to 703955)

$4.49

$

In Stock, Qty 9

0

23

Simplicity 7300137SM

BRACKET, Idler Pulley, 44/50"

$93.99

$

Usually ships in 2-12 days

0

24

Simplicity 7092000SM

CARRIAGE BOLT, 3/8C X2-3/4 GR5 YZ

$4.49

$

Usually ships in 2-12 days

0

25

Simplicity 7900009SM

CARRAIGE BOLT, 3/8-16 X 2-1/4, GR5

$3.99

$

In Stock, Qty 11

0

26

Simplicity 7100605SM

PAD, Rubber Adhesive

$

$

Not available
