2690479 - Simplicity Cobalt 61" Zero-Turn Mower, 27hp Kohler 61" Mower Deck - Striping Roller Bar Parts Diagram

Cobalt 61" Zero-Turn Mower, 27hp Kohler

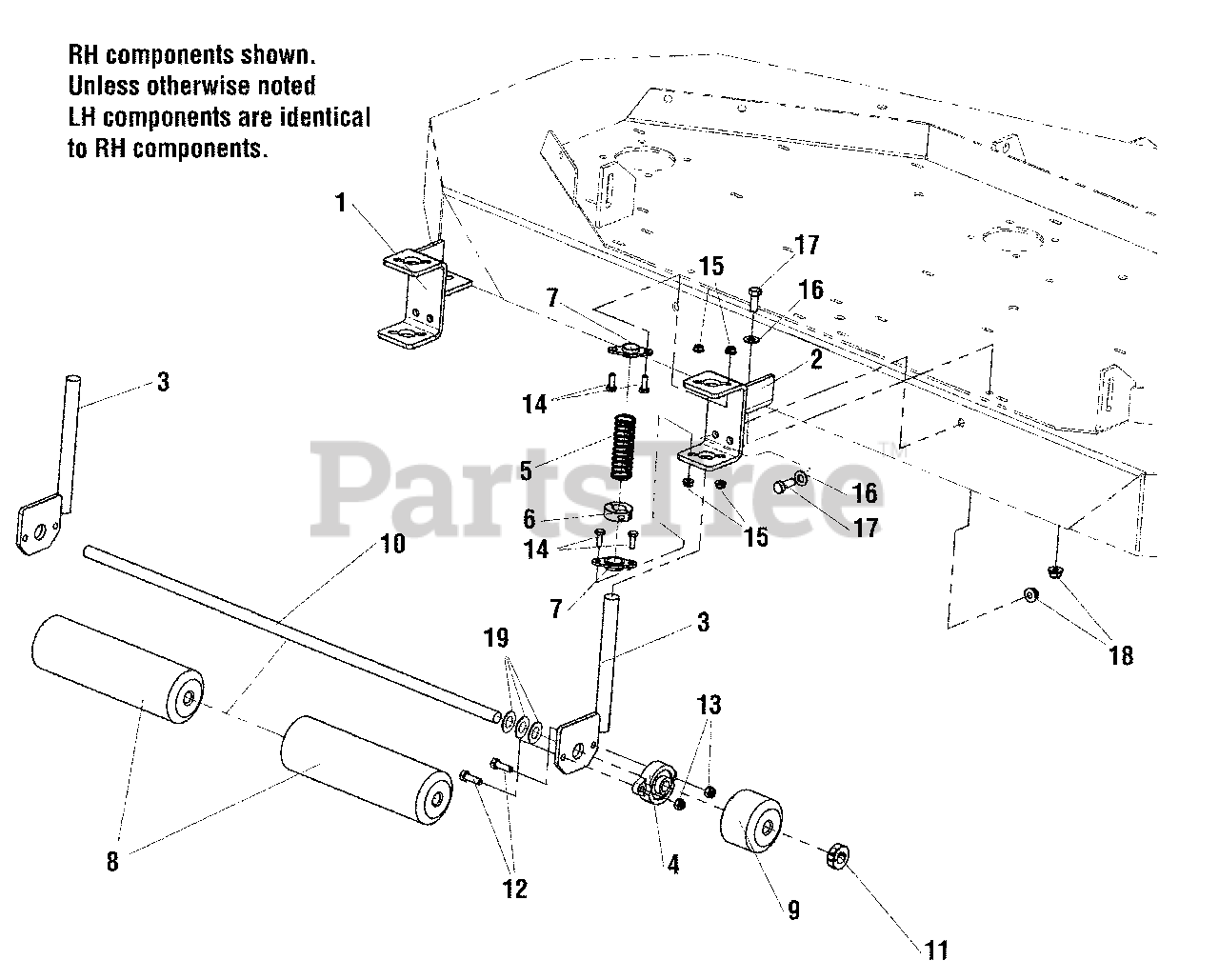

61" Mower Deck - Striping Roller Bar Parts Diagram

  • Title

1

Simplicity 5401299C

WELD, ROLLER MT, COBALT - RH - ORANGE
(Superseded to 5401299CSM)

$50.99

$

In Stock, only 1 left!

0

2

Simplicity 5401298C

WELD, ROLLER MT, COBALT - LH - ORANGE
(Superseded to 5401298CSM)

$50.99

$

Usually ships in 2-12 days

0

3

Simplicity 5401301C

WELD, ROLLER SLIDE
(Superseded to 5401301CSM)

$31.99

$

In Stock, only 2 left!

0

4

Simplicity 5022846

BEARING, FLANGE, 5/8
(Superseded to 5022846SM)

$51.99

$

In Stock, Qty 20+

0

5

Simplicity 5022401

SPRING, COMPRESSION
(Superseded to 5022401SM)

$12.99

$

In Stock, only 3 left!

0

6

Simplicity 5020594

COLLAR, 3/4" DOUBLE SPLIT
(Superseded to 5020594SM)

$19.99

$

In Stock, only 4 left!

0

7

Simplicity 5023155

BUSHING, FLANGE
(Superseded to 5023155SM)

$11.99

$

In Stock, Qty 20+

0

8

Simplicity 5020785

ROLLER, DECK
(Superseded to 5020785SM)

$29.99

$

In Stock, Qty 8

0

9

Simplicity 5100382

ROLLER, PLASTIC, .64 X 3.00 X 2.25
(Superseded to 5100382SM)

$30.99

$

Usually ships in 2-12 days

0

10

Simplicity 5401302

SHAFT, 5/8 X 28.88
(Superseded to 5401302SM)

$28.99

$

Usually ships in 2-12 days

0

11

Simplicity 5020441

COLLAR, 5/8" SPLIT
(Superseded to 5020441SM)

$14.99

$

In Stock, only 4 left!

0

12

Simplicity 5025011X8

BOLT, 5/16-18 X 1" GD5
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 5025057

NUT 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

14

Simplicity 5025010X6

BOLT, 1/4-20 X .75 NA
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 5

0

16

Simplicity 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 2 left!

0

18

Simplicity 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 5025281

WASHER, 5/8" SAE
(Superseded to 5025281SM)

$3.99

$

Usually ships in 2-12 days

0
