2690479 - Simplicity Cobalt 61" Zero-Turn Mower, 27hp Kohler Fuel Supply Hose Group & Tank Replacement Parts Group Parts Diagram

Cobalt 61" Zero-Turn Mower, 27hp Kohler

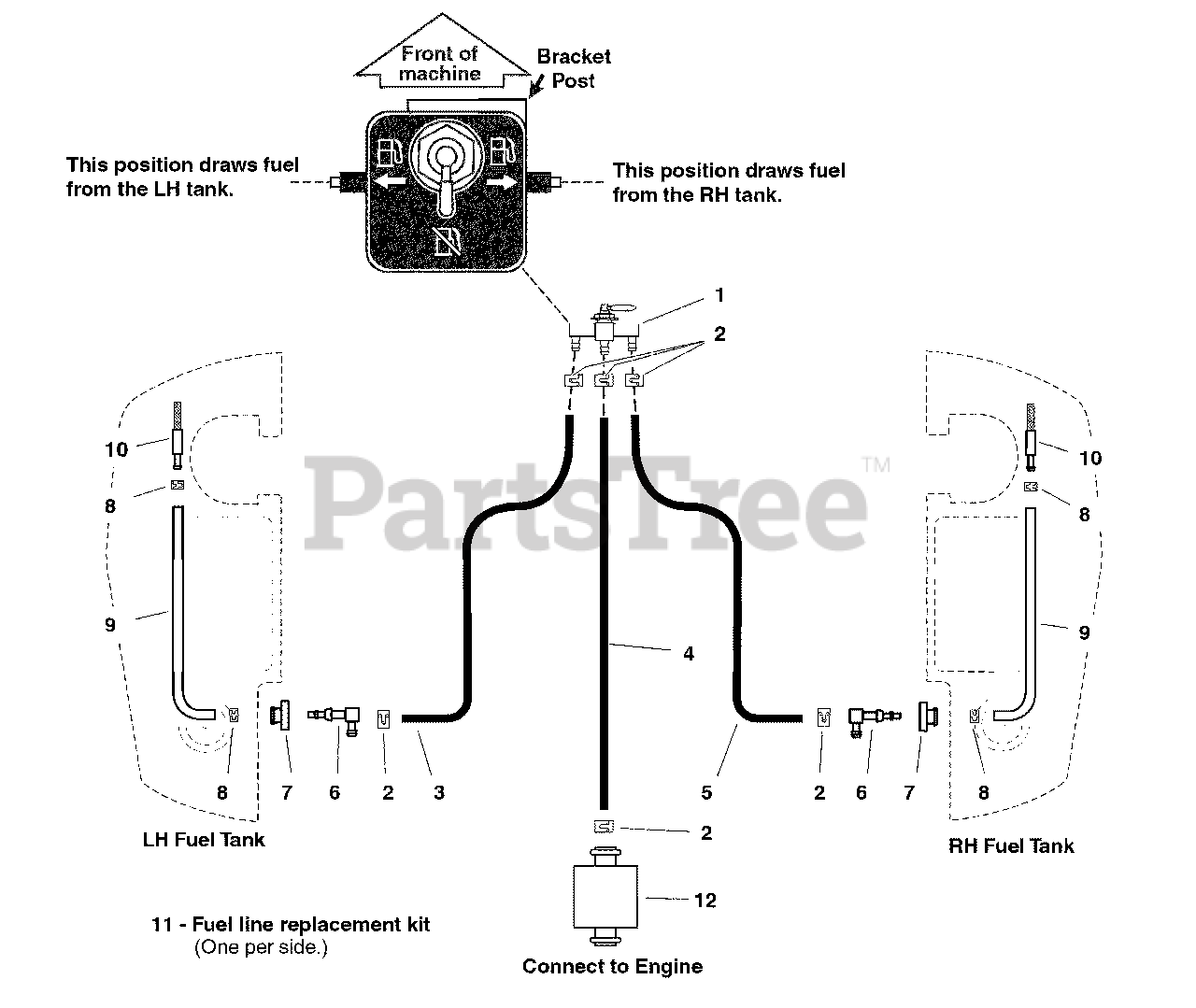

Fuel Supply Hose Group & Tank Replacement Parts Group Parts Diagram

  • Title

1

Simplicity 5023358SM

VALVE, FUEL, STR. OUTLET

$51.99

$

In Stock, only 3 left!

0

2

Simplicity 5020835SM

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 5050831X35SM

HOSE, 1/4" FUEL, 35.00"

$19.99

$

Usually ships in 2-12 days

0

4

Simplicity 5050831X16SM

HOSE, 1/4" FUEL, 16.00"

Note: (Kawasaki model only.)

$8.99

$

Usually ships in 2-12 days

0

5

Simplicity 5050831X10SM

HOSE, 1/4" FUEL, 10.00"

Note: (Kohler model only.)

$

$

Not available

6

Simplicity 5023061SM

ELBOW FITTING

$11.99

$

In Stock, only 2 left!

0

7

Simplicity 1726400SM

BUSHING-FUEL TANK RED RUBBER (SV)
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

8

Simplicity 5020835SM

HOSE CLAMP, INTERNAL
(Superseded to 691038)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 5050925X26

HOSE 26"
(Superseded to 5300047SM)

$56.99

$

In Stock, only 1 left!

0

10

Simplicity 5023067SM

SCREEN FITTING

$14.99

$

In Stock, only 2 left!

0

11

Simplicity 5300047SM

FUEL LINE REPLACEMENT KIT

Note: (Includes Ref. Nos 6, 7, 8, 9, and 10.)

$56.99

$

In Stock, only 1 left!

0

12

Simplicity 5021178X3

FUEL FILTER (SV)
(Superseded to 5021178X3FS)

$13.99

$

In Stock, only 3 left!

0
