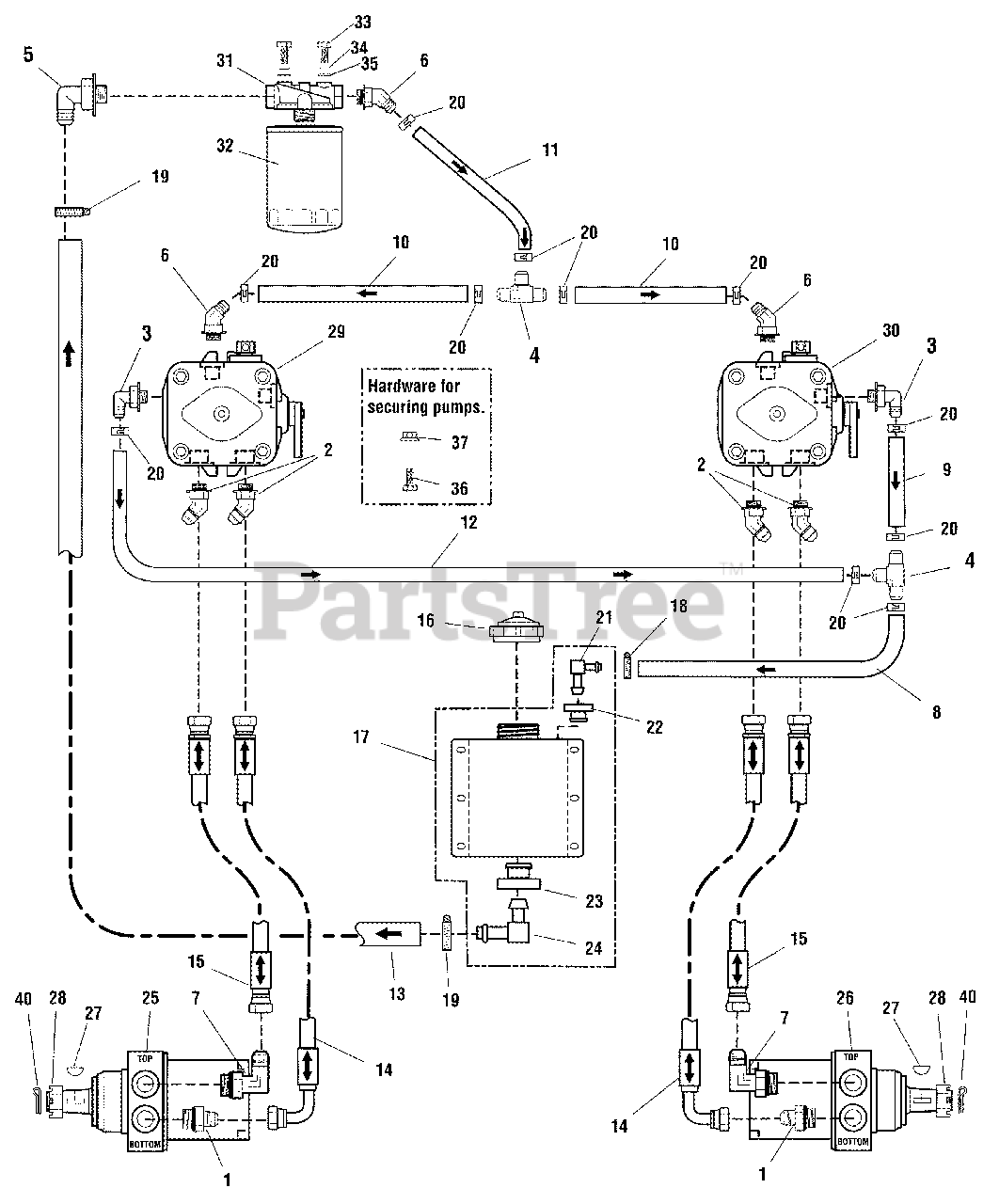

2690479 - Simplicity Cobalt 61" Zero-Turn Mower, 27hp Kohler Hydraulic Group Parts Diagram

Cobalt 61" Zero-Turn Mower, 27hp Kohler

Hydraulic Group Parts Diagram

  • Title

1

Simplicity 5022634SM

ADAPTER, HYDRAULIC

$16.99

$

In Stock, only 4 left!

0

2

Simplicity 5023338SM

FITTING, #8 JIC - #8 O-RING 45DEG.

$38.99

$

In Stock, only 4 left!

0

3

Simplicity 5023267SM

ADAPTER, 90 DEG. 9/16 - 3/8 BARB

$32.99

$

Usually ships in 2-12 days

0

4

Simplicity 5022920SM

FITTING, TEE, 1/2" HOSE

$20.99

$

Usually ships in 2-12 days

0

5

Simplicity 5023346SM

ADAPTER, 90 DEG. 9/16 - 5/8 BARB

$45.99

$

Usually ships in 2-12 days

0

6

Simplicity 5023461SM

ADAPTER, 45, 9/16 - 3/8 BARB

$

$

Not available

7

Simplicity 5023276SM

FITTING, #10 ORING-#8 JIC, 90D

$56.99

$

Usually ships in 2-12 days

0

8

Simplicity 5050860X18SM

HOSE, 3/8" PUSH-LOCK, 18.00"

$

$

Not available

9

Simplicity 5050860X6P5SM

HOSE, 3/8" PUSH-LOCK, 6.50"

$9.49

$

In Stock, only 1 left!

0

10

Simplicity 5050860X6SM

HOSE, 3/8" PUSH-LOCK, 6.00"

$8.99

$

Usually ships in 2-12 days

0

11

Simplicity 5050860X8SM

HOSE, 3/8" PUSH-LOCK, 8.00"

$10.99

$

Usually ships in 2-12 days

0

12

Simplicity 5050860X23SM

HOSE, 3/8" PUSH-LOCK, 23.00"

$20.99

$

Usually ships in 2-12 days

0

13

Simplicity 5050933X24SM

HOSE, 5/8" PUSH-LOCK, 24.00"

$43.99

$

Usually ships in 2-12 days

0

14

Simplicity 5102098SM

HOSE ASSEMBLY, 26.50"
(Superseded to 5102098YP)

$174.99

$

In Stock, only 1 left!

0

15

Simplicity 5102099SM

HOSE ASSEMBLY, 22.50"
(Superseded to 5102099YP)

$99.99

$

In Stock, only 2 left!

0

16

Simplicity 5100017SM

CAP, HYDRAULIC

$25.99

$

In Stock, only 3 left!

0

17

Simplicity 5061712SM

TANK, HYDRAULIC, ASSEMBLY

Note: (Includes Ref. Nos 21,22,23, and 24.)

$155.99

$

In Stock, only 3 left!

0

18

Simplicity 5022922SM

CLAMP, #4 HOSE, STAINLESS

$3.49

$

In Stock, only 1 left!

0

19

Simplicity 5021164SM

CLAMP, #10 HOSE, STAINLESS

$4.49

$

In Stock, only 2 left!

0

20

Simplicity 5023268SM

CLAMP, HOSE

$3.49

$

Usually ships in 2-12 days

0

21

Simplicity 5023118SM

FITTING, ELBOW, 3/8"

$8.49

$

Usually ships in 2-12 days

0

22

Simplicity 1726400SM

GROMMET
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 18

0

23

Simplicity 5023121SM

GROMMET

$15.99

$

In Stock, only 1 left!

0

24

Simplicity 5023119SM

FITTING, ELBOW, 5/8"

$27.99

$

Usually ships in 2-12 days

0

25

Simplicity 5102682

WHEEL MOTOR, LH, 14.5 CUBIC INCH
(Superseded to 5102682YP)

Note: (Requires hardware kit # 5600578)

$1043.99

$

Usually ships in 2-12 days

0

26

Simplicity 5102681

WHEEL MOTOR, RH, 14.5 CUBIC INCH
(Superseded to 5102681YP)

Note: (Requires hardware kit # 5600578)

$1005.99

$

Usually ships in 2-12 days

0

27

Simplicity 5022042X2SM

KEY

$11.99

$

In Stock, Qty 7

0

28

Simplicity 5022042X3SM

NUT, CASTLE, 1-20

$35.99

$

In Stock, only 3 left!

0

29

Simplicity 5100408SM

PUMP, HYDROGEAR 12CC - LH
(Superseded to 5102174YP)

Note: (Includes Ref. No 38.)

$1686.99

$

Usually ships in 2-12 days

0

30

Simplicity 5100409SM

PUMP, HYDROGEAR 12CC - RH
(Superseded to 5102175YP)

Note: (Includes Ref. No 38.)

$1667.99

$

Usually ships in 2-12 days

0

31

Simplicity 5023096SM

FILTER HEAD, HYDRAULIC

$54.99

$

In Stock, only 1 left!

0

32

Simplicity 1719168SM

FILTER, OIL
(Superseded to 1719168YP)

$26.99

$

In Stock, Qty 9

0

33

Simplicity 5025010X6SM

BOLT, 1/4"-20 X 3/4" GD5 YZ

$3.99

$

In Stock, Qty 13

0

34

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 20+

0

35

Simplicity 5025169SM

WASHER, 1/4" LOCK
(Superseded to 5025169FS)

$4.49

$

In Stock, Qty 14

0

36

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4" GD5

$4.49

$

In Stock, Qty 7

0

37

Simplicity 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

In Stock, Qty 15

0

38

Simplicity 5023371SM

SHROUD, FAN

Note: (Not shown.)

$59.99

$

Usually ships in 2-12 days

0

39

Simplicity 5100333SM

FAN, HYDRAULIC PUMP

Note: (Not shown.)

$57.99

$

In Stock, only 1 left!

0

40

Simplicity 5025203X16SM

PIN, COTTER, 1/8" X 2"

$4.49

$

Usually ships in 2-12 days

0
