2690642 - Simplicity Axion 42" Zero-Turn Mower, 20hp Electrical Group - Main Harness 1734127SM Parts Diagram

Axion 42" Zero-Turn Mower, 20hp

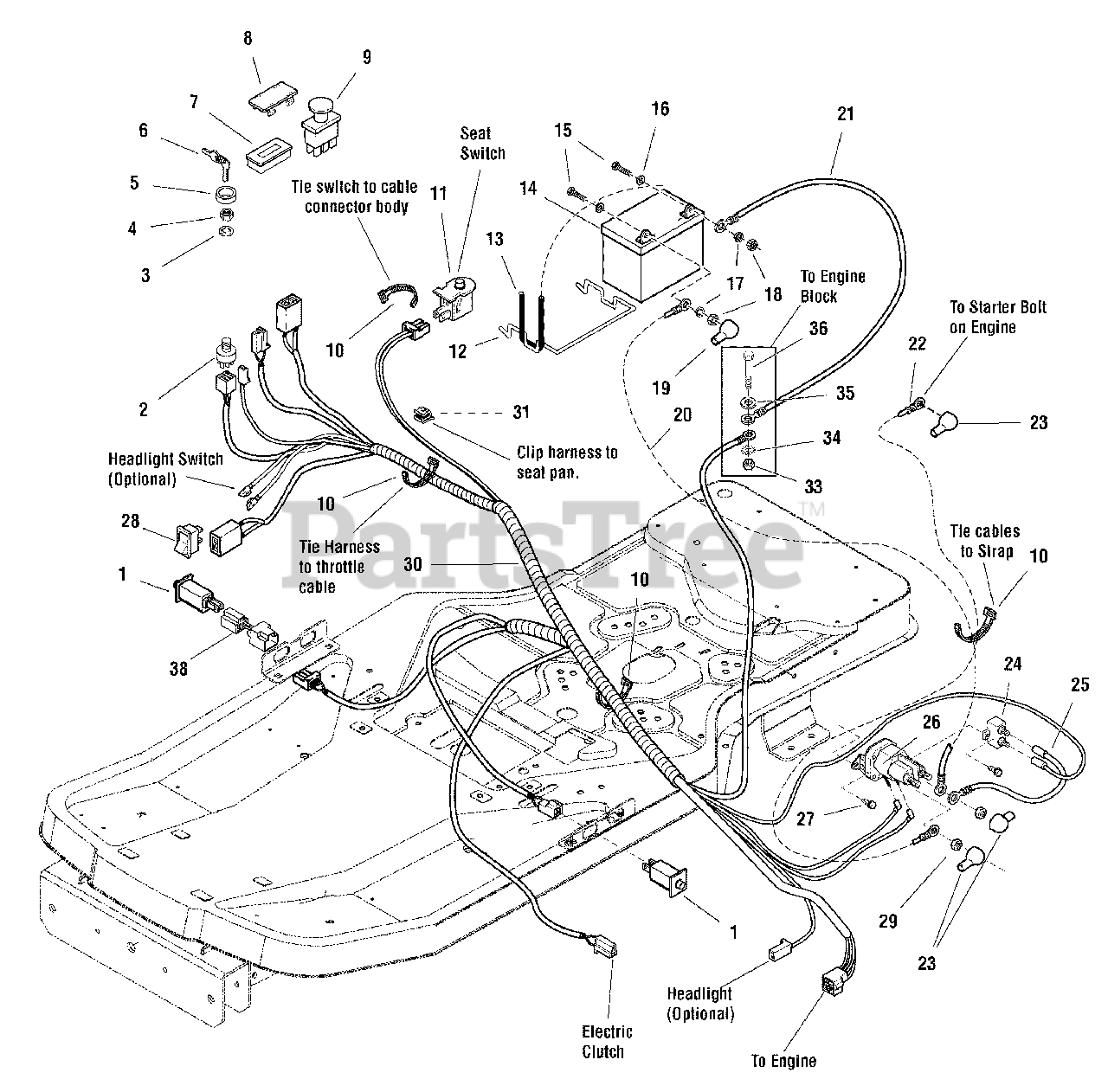

Electrical Group - Main Harness 1734127SM Parts Diagram

  • Title

1

Simplicity 1732006SM

SWITCH, Push Button
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

2

Simplicity 1686734SM

SWITCH ASSEMBLY, Ignition, 5/8-32 6 Pin Indak

Note: (Includes Ref. Nos. 20, 21, 26, & 37)

$32.99

$

In Stock, Qty 20+

0

3

Simplicity 1960547SM

LOCKWASHER, Internal Tooth, 5/8 Thin

$4.49

$

In Stock, Qty 6

0

4

Simplicity 1717549SM

NUT, Hex Flange, 5/8-32 IGN SW Die Cast
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

5

Simplicity 1717550SM

COVER, Ignition Switch
(Superseded to 847150)

$8.49

$

In Stock, Qty 9

0

6

Simplicity 1717163SM

KEYS

Note: (Set of Two)

$8.99

$

In Stock, Qty 14

0

7

Simplicity 1731185SM

HOUR METER, No Alarms

$60.99

$

In Stock, only 1 left!

0

8

Simplicity 1722611SM

PLUG, Hole

$6.99

$

Usually ships in 2-12 days

0

9

Simplicity 1722887SM

SWITCH, PTO Push/Pull Symbols

$33.99

$

In Stock, Qty 20+

0

10

Simplicity 2825094SM

TIE, Self Locking, .184 WD 7.31 LG
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

11

Simplicity 1732005SM

SWITCH, Push Button
(Superseded to 7023354YP)

$12.99

$

Usually ships in 2-12 days

0

12

Simplicity 1667805SM

BRACE, Battery, .19 DIA Wire

$

$

Not available

13

Simplicity 1665872SM

STRAP, Black Rubber, .19 SQ 7.88 OD Battery

$11.99

$

In Stock, only 2 left!

0

14

Simplicity 7100449SM

BATTERY, 12 Volt 6 Cell 230 CCA
(Superseded to 1685215SM)

$

$

Not available

15

Simplicity 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4, G5
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

16

Simplicity 2821319SM

WASHER, 1/4, .27 ID x .62 OD x .05 THK
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

17

Simplicity 2816964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

18

Simplicity 2816622SM

NUT, Hex, 1/4-20 NC-2B
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

19

Simplicity 1677296SM

BOOT, Insulator, Red PVC Warning

$6.49

$

In Stock, only 2 left!

0

20

Simplicity 1716549SM

CABLE, # 6 x 10 LG, Red Two-Ring Terminals
(Superseded to 1752685YP)

$11.99

$

Usually ships in 2-12 days

0

21

Simplicity 1713163SM

CABLE, # 6 X 26 LG, Two-Ring Terminals

$24.99

$

Usually ships in 2-12 days

0

22

Simplicity 1727668SM

CABLE, # 6 x 15 LG, Two-Ring Terminals

$11.99

$

Usually ships in 2-12 days

0

23

Simplicity 1724588SM

COVER, Terminal Red PVC

$4.99

$

Usually ships in 2-12 days

0

24

Simplicity 1665238SM

BREAKER, Circuit, 12 Volt 20 AMP

$14.99

$

In Stock, Qty 12

0

25

Simplicity 1665237SM

WIRE, 12 Gauge, 7.9 LG

$11.99

$

In Stock, only 1 left!

0

26

Simplicity 7075622SM

SOLENOID, Two Terminals, Trombetta
(Superseded to 1755382YP)

$29.99

$

In Stock, Qty 10

0

27

Simplicity 1925003SM

SCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 1734141SM

SWITCH, Electric Height of Cut

$47.99

$

In Stock, Qty 19

0

29

Simplicity 2860750SM

NUT, Hex Keps, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

30

Simplicity 1734127SM

HARNESS, Wiring

$

$

Not available

31

Simplicity 2172434SM

CABLE, Clip

$4.99

$

In Stock, only 2 left!

0

33

Simplicity 1931277SM

NUT, Hex Whiz Lock Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

34

Simplicity 2820427SM

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

35

Simplicity 1919326SM

WASHER, 5/16, .34 ID x 3/4 OD x .06 THK

$4.49

$

In Stock, Qty 18

0

36

Simplicity 1921978SM

CAPSCREW, Hex Head, 5/16-18 x 2, G5
(Superseded to 703867)

$4.99

$

In Stock, Qty 6

0

38

Simplicity 1734025SM

WIRING ASSEMBLY, Jumper All Conditions Shutdown

Note: (Export Models)

$14.99

$

Usually ships in 2-12 days

0
