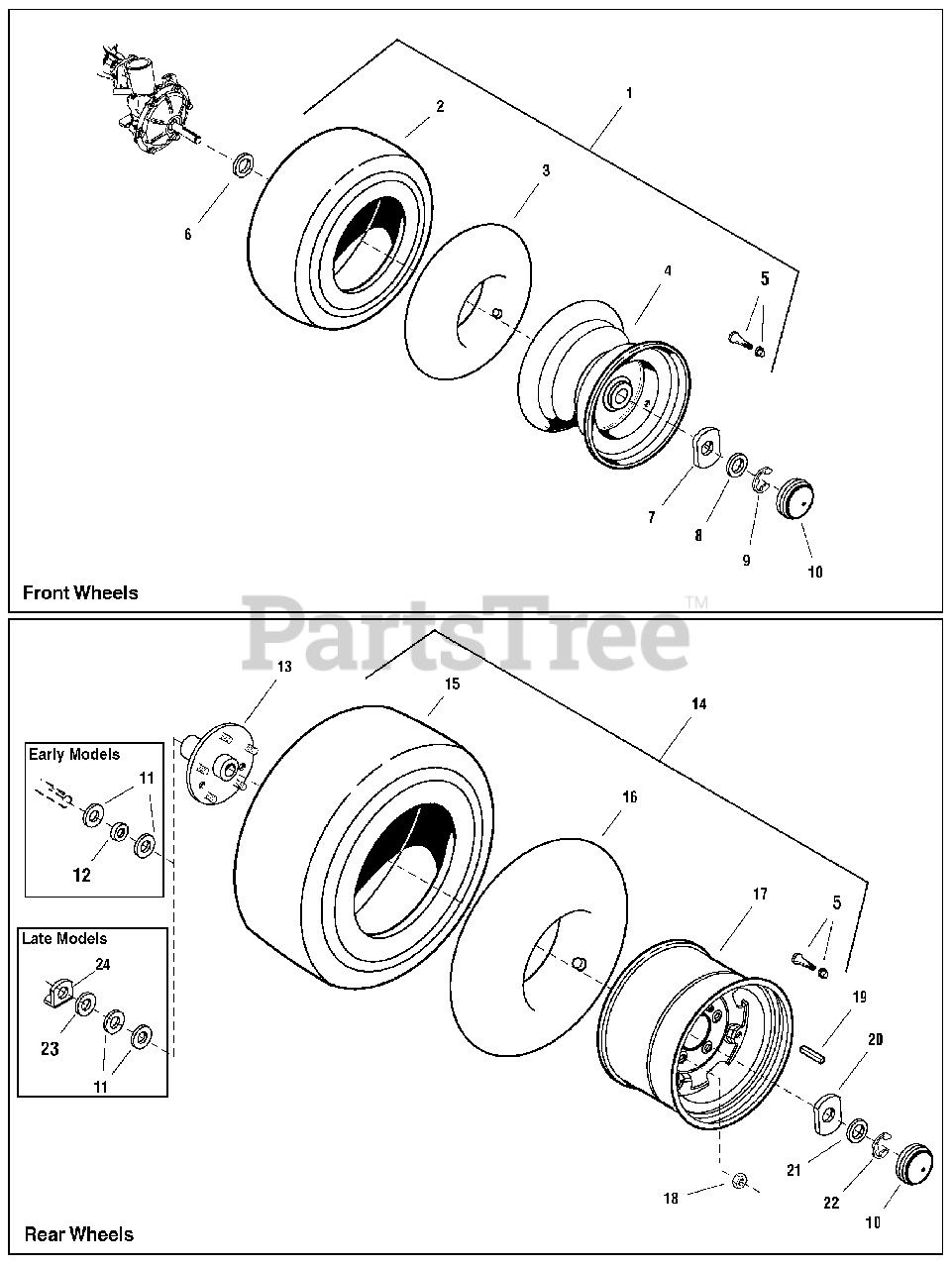

2690744 - Simplicity Conquest 50" Garden Tractor, 23hp Wheels & Tires Group Parts Diagram

Conquest 50" Garden Tractor, 23hp

Wheels & Tires Group Parts Diagram

  • Title

1

Simplicity 1735010SM

WHEEL & TIRE ASSEMBLY

Note: (Includes Ref. Nos. 2, 3, 4 & 5)

$204.99

$

Usually ships in 2-12 days

0

2

Simplicity 1735706SM

TIRE, 16 x 6-1/2-8
(Superseded to 1735010SM)

$204.99

$

Usually ships in 2-12 days

0

3

Simplicity 2153038SM

TUBE, Tire

$38.99

$

Usually ships in 2-12 days

0

4

Simplicity 1733237SM

WHEEL ASSEMBLY

$

$

Not available

5

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$8.49

$

Usually ships in 2-12 days

0

6

Simplicity 2860202SM

WASHER, Flat 3/4 x 1-5/8 x 1/8

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 1722717ASM

WASHER, Flat
(Superseded to 1722717SM)

$7.99

$

In Stock, only 3 left!

0

8

Simplicity 1960114SM

WASHER, 3/4
(Superseded to 703151)

$3.49

$

In Stock, Qty 19

0

9

Simplicity 2827794SM

RING

$3.49

$

In Stock, only 3 left!

0

10

Simplicity 1722676SM

CAP, Hub

$5.49

$

In Stock, Qty 10

0

11

Simplicity 1960701SM

WASHER, 1 x 2-1/4 x 1/8

$6.99

$

In Stock, only 2 left!

0

12

Simplicity 1726089SM

SPACER

Note: (Used on Early Models)

$

$

Not available

13

Simplicity 1721400SM

PLATE & HUB WELDMENT

$

$

Not available

14

Simplicity 1735011SM

WHEEL & TIRE ASSEMBLY

Note: (Includes Ref. Nos. 5, 15, 16 & 17)

$391.99

$

Usually ships in 2-12 days

0

15

Simplicity 1735705SM

TIRE, 23 x 10-1/2-12

$

$

Not available

16

Simplicity 2157638SM

TUBE, Tire

$86.99

$

In Stock, only 2 left!

0

17

Simplicity 1722831SM

WHEEL

$

$

Not available

18

Simplicity 2177725SM

NUT, Hex 7/16-20 For Wheel Bolt

$6.49

$

Usually ships in 2-12 days

0

19

Simplicity 2105337SM

KEY, Hi-Pro 1/4 x 2

$8.99

$

In Stock, Qty 6

0

20

Simplicity 1722726ASM

WASHER, Flat
(Superseded to 1722726SM)

$5.49

$

In Stock, Qty 20+

0

21

Simplicity 1919394SM

WASHER, Flat
(Superseded to 703149)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 2834712SM

RING

$4.99

$

In Stock, only 2 left!

0

23

Simplicity 2860200SM

WASHER, Flat, 1"

Note: (Used on Late Models)

$5.49

$

In Stock, Qty 12

0

24

Simplicity 1737043AYP

BRACKET, Washer Axle

Note: (Used on Late Models)

$14.99

$

Usually ships in 2-12 days

0
