2690912 - Bad Boy 46" Lawn Tractor, 24hp (2010) Controls Group Parts Diagram

46" Lawn Tractor, 24hp

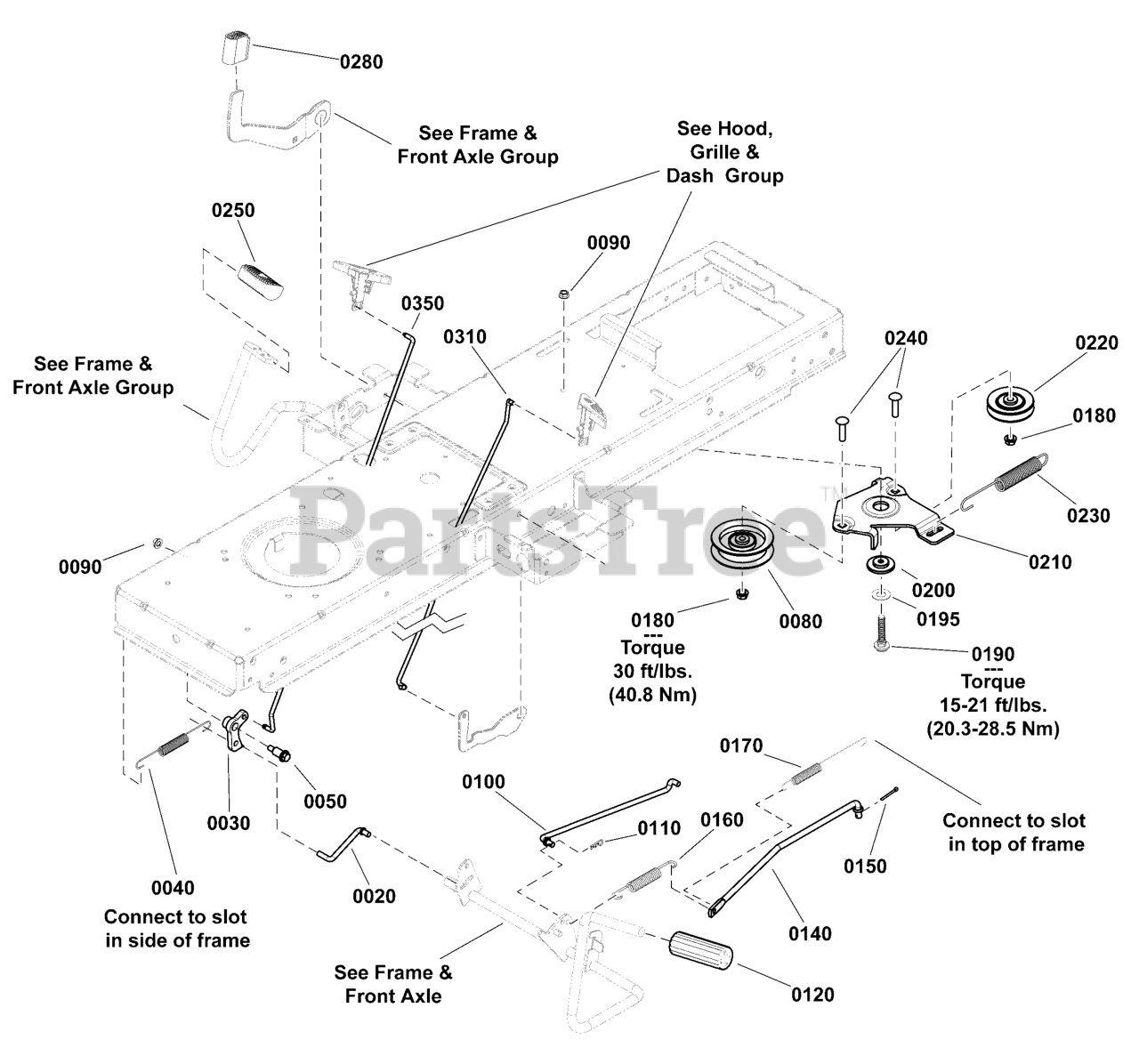

Controls Group Parts Diagram

  • Title
0020

Murray 1727899SM

ROD, Cruise Latch, 5/16 Dia. x 2-13/16 Long

$7.49

$

Usually ships in 2-12 days

0

0030

Murray 1727897SM

LATCH, Cruise

$9.99

$

In Stock, only 1 left!

0

0040

Murray 2159181SM

SPRING, Extension, 9/16 OD x 7-3/4 LG, .049 Wire

$7.49

$

In Stock, only 2 left!

0

0050

Murray 1728976SM

BOLT, Shoulder, 5/16-18 x 1-5/8

$6.49

$

In Stock, only 2 left!

0

0080

Murray 1728000SM

PULLEY, Idler, 3-1/8 OD, 3/8 ID

$18.99

$

Usually ships in 2-12 days

0

0090

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0100

Murray 1727254SM

ROD, Brake Return, 5/16 Dia. x 12-5/8 Long

$15.99

$

Usually ships in 2-12 days

0

0110

Murray 703430

HAIRPIN, Quick, .080 Wire, 1.19LG, Zinc/Clear

$3.49

$

In Stock, Qty 10

0

0120

Murray 1727261SM

PEDAL, Brake Rubber

$9.99

$

Usually ships in 2-12 days

0

0140

Murray 1727253SM

ROD, Brake, 3/8 Dia. x 15-1/8 Long

$16.99

$

Usually ships in 2-12 days

0

0150

Murray 703312

PIN, 3/32 X 3/4, GR5, Cotter, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0160

Murray 1731262SM

SPRING, Extension, 11/16 x 3-3/8

$9.99

$

In Stock, only 1 left!

0

0170

Murray 1721995SM

SPRING, Extension, 5/8 x 6-5/8

$8.49

$

In Stock, only 1 left!

0

0180

Murray 703158

NUT, 3/8-16, Hex Flange, ESNA, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0190

Murray 703800

BOLT, 5/16-18 X 1.0, Short Neck Carriage, ZC/CL

$3.99

$

In Stock, Qty 16

0

0200

Murray 1727935SM

SPACER, Pivot, 0.330 ID, 1.76 OD, .37TH P MTL

$5.99

$

In Stock, only 4 left!

0

0210

Murray 1727894SM

BRACKET, Idler

$32.99

$

Usually ships in 2-12 days

0

0220

Murray 1728001SM

PULLEY, Idler, 3-1/8 OD, 3/8 ID

$18.99

$

In Stock, only 2 left!

0

0230

Murray 1729620SM

SPRING, .98 OD X 7.52" LG, .11 Wire, Extension, Blk

$8.49

$

In Stock, only 1 left!

0

0240

Murray 1931352SM

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/2

$4.49

$

In Stock, Qty 10

0

0250

Murray 1721675SM

PAD, Forward Foot Pedal, Black Rubber

$8.99

$

Usually ships in 2-12 days

0

0280

Murray 1727259SM

PAD, Reverse Foot Pedal, Black Rubber

$8.49

$

Usually ships in 2-12 days

0

0310

Murray 1739876YP

ROD, Parking Brake, 1/4 Dia. x 16-3/8 Long

$16.99

$

Usually ships in 2-12 days

0

0350

Murray 1739877YP

ROD, Cruise, 1/4 Dia. x 17

$12.99

$

Usually ships in 2-12 days

0
