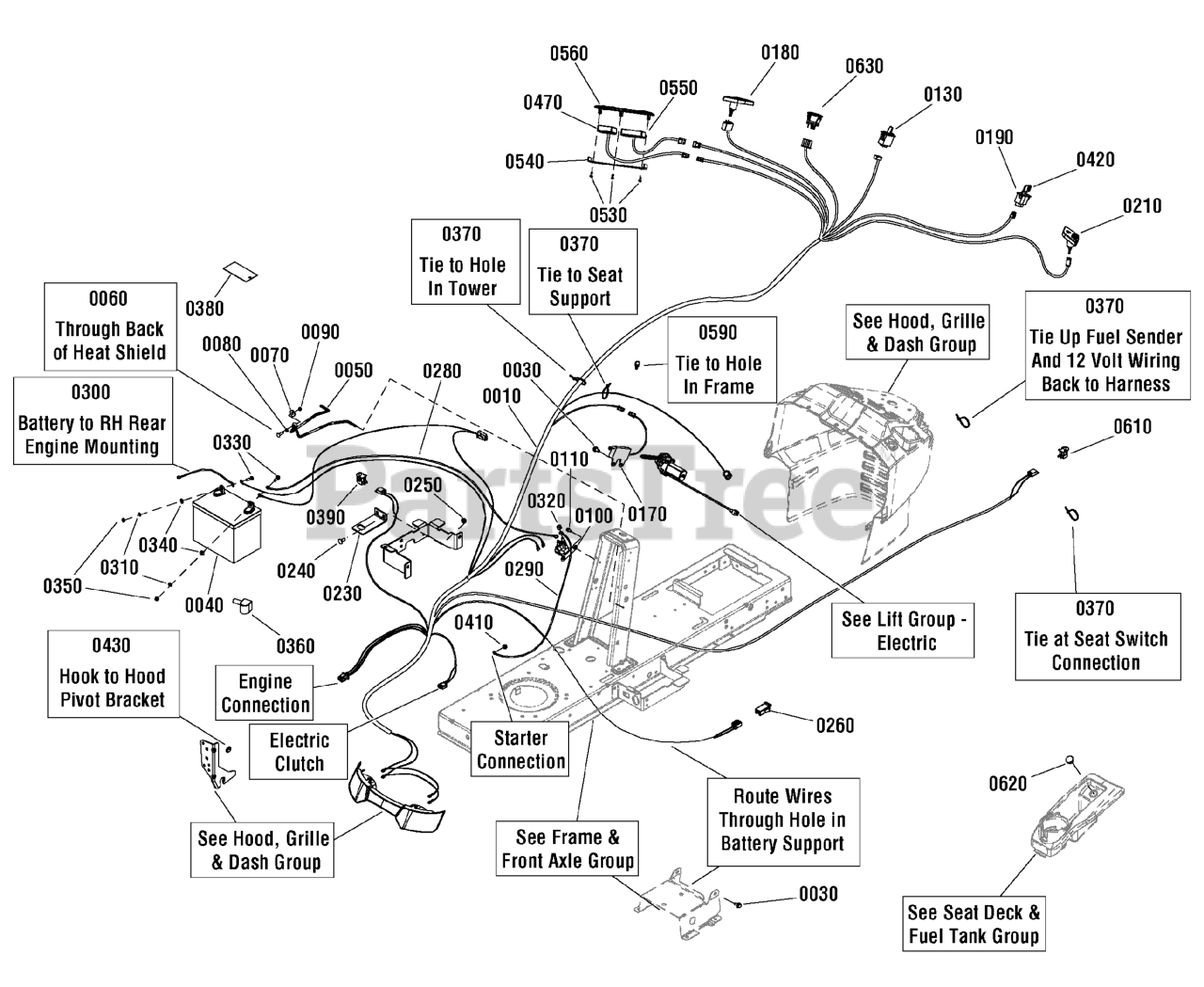

2690912 - Bad Boy 46" Lawn Tractor, 24hp (2010) Electrical Group Parts Diagram

46" Lawn Tractor, 24hp

Electrical Group Parts Diagram

  • Title

0010

Murray 1750459YP

WIRING HARNESS

$

$

Currently unavailable

0030

Murray 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0040

BATTERY, 12 VOLT, 230 CCA

$

$

Not available

0050

Murray 1730007SM

ROD, Battery Hold Down

$27.99

$

Usually ships in 2-12 days

0

0060

Murray 1931318SM

BOLT, Carriage, 1/4-20 x 7/8 G5

$4.49

$

In Stock, only 3 left!

0

0070

Murray 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, only 2 left!

0

0080

Murray 1960518SM

PUSHNUT, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 17

0

0090

Murray 1920397SM

NUT, Hex Lock ESNA Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0100

Murray 1728963SM

SOLENOID, 12V
(Superseded to 1755381YP)

$24.99

$

In Stock, only 1 left!

0

0110

Murray 1925003SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

0130

Murray 1738381YP

SWITCH, HEIGHT OF CUT

$38.99

$

In Stock, only 4 left!

0

0160

Murray 1727185SM

KEY, With Hang Tag for RMO Module
(Superseded to 1726557SM)

$5.49

$

In Stock, Qty 20+

0

0170

Murray 1738724YP

SENSOR, Electric Height of Cut

$64.99

$

Usually ships in 2-12 days

0

0180

Murray 1738982YP

SWITCH, PTO

$43.99

$

In Stock, only 1 left!

0

0190

Murray 1726556SM

SWITCH, RMO Module Only
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

0210

Murray 1738983YP

SWITCH, Light

$39.99

$

Usually ships in 2-12 days

0

0230

Murray 1728026AYP

SUPPORT, RMO Switch

$

$

Currently unavailable

0240

Murray 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0250

Murray 1931277SM

NUT, Hex Flange Whiz Lock Small, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0260

Murray 1732006YP

SWITCH, Push Button

$

$

Currently unavailable

0280

Murray 1716549SM

CABLE, # 6 x 10 LG, Red Two-Ring Terminals
(Superseded to 1752685YP)

$11.99

$

Usually ships in 2-12 days

0

0290

Murray 1721830SM

CABLE,#6 x 25

$19.99

$

In Stock, only 1 left!

0

0300

Murray 1713163SM

CABLE, # 6 X 26 LG, Two-Ring Terminals

$24.99

$

Usually ships in 2-12 days

0

0310

Murray 2816964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

0320

Murray 2860750SM

NUT, Hex Keps, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

0330

Murray 2823341SM

CAPSCREW, Hex 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 6

0

0340

Murray 2821319SM

WASHER, Flat, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

0350

Murray 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

0360

Murray 1677296SM

BOOT, Insulator, Red PVC Warning

$6.49

$

In Stock, only 2 left!

0

0370

Murray 2825094SM

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0380

Murray 1725403YP

TAG, Battery Charging Warranty

$10.99

$

Usually ships in 2-12 days

0

0390

Murray 1732004SM

SWITCH, Push Button (NO)

$8.99

$

In Stock, Qty 8

0

0410

Murray 1960294SM

NUT, Hex Flange Whiz Lock Small, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

0420

Murray 1726557SM

KEY, RMO Module Plastic

$5.49

$

In Stock, Qty 20+

0

0430

Murray 2172434SM

CABLE, Clip

$4.99

$

In Stock, only 2 left!

0

0470

Murray 1738985YP

GAGE, Electric Height of Cut

$55.99

$

Usually ships in 2-12 days

0

0530

Murray 1739329YP

SCREW, Washer Head, 5MM x 12MM Long

$4.49

$

Usually ships in 2-12 days

0

0540

Murray 1739369AYP

BRACKET, Instrument Panel

$14.99

$

Usually ships in 2-12 days

0

0550

Murray 1750212YP

METER, Service Indicator

$65.99

$

Usually ships in 2-12 days

0

0560

Murray 1739307YP

BEZEL, Instrument Panel

$10.99

$

Usually ships in 2-12 days

0

0590

Murray 1730268SM

CLIP, Hose

$3.99

$

Usually ships in 2-12 days

0

0610

Murray 1732005SM

SWITCH, Push NC (Seat)
(Superseded to 7023354YP)

$12.99

$

Usually ships in 2-12 days

0

0620

Murray 1732007SM

PLUG, Hole

$4.49

$

Usually ships in 2-12 days

0

0630

Murray 1737959YP

SWITCH, Key
(Superseded to 7600215YP)

$64.99

$

Usually ships in 2-12 days

0
