2690912 - Bad Boy 46" Lawn Tractor, 24hp (2010) Frame & Front Axle Group Parts Diagram

46" Lawn Tractor, 24hp

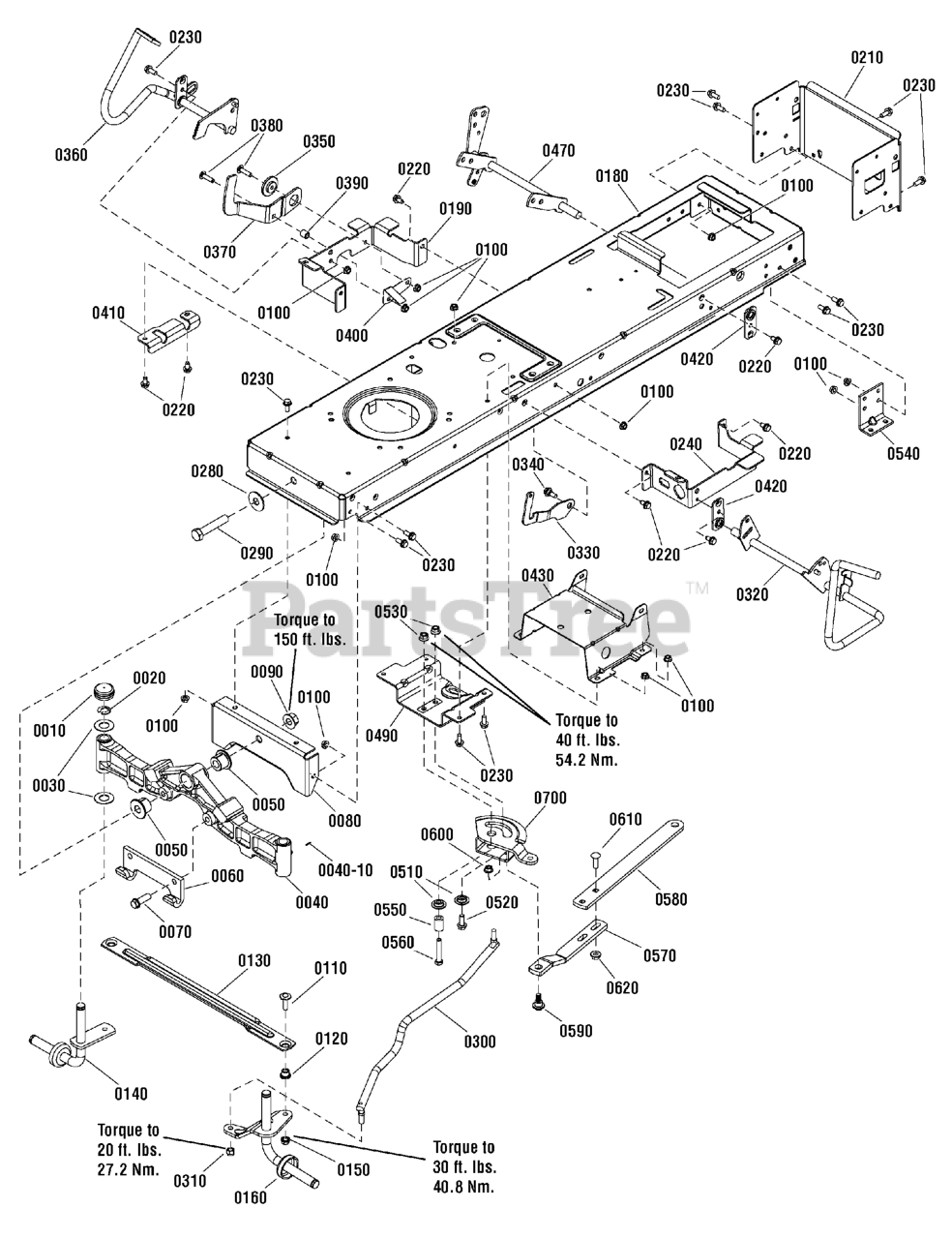

Frame & Front Axle Group Parts Diagram

  • Title

0010

Murray 1734135SM

CAP, Hub

$5.99

$

In Stock, Qty 14

0

0020

Murray 1611710SM

RING, Klipring Extension

$4.49

$

In Stock, Qty 17

0

0030

Murray 1960160SM

WASHER, 3/4

$4.99

$

In Stock, Qty 20+

0

0040

Murray 1728018SM

AXLE, Front Iron Casting Machined
(Superseded to 1756386YP)

$185.99

$

Usually ships in 2-12 days

0

0040-10

Murray 1704314SM

FITTING, Zerk
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0050

Murray 1730186SM

BUSHING, Axle Pivot

$6.99

$

Usually ships in 2-12 days

0

0060

Murray 1721918ASM

HOOK, "J"

$31.99

$

In Stock, only 2 left!

0

0070

Murray 1960652SM

CAPSCREW, 7/16-14 x 2

$5.49

$

In Stock, only 2 left!

0

0080

Murray 1727902ASM

PLATE, Axle Support
(Superseded to 1727902SM)

$43.99

$

Usually ships in 2-12 days

0

0090

Murray 2860646SM

NUT, Hex Flange Two-Way Lock, 5/8-11

$10.99

$

In Stock, Qty 8

0

0100

Murray 1931277SM

NUT, Hex, Flange Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0110

Murray 1960032SM

SCREW, Hex Head, 3/8-16 x 1 1/4

$5.49

$

In Stock, Qty 9

0

0120

Murray 1731912SM

BUSHING, Powdered Metal

$4.49

$

In Stock, Qty 9

0

0130

Murray 1728080ASM

ROD, Tie

$35.99

$

In Stock, only 1 left!

0

0140

Murray 1727872ASM

SPINDLE & CUP ASSEMBLY, R.H.

$98.99

$

In Stock, Qty 6

0

0150

Murray 1930645SM

NUT, Hex, Flange, Locking, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0160

Murray 1727873ASM

SPINDLE & ARM ASSEMBLY, L.H.

$101.99

$

In Stock, only 1 left!

0

0180

Murray 1750275YP

FRAME

$222.99

$

Usually ships in 2-12 days

0

0190

Murray 1727904ASM

SUPPORT, Front Footrest R.H.
(Superseded to 1759842BMYP)

$39.99

$

Usually ships in 2-12 days

0

0210

Murray 1738229YP

SUPPORT, Rear Frame

$41.99

$

In Stock, only 1 left!

0

0220

Murray 1930601SM

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0230

Murray 1930591SM

CAPSCREW, Hex Head, Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 12

0

0240

Murray 1727905ASM

SUPPORT, Front Footrest L.H.
(Superseded to 885536AYP)

$25.99

$

Usually ships in 2-12 days

0

0280

Murray 1960035SM

WASHER, Flat, 5/8

$4.49

$

In Stock, Qty 13

0

0290

Murray 2860744SM

CAPSCREW, Hex Head, 5/8-11 x 3 1/4

$8.49

$

Usually ships in 2-12 days

0

0300

Murray 1727868SM

LINK, Drag

$

$

Not available

0310

Murray 1960747SM

NUT, Hex Nylock, 3/8-24
(Superseded to 703901)

$3.49

$

In Stock, Qty 14

0

0320

Murray 1736404AYP

PEDAL ASSEMBLY, Brake
(Superseded to 772383)

$98.99

$

Usually ships in 2-12 days

0

0330

Murray 1735595SM

LATCH, Brake Lock

$

$

Currently unavailable

0340

Murray 1729576SM

BOLT, Shoulder, 5/16-18 x 15/32
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0350

Murray 1727935SM

SPACER, Pivot

$5.99

$

In Stock, only 4 left!

0

0360

Murray 1736714AYP

PEDAL ASSEMBLY, Forward

$89.99

$

Usually ships in 2-12 days

0

0370

Murray 1727246SM

PEDAL, Reverse

$20.99

$

Usually ships in 2-12 days

0

0380

Murray 1960223SM

BOLT, Carriage, 5/16-18 x 1 1/4
(Superseded to 703446)

$4.49

$

In Stock, only 1 left!

0

0390

Murray 1728024SM

SPACER, Foot Pedal

$4.99

$

Usually ships in 2-12 days

0

0400

Murray 1728025SM

ACTUATOR, RMO Switch
(Superseded to 1728025BMYP)

$6.49

$

Usually ships in 2-12 days

0

0410

Murray 1727909SM

BRACKET, Pedal Pivot
(Superseded to 885591YP)

$22.99

$

Usually ships in 2-12 days

0

0420

Murray 1727911SM

PLATE, Bearing
(Superseded to 1727911ASM)

$12.99

$

Usually ships in 2-12 days

0

0430

Murray 1727282SM

SUPPORT, Battery

$30.99

$

Usually ships in 2-12 days

0

0470

Murray 1737957YP

LIFT SHAFT ASSEMBLY

$59.99

$

In Stock, Qty 5

0

0490

Murray 1727940SM

BRACKET, Sector Support

$

$

Not available

0510

Murray 1728122SM

SPACER, Sector Gear

$5.49

$

In Stock, Qty 20+

0

0520

Murray 1934654SM

SCREW, Hex Flange, Whiz Lock, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, Qty 17

0

0530

Murray 1931211SM

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0540

Murray 1727903SM

SUPPORT, Transmission

$10.99

$

In Stock, only 4 left!

0

0550

Murray 1739617YP

SPACER, SECTOR

$

$

Currently unavailable

0560

Murray 1922130SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 8

0

0570

Murray 1739721YP

LINK, FRONT CONTROL

$

$

Currently unavailable

0580

Murray 1739722YP

LINK, REAR CONTROL

$

$

Currently unavailable

0590

Murray 009X81MA

Bolt, Shoulder

$8.49

$

Usually ships in 2-12 days

0

0600

Murray 015X87MA

Nut. Flanged Lock
(Superseded to 015X87ZMA)

$4.49

$

In Stock, only 1 left!

0

0610

Murray 1960268SM

CARRIAGE BOLT, 3/8-16 x 1-1/4, G5

$4.49

$

In Stock, Qty 14

0

0620

Murray 1928352SM

NUT, Hex Flange 3/8-16 Whiz Lock Large
(Superseded to 703793)

$4.49

$

In Stock, Qty 9

0

0700

Murray 1739330YP

WELD, STEERING GEAR

$

$

Currently unavailable
