2690912 - Bad Boy 46" Lawn Tractor, 24hp (2010) Seat Deck & Fuel Tank Group Parts Diagram

46" Lawn Tractor, 24hp

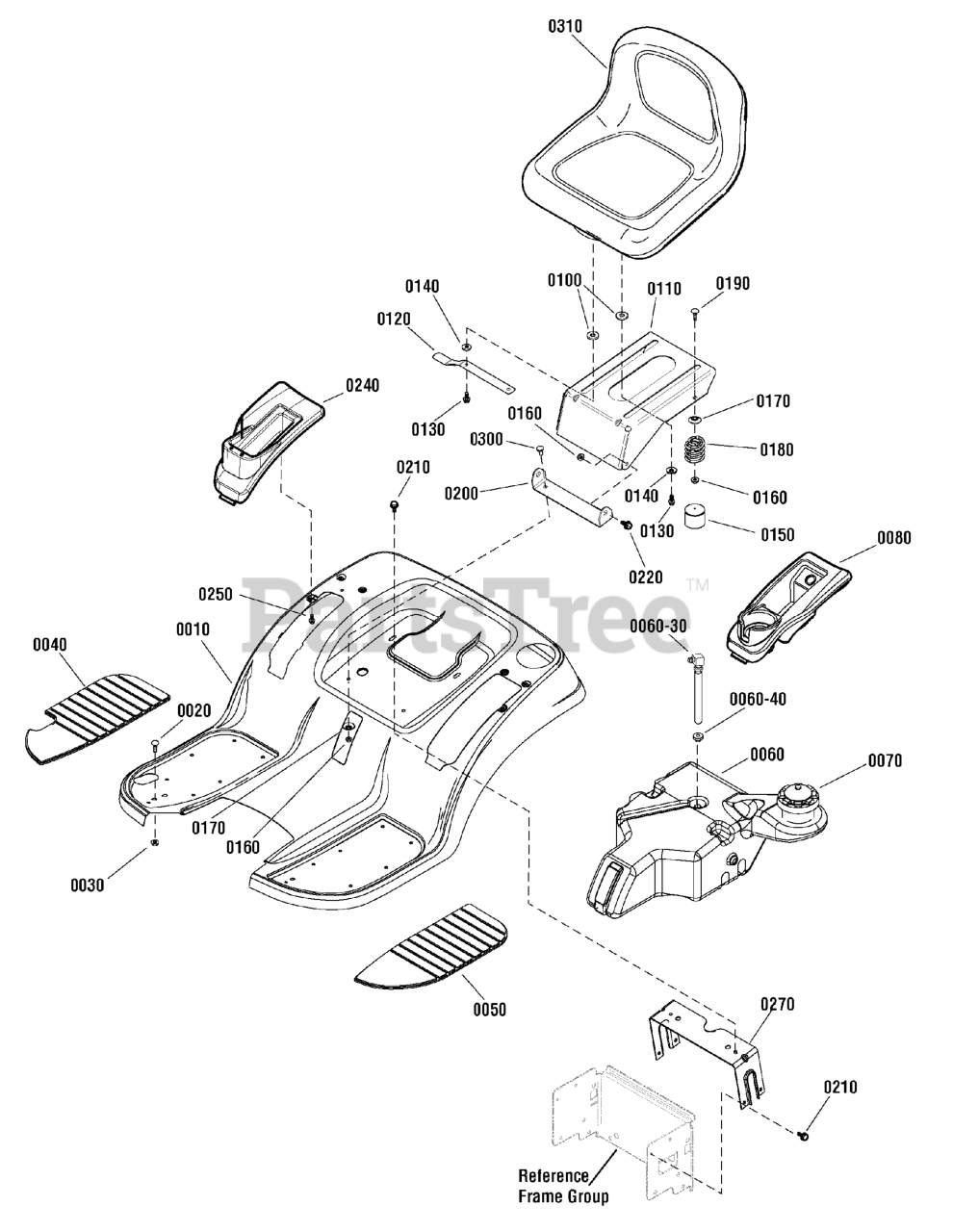

Seat Deck & Fuel Tank Group Parts Diagram

  • Title

0010

Murray 1727264BQYP

DECK, Seat

$

$

Currently unavailable

0020

Murray 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0030

Murray 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0040

Murray 1728007SM

PAD, Footrest, Right

$20.99

$

In Stock, only 1 left!

0

0050

Murray 1728006SM

PAD, Footrest, Left

$21.99

$

In Stock, only 4 left!

0

0060

Murray 1738932YP

TANK, Fuel

$295.99

$

In Stock, only 1 left!

0

0060-30

Murray 1736609YP

FITTING & HOSE ASSEMBLY, Fuel Tank

$24.99

$

In Stock, only 1 left!

0

0060-40

Murray 1654930SM

BUSHING, Fuel Tank

$7.99

$

In Stock, Qty 20+

0

0070

Murray 5101651SM

CAP, Gas

$30.99

$

In Stock, Qty 5

0

0080

Murray 1739015YP

POD, LH

$34.99

$

Usually ships in 2-12 days

0

0100

Murray 1731300SM

SPACER, 5/16 ID x 1-1/4 OD x 5/16

$5.49

$

Usually ships in 2-12 days

0

0110

Murray 1727265SM

SUPPORT, Seat

$102.99

$

Usually ships in 2-12 days

0

0120

Murray 1727268SM

LATCH, SEAT

$8.99

$

Usually ships in 2-12 days

0

0130

Murray 770697

SCREW, Flange, DOG PT, 5/16-18 x 1.0

$

$

Not available

0140

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, Qty 13

0

0150

Murray 1704724SM

COVER, Spring

$7.99

$

In Stock, only 1 left!

0

0160

Murray 1960686SM

NUT, Hex Flange, 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

0170

Murray 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

Usually ships in 2-12 days

0

0180

Murray 1704728SM

SPRING, Compression

$9.99

$

In Stock, only 2 left!

0

0190

Murray 1960282SM

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0200

Murray 1727266SM

PIVOT, Seat
(Superseded to 1687866)

$74.99

$

Usually ships in 2-12 days

0

0210

Murray 1930601SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 18

0

0220

Murray 1729576SM

BOLT, Shoulder, 5/16-18 x 15/32
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0240

Murray 1738795YP

POD, RH

$26.99

$

Usually ships in 2-12 days

0

0250

Murray 1960536SM

SCREW, Hex, 1/4 x 1/2

$4.99

$

Usually ships in 2-12 days

0

0270

Murray 1731310SM

SUPPORT, Seat Deck

$36.99

$

Usually ships in 2-12 days

0

0300

Murray 1931334SM

BOLT, Carriage, 5/16-18 x 7/8
(Superseded to 704065)

$4.49

$

In Stock, Qty 12

0

0310

Murray 1730159SM

SEAT, High Back

$463.99

$

Usually ships in 2-12 days

0
