2690912 - Bad Boy 46" Lawn Tractor, 24hp (2010) Wheel & Tire Group Parts Diagram

46" Lawn Tractor, 24hp

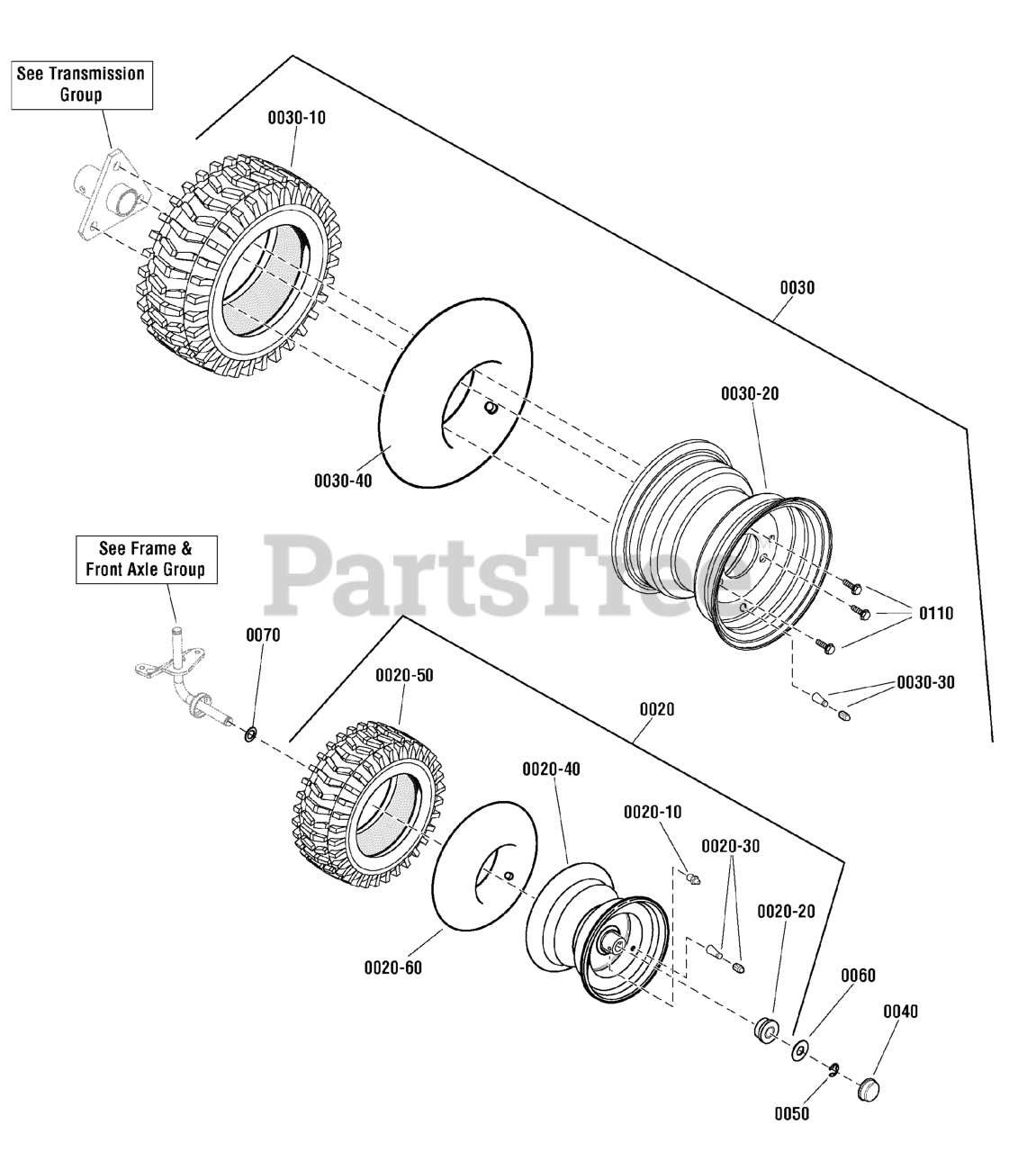

Wheel & Tire Group Parts Diagram

  • Title

0020

Murray 1750549YP

WHEEL & TIRE ASSEMBLY, Front

Note: (Includes Ref. 0020-10, 0020-20, 0020-30, 0020-40 & 0020-50)

$

$

Currently unavailable

0020-10

Murray 2812808SM

FITTING, Lube, 1/4

$4.99

$

In Stock, Qty 20+

0

0020-20

Murray 1742259YP

BEARING 3/4" ID Hard
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

0020-30

Murray 2172353SM

VALVE STEM & CAP, Air .453 Dia 0.88 Long
(Superseded to 024373MA)

$8.49

$

Usually ships in 2-12 days

0

0020-40

* RIM

$

$

Not available

0020-50

Murray 1731951SM

TIRE, 15 x 6 - 6, Turf Rider

$134.99

$

In Stock, Qty 7

0

0020-60

Murray 1664090SM

TUBE

$28.99

$

In Stock, only 2 left!

0

0030

Murray 1750550YP

WHEEL & TIRE ASSEMBLY, 20 x 10.0-8

Note: (Includes Ref. 0030-10, 0030-30 & 0030-40)

$

$

Currently unavailable

0030-10

Murray 1722826SM

TIRE, 20 x 10-8, 2 Ply K358

$175.99

$

Usually ships in 2-12 days

0

0030-20

* RIM

$

$

Not available

0030-30

Murray 2172353SM

VALVE STEM, TR412
(Superseded to 024373MA)

$8.49

$

Usually ships in 2-12 days

0

0030-40

Murray 2173477SM

TUBE

$90.99

$

In Stock, only 2 left!

0

0040

Murray 094618MA

HUB CAP

$5.99

$

In Stock, Qty 20+

0

0050

Murray 0011X3MA

E-RING, 3/4D, 1/2T

$5.99

$

In Stock, Qty 10

0

0060

Murray 17X195MA

WASHER, Flat

$4.99

$

In Stock, Qty 19

0

0070

Murray 17X160MA

WASHER, Flat, 3/4 x 1-1/4 x 16

$4.99

$

In Stock, only 2 left!

0

0110

Murray 7091502YP

BOLT, 1/2-20 x 3/4" Lug, GR 5
(Superseded to 703431)

$4.99

$

In Stock, Qty 20+

0
