2690933 - Simplicity Conquest 52" Garden Tractor, 24hp Steering Group - Power Steering & Hydraulic Lift Parts Diagram

Conquest 52" Garden Tractor, 24hp

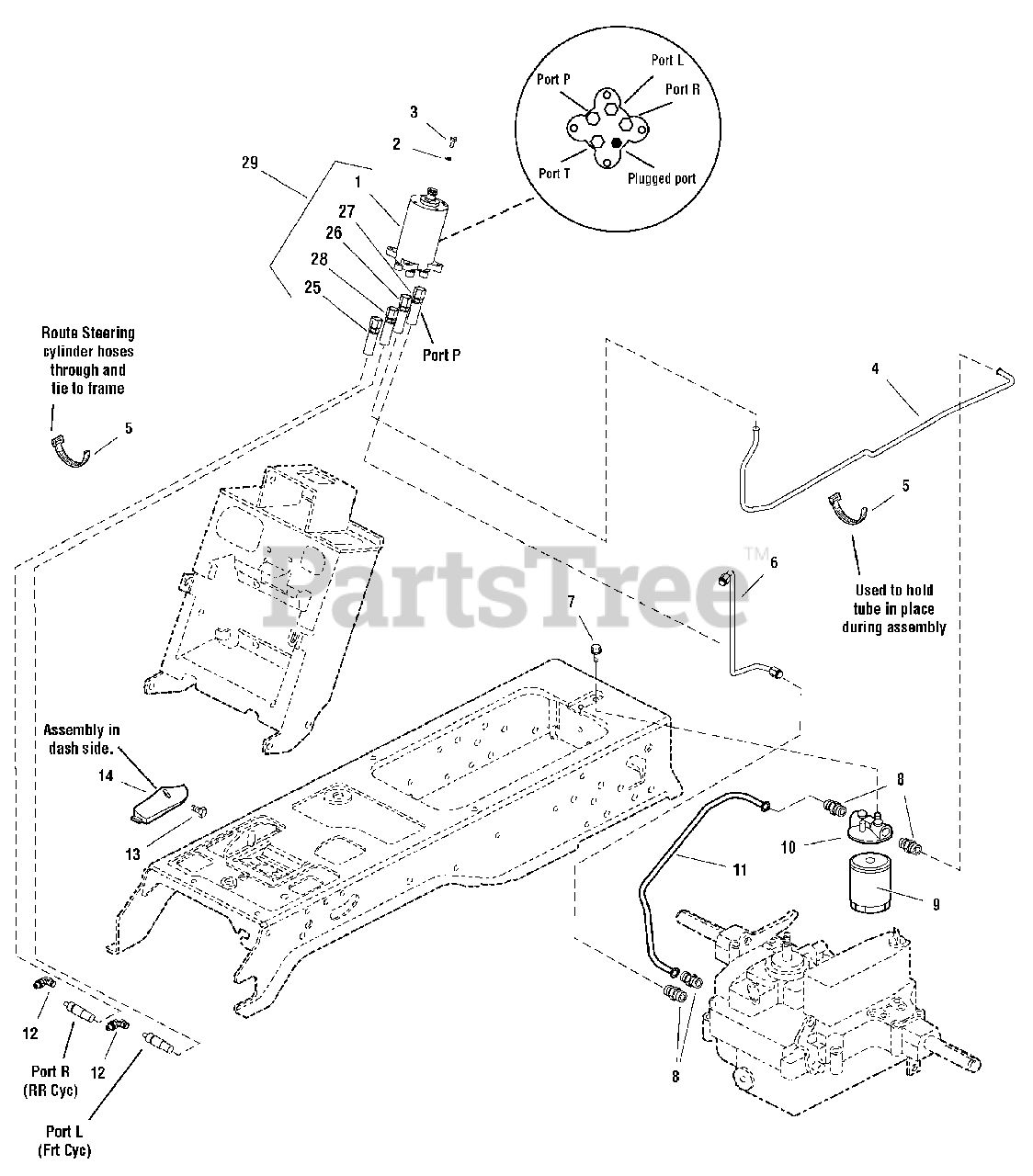

Steering Group - Power Steering & Hydraulic Lift Parts Diagram

  • Title

1

Simplicity 1733409SM

POWER STEERING UNIT, 32CC, 4 Ports

$1060.99

$

Usually ships in 2-12 days

0

2

Simplicity 1916964SM

LOCKWASHER, Spring
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

3

Simplicity 2860444SM

CAPSCREW, Hex Head

$2.99

$

Usually ships in 2-12 days

0

4

Simplicity 1722138SM

TUBE, Hydraulic

$139.99

$

Usually ships in 2-12 days

0

5

Simplicity 2825094SM

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

6

Simplicity 1733727SM

TUBE, Hydraulic

$74.99

$

In Stock, only 1 left!

0

7

Simplicity 1931646SM

SCREW, Hex Whiz Lock Flange 1/4-20 x 1/2

$4.49

$

In Stock, only 4 left!

0

8

Simplicity 1722123SM

FITTING, Straight

$9.99

$

Usually ships in 2-12 days

0

9

Simplicity 1719168SM

FILTER, Oil
(Superseded to 1719168YP)

$26.99

$

In Stock, Qty 16

0

10

Simplicity 1719169SM

BASE, Oil Filter

$56.99

$

Usually ships in 2-12 days

0

11

Simplicity 1722297SM

TUBE, Hydraulic

$70.99

$

In Stock, only 1 left!

0

11

Simplicity 1733427SM

TUBE, Hydraulic

Note: (Used only on 4WD models)

$68.99

$

Usually ships in 2-12 days

0

12

Simplicity 1733230SM

FITTING, Hose Elbow Perma Push 9/16-18

$103.99

$

Usually ships in 2-12 days

0

13

Simplicity 1722607SM

SCREW, Round Head Plastite

Note: (Used only on 4WD models)

$3.99

$

In Stock, only 1 left!

0

14

Simplicity 1722285SM

COVER, Lift

Note: (Used only on 4WD models)

$6.99

$

In Stock, only 1 left!

0

25

Simplicity 1733413SM

HOSE ASSEMBLY, 50"

Note: Port R

$106.99

$

Usually ships in 2-12 days

0

26

Simplicity 1733791SM

HOSE ASSEMBLY, 18"

Note: Port T

$

$

Not available

27

Simplicity 1733780SM

HOSE ASSEMBLY, 26"

Note: Port P

$113.99

$

Usually ships in 2-12 days

0

28

Simplicity 1733212SM

HOSE ASSEMBLY, 46"

Note: Port L

$104.99

$

Usually ships in 2-12 days

0

29

Simplicity 1733582SM

POWER STEERING ASSEMBLY, 32CC, 4 Ports

Note: Includes Ref. Nos 1, 25, 26, 27 & 28

$995.99

$

Usually ships in 2-12 days

0

29

Simplicity 1733894SM

POWER STEERING ASSEMBLY

Note: (Used only on 4WD models)

$1014.99

$

Usually ships in 2-12 days

0
