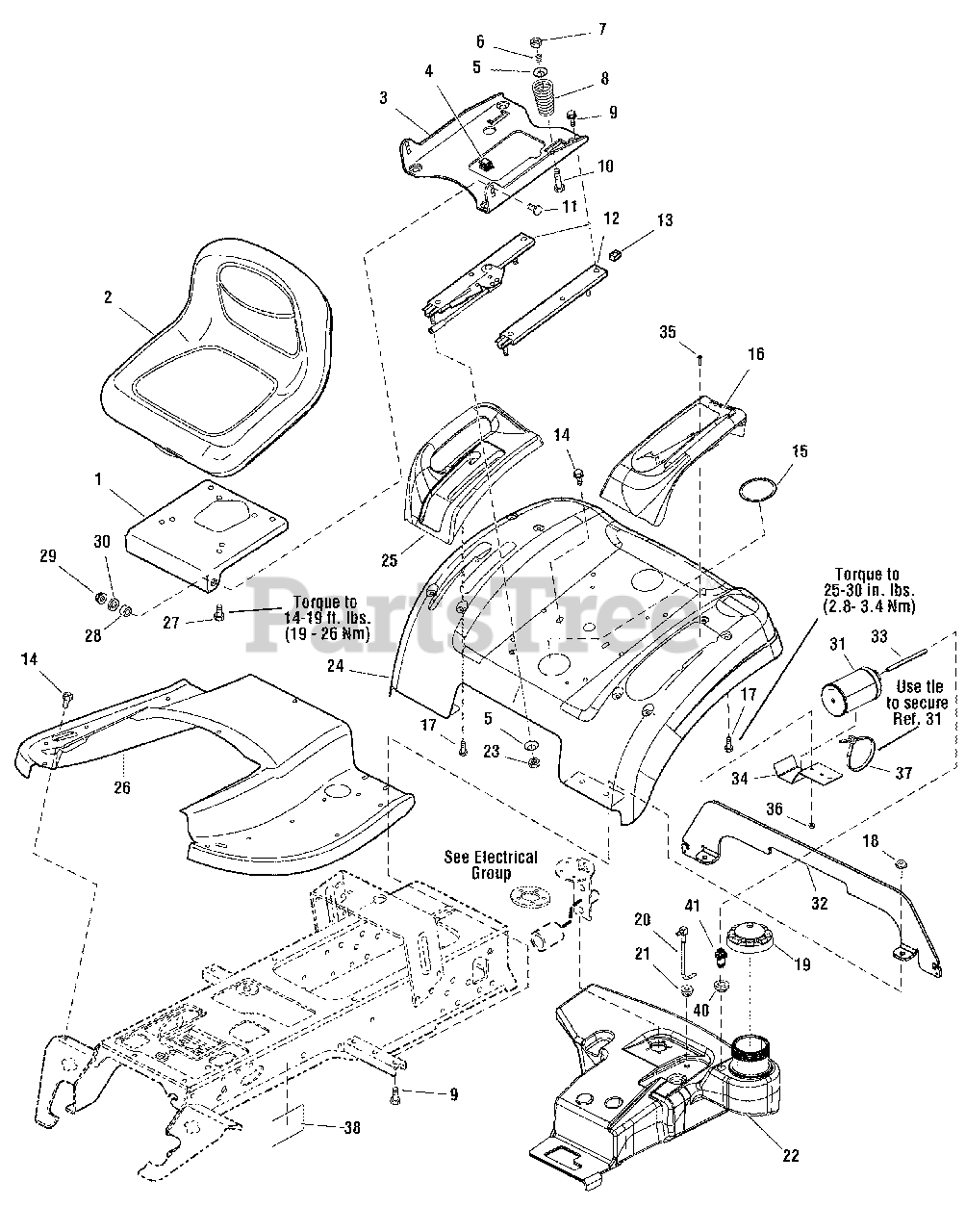

2690950 - Simplicity Conquest 46" Garden Tractor, 23hp Seat & Seat Deck Group - EVAP Compliant Parts Diagram

Conquest 46" Garden Tractor, 23hp

Seat & Seat Deck Group - EVAP Compliant Parts Diagram

  • Title

1

Simplicity 1722129A

BRACKET, 1-5/8 x 1-3/4
(Superseded to 1722129ASM)

$62.99

$

Usually ships in 2-12 days

0

2

Simplicity 1731999

SEAT, 18"
(Superseded to 1753728YP)

$627.99

$

Usually ships in 2-12 days

0

3

Simplicity 1722128A

SUPPORT, Seat
(Superseded to 1722128ASM)

$93.99

$

Usually ships in 2-12 days

0

4

Simplicity 2172434

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

5

Simplicity 1709256

WASHER, Spring, 5/16 x 1-1/4
(Superseded to 1709256SM)

$6.49

$

In Stock, Qty 11

0

6

Simplicity 1714263

SPRING, Compression
(Superseded to 1714263SM)

$5.49

$

In Stock, only 1 left!

0

7

Simplicity 1919438

NUT, Hex Lock, ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1717051

SPRING, Compression
(Superseded to 1717051FS)

$13.99

$

Usually ships in 2-12 days

0

9

Simplicity 1930591

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 9

0

10

Simplicity 1931339

BOLT, Carriage, 5/16-18 x 2
(Superseded to 704035)

$4.49

$

In Stock, only 2 left!

0

11

Simplicity 1931350

BOLT, Carriage, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, Qty 6

0

12

Simplicity 1722356

SLIDE, Seat
(Superseded to 1722356SM)

$65.99

$

In Stock, only 1 left!

0

13

Simplicity 1935255

NUT, Speed, 5/16-18, Lug Type
(Superseded to 1935255SM)

$3.49

$

In Stock, Qty 12

0

14

Simplicity 1930601

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

15

Simplicity 1722309

PLUG, Plastic
(Superseded to 1722309SM)

$6.49

$

In Stock, Qty 10

0

16

Simplicity 1729711

POD, with Cup Holder, LH
(Superseded to 1687789YP)

$109.99

$

Usually ships in 2-12 days

0

17

Simplicity 2860664

CAPSCREW, Hex Washer Head, 1/4-20 x 5/8
(Superseded to 2860664SM)

$6.49

$

In Stock, Qty 12

0

18

Simplicity 1931277

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

19

Simplicity 5103005

CAP, Gas
(Superseded to 84005958)

$41.99

$

In Stock, only 2 left!

0

20

Simplicity 1722340

TUBE & ELBOW ASSEMBLY
(Superseded to 1757609YP)

$20.99

$

Usually ships in 2-12 days

0

21

Simplicity 1654930

BUSHING, 3/8 x 9/16 x 5/8, Rubber
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

22

Simplicity 1751622

TANK, Fuel
(Superseded to 1751622YP)

Note: (Incl. Ref. Nos. 39, 40 & 41)

$387.99

$

Usually ships in 2-12 days

0

23

Simplicity 1960636

NUT, Hex KEPS, 5/16-18
(Superseded to 1960636SM)

$4.99

$

In Stock, Qty 12

0

24

Simplicity 1722106C

DECK, Seat, Orange
(Superseded to 1722106CSM)

$640.99

$

Usually ships in 2-12 days

0

24

Simplicity 1722106D

DECK, Seat, Red
(Superseded to 1722106DSM)

$543.99

$

Usually ships in 2-12 days

0

25

Simplicity 1722108

POD, RH with 2 Slots
(Superseded to 1687790YP)

$109.99

$

Usually ships in 2-12 days

0

26

Simplicity 1722105C

TUNNEL, Orange
(Superseded to 1722105CSM)

$510.99

$

Usually ships in 2-12 days

0

26

Simplicity 1722105D

TUNNEL, Red
(Superseded to 1722105DSM)

$

$

Not available

27

Simplicity 1960667

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 1
(Superseded to 1960667SM)

$5.49

$

Usually ships in 2-12 days

0

28

Simplicity 1663752

SPACER, 25/64 x 5/8 x 3/16, Hardened
(Superseded to 1663752SM)

$6.49

$

In Stock, Qty 10

0

29

Simplicity 1930645

NUT, Hex Flange Two-Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

30

Simplicity 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 1751599

CARBON CANISTER, 300CC
(Superseded to 1751599YP)

$65.99

$

In Stock, only 2 left!

0

32

Simplicity 1727949A

SUPPORT, Mower Hanger
(Superseded to 1727949ASM)

$101.99

$

Usually ships in 2-12 days

0

33

Simplicity 7700552X5

HOSE, Vapor
(Superseded to 7700552X5YP)

$5.99

$

Usually ships in 2-12 days

0

34

Simplicity 1752099A

BRACKET, Canister Mounting
(Superseded to 1752099AYP)

$21.99

$

Usually ships in 2-12 days

0

35

Simplicity 1960589

SCREW, Round Head Phillips, #10-24 x 3/4
(Superseded to 1960589SM)

$4.49

$

Usually ships in 2-12 days

0

36

Simplicity 1960591

NUT, KEPS Lock, #10-24
(Superseded to 1960591SM)

$3.49

$

In Stock, Qty 8

0

37

Simplicity 1701011

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

38

Simplicity 1756163

DECAL, EVAP, Viper

$

$

Not available

38

Simplicity 1756217

DECAL, EVAP, LSI Viper

$

$

Not available

40

Simplicity 799624

GROMMET

Note: (Included with Ref. No. 22)

$9.49

$

In Stock, only 3 left!

0

41

Simplicity 7104638

REMOTE VENT ASSEMBLY
(Superseded to 770046)

Note: (Included with Ref. No. 22)

$17.99

$

In Stock, only 2 left!

0
