2691012-00 - Simplicity Coronet 30" Rear-Engine Riding Mower, 14.5hp Frame Group Parts Diagram

Coronet 30" Rear-Engine Riding Mower, 14.5hp

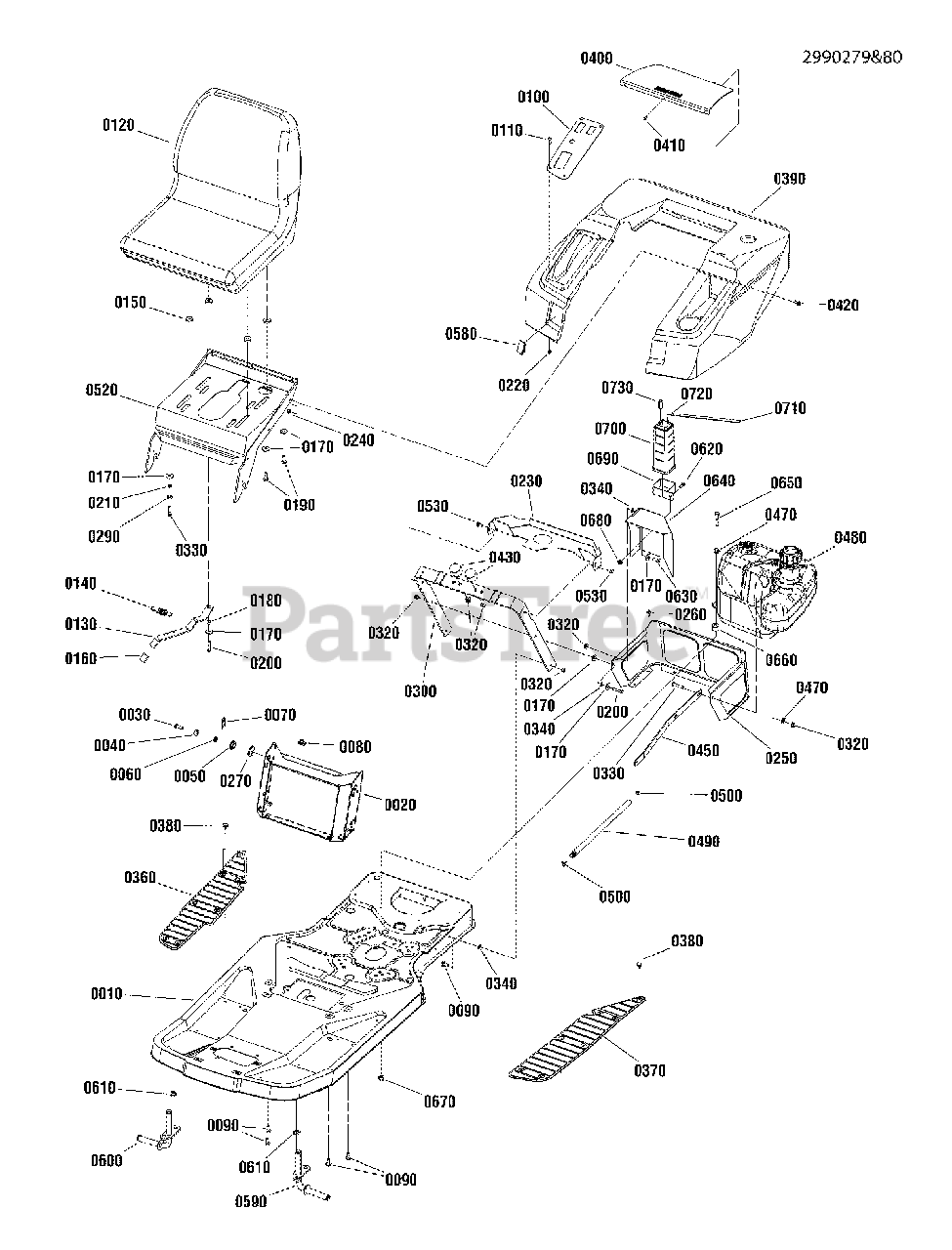

Frame Group Parts Diagram

  • Title

0010

Simplicity 1660915ASM

WELD, FRAME / SPINDLE ASSY, COR, BLACK

$

$

Not available

0020

Simplicity 1727685ASM

PANEL, Front

$42.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1960373SM

CAPSCREW, Hex, Taptite, 5/16-18 x 1 Black
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0040

Simplicity 1705248SM

PIVOT, Hood

$26.99

$

In Stock, only 3 left!

0

0050

Simplicity 1704626SM

SPACER, .765 ID X 1.25 OD X .375 Thk, BL Nylon

$6.99

$

In Stock, Qty 9

0

0060

Simplicity 1705249SM

SPACER, .328 ID X .748 OD X .39 Long

$2.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1704628SM

PIN, Quick for .750 Dia.IShaft (Hairpin) Blk

$4.49

$

In Stock, Qty 5

0

0080

Simplicity 1935255SM

NUT, 5/16-18, Speed Lug Type .025/.150 B

$3.49

$

In Stock, Qty 7

0

0090

Simplicity 9357MA

SCREW, 5/16-18 X .750, Flanged Whiz-Lock, GR5
(Superseded to 703354)

Note: (Was 1930591 or 80003531)

$5.49

$

In Stock, Qty 18

0

0100

Simplicity 1726836BMYP

PLATE, Control

$

$

Not available

0110

Simplicity 1960715SM

SCREW, Truss Head, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 14

0

0120

Simplicity 1725486SM

SEAT, Assembly, Hi-Back, 13.65 High X 18.25 Wide

$295.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1725532BMYP

ADJUSTER, Seat

$

$

Not available

0140

Simplicity 1667286SM

SPRING, .5 OD X 2.5 Long, .059 Wire

$9.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1708511SM

SPACER, .317 ID X 1.0 OD X .255 Thick

$7.49

$

Usually ships in 2-12 days

0

0160

Simplicity 1708881SM

CAP, Black, Vinyl

$3.49

$

Usually ships in 2-12 days

0

0170

Simplicity 703298

WASHER, 5/16 (.34 ID X 1 OD X .13 THK) GR5, Zinc/Clear

Note: (Was 1919381 or 80003525)

$4.49

$

In Stock, Qty 12

0

0180

Simplicity 1703900SM

SPACER, .323 ID X .5 OD X .27 Long

$7.99

$

Usually ships in 2-12 days

0

0190

Simplicity 770697

SCREW, 5/16-18X1.0, Hex Flanged Whiz Lock

$

$

Not available

0200

Simplicity 703570

SCREW, 5/16-18X1.25,Hex Head Cap, GR 5, Zinc/Clear

Note: (Was 1921977 or 80004616)

$4.99

$

In Stock, Qty 11

0

0210

Simplicity 703116

WASHER, .32 X .58 X .08, Split Lock, YZ

Note: (Was 1917356 or 80002745)

$3.49

$

In Stock, Qty 20+

0

0220

Simplicity 703232

NUT, 1/4-20, Nylock, GR A, Zinc/Clear

Note: (Was 1920397 or 80002730)

$4.49

$

In Stock, Qty 20+

0

0230

Simplicity 1708725BMYP

DUCT, Air Inlet

$

$

Not available

0240

Simplicity 703916

NUT, 1/4-20, Hex Flanged Thread Lock, Zinc/Clear

Note: (Was 1930642 or 80005321)

$4.99

$

In Stock, only 4 left!

0

0250

Simplicity 7301146AYP

SHROUD, Rear

$68.99

$

Usually ships in 2-12 days

0

0260

Simplicity B4300GS

SCREW, 1/4-20X.500, Hex HD, Self-Tap, Zinc/Clear
(Superseded to 704130)

Note: (Was 1925003, 7090539, 7091122, 720041 or 80002738)

$3.99

$

In Stock, Qty 20+

0

0270

Simplicity 2860208SM

WASHER, 1.0 (1.01 ID X 1.5 OD X .05 Thk) YEL

$4.99

$

Usually ships in 2-12 days

0

0280

Simplicity 703586

TIE, .184 WD, 15.0 Long, Self Locking, Black (Not Shown)

Note: (Was 1707011 or 80002747)

$4.99

$

Usually ships in 2-12 days

0

0290

Simplicity 703465

NUT, 5/16-18, GRB, Zinc/Clear

Note: (Was 1917372, 7091511 or 80002725)

$4.49

$

Usually ships in 2-12 days

0

0300

Simplicity 1726563ASM

Support, Seat

$66.99

$

Usually ships in 2-12 days

0

0320

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

Note: (Was 1931277 or 80002728)

$5.49

$

In Stock, Qty 20+

0

0330

Simplicity 1921221SM

SCREW, 5/16-18 X 1.50, Hex Head Cap, GR 5, Zinc/Clear (Was 1921221)
(Superseded to 703906)

Note: (Was 1921221 or 80003615)

$4.99

$

In Stock, Qty 7

0

0340

Simplicity 703297

RETAINER, 5/16, Push Nut, GR 5, Zinc/Clear

Note: (Was 1933988 or 80002734)

$3.99

$

In Stock, Qty 20+

0

0360

Simplicity 1708524SM

PAD, Foot Rest, RH

$14.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1708525SM

PAD, Foot Rest, LH

$14.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1704351SM

FASTENER, Panel, .750 Dia. HD, .70 Long Stem, Plastic, BL

$4.99

$

Usually ships in 2-12 days

0

0390

Simplicity 1734144SM

DECK, Seat, Orange

$780.99

$

Usually ships in 2-12 days

0

0400

Simplicity 7102141SM

SCREEN, Seat Deck Top, Open Vent, Black Plastic

$42.99

$

In Stock, only 1 left!

0

0410

Simplicity 1673320SM

RIVET, .188 Dia. X .617 Long Stem, .62 Dia. HD

$4.49

$

In Stock, Qty 8

0

0420

Simplicity 1960295SM

SCREW, 1/4-20X0.625, Hex Flange Whiz Lock, BLK

$4.49

$

In Stock, only 3 left!

0

0430

Simplicity 1715970SM

BUMPER, Rubber, 1.50 Dia., 1.0 Thick, 5/16-18X.6 Stud

$9.99

$

Usually ships in 2-12 days

0

0450

Simplicity 1708362BMYP

STRAP, Fuel Tank, Brace

$

$

Not available

0470

Simplicity 703878

WASHER, 13/32 x 7/8 x 5/64, Flat, Zinc/Clear

Note: (Was 1924940, 7090122 or 80003621)

$3.99

$

In Stock, Qty 20+

0

0480

Simplicity 7102688YP

ASSEMBLY, Fuel Tank, CA

$445.99

$

Usually ships in 2-12 days

0

0490

Simplicity 1734991YP

HOSE, Fuel, .25 ID, .5 OD, 13.5 Long

$

$

Not available

0500

Simplicity 93053B

CLAMP, Hose Band Type, .490 ID, .312 Wide, Green

$

$

Not available

0520

Simplicity 1725531ASM

SUPPORT, Seat

$455.99

$

In Stock, only 1 left!

0

0530

Simplicity 1924856SM

SCREW, 5/16-18 x 1/2, Hex Washer Head Taptite, Blk
(Superseded to 703985)

$4.49

$

In Stock, Qty 15

0

0580

Simplicity 1722611SM

PLUG, Hole 0.85 X 1.73 Black ABS

$6.99

$

Usually ships in 2-12 days

0

0590

Simplicity 1706011BMYP

WELDMENT, Spindle, LH

$

$

Not available

0600

Simplicity 1706019BMYP

WELDMENT, Spindle, RH

$

$

Not available

0610

Simplicity 1611710SM

RING-Klip, .750 Dia. Shaft, .062 Thk., Ext., Blk

$4.49

$

In Stock, Qty 16

0

0620

Simplicity 703925

SCREW, 1/4-20 x 3/4 Hex Head Cap, GR 5, Zinc/Clear

Note: (Was 1923341, 7091495, or 80002712)

$4.49

$

In Stock, Qty 6

0

0630

Simplicity 1921332SM

SCREW, 5/16-18 x 3/4 Hex Head Cap, GR 5, YZ
(Superseded to 704287)

Note: (Was 80002715)

$3.99

$

In Stock, Qty 19

0

0640

Simplicity 1753810YP

SHIELD, Heat, Inner

$

$

Not available

0650

Simplicity 1921971SM

SCREW, 3/8-16 X 1.75, Hex Head Cap, GR5 Black
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

0660

Simplicity 1667812SM

SPACER, .390 x .900 x .70 Thick, PM

$5.99

$

In Stock, only 3 left!

0

0670

Simplicity 703158

NUT, 3/8-16 Hex Flange Esna, Black

Note: (Was 1960687 or 80003660)

$3.49

$

In Stock, Qty 20+

0

0680

Simplicity 703233

NUT, 1/4-20 Hex Flange Lock, GR 5, Zinc/Clear

Note: (Was 1960294 or 80002727)

$4.49

$

In Stock, only 2 left!

0

0690

Simplicity 1753811YP

BRACKET, Canister Mounting

$

$

Not available

0700

Simplicity 7101425YP

CANISTER

$45.99

$

In Stock, only 1 left!

0

0710

Simplicity 7200138YP

HOSE, Vapor, 5 MM ID X 9 MM OD X 8.5"

$12.99

$

Usually ships in 2-12 days

0

0720

Simplicity 795230

CLAMP, Hose

Note: (Was 7095855)

$3.99

$

Usually ships in 2-12 days

0

0730

Simplicity 7014361YP

CAP, Lift Rod, .343 ID X 1 Long

$4.49

$

Usually ships in 2-12 days

0
