2691337-00 - Simplicity Broadmoor 52" Lawn Tractor, 25hp Engine Group - 25 Gross HP Briggs & Stratton Parts Diagram

Broadmoor 52" Lawn Tractor, 25hp

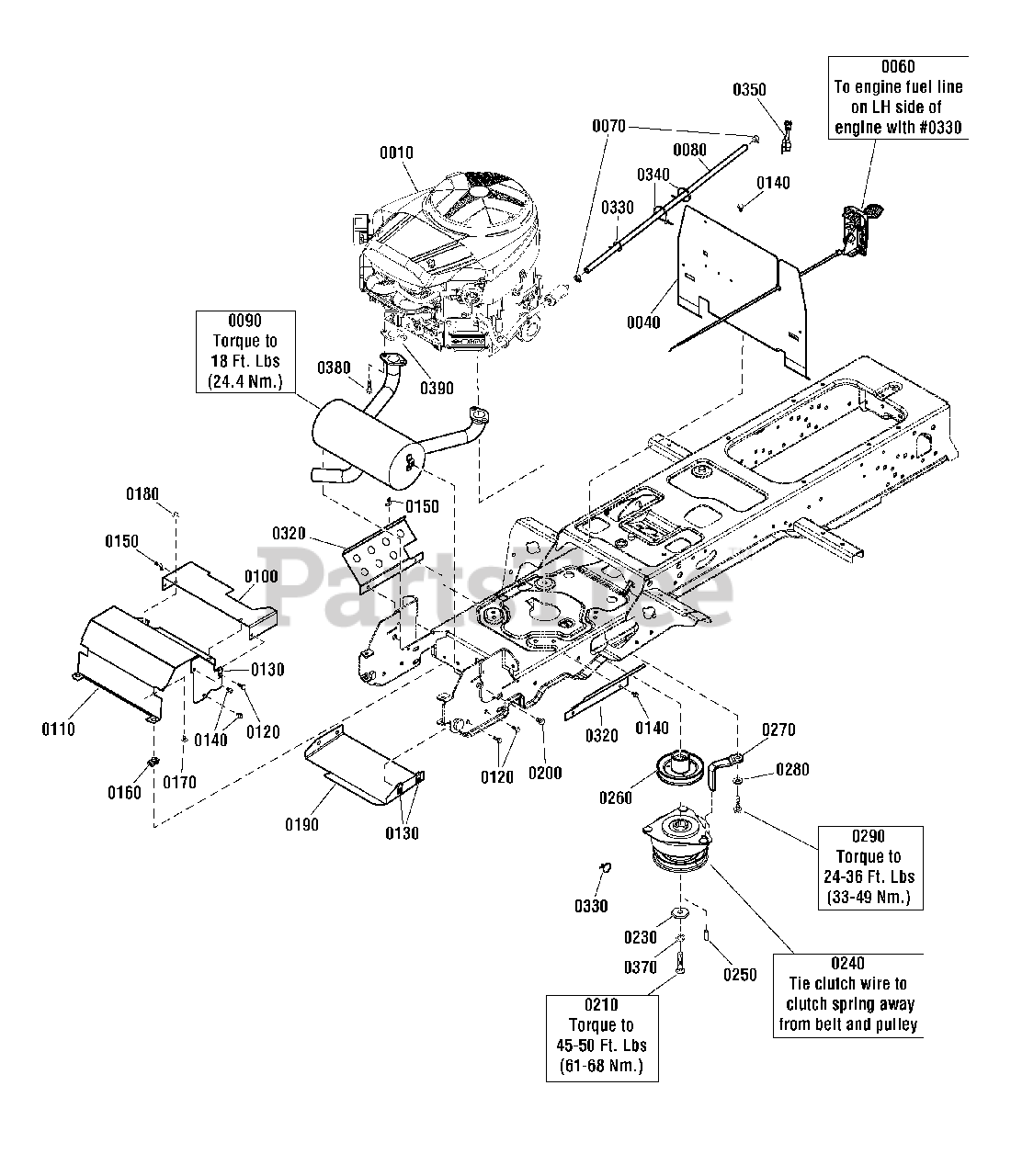

Engine Group - 25 Gross HP Briggs & Stratton Parts Diagram

  • Title

0010

Simplicity 44S977-0024-G1

* ENGINE, 25 Gross HP Briggs & Stratton, Twin

Note: (Engine Model: 44S777-0024-G1)

$

$

Not available

0040

Simplicity 1755854AYP

FIREWALL, Engine

$98.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1759240YP

THROTTLE

$69.99

$

Usually ships in 2-12 days

0

0070

Simplicity 93053B

CLAMP, Hose

$

$

Not available

0080

Simplicity 199086X46YP

HOSE, Fuel

$17.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1721706SM

MUFFLER, Briggs & Stratton, INTEK Twin

$237.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1722390ASM

DUCT, Muffler Extension

$13.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1722389ASM

DUCT, Muffler, Top

$85.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1960295SM

CAPSCREW, Hex Flange, Whiz Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 2 left!

0

0130

Simplicity 1960368SM

NUT, Speed Lug Type, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 1927428SM

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

0150

Simplicity 703176

CLIP, Wire

$3.49

$

Usually ships in 2-12 days

0

0160

Simplicity 1935255SM

NUT, Speed Lug Type, 5/16-18

$3.49

$

In Stock, Qty 12

0

0170

Simplicity 5025299X4SM

SCREW, ALLEN HEAD 1/4-20 X .500 ZINC PHOS

$4.99

$

In Stock, only 3 left!

0

0180

Simplicity 5025126SM

NUT, Serrated Flange, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 11

0

0190

Simplicity 1722414ASM

SHIELD, Muffler Bottom

$22.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1924856SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 18

0

0210

Simplicity 771023

CAPSCREW, Hex Head, Loctite, 7/16-20 x 3.5

$6.99

$

In Stock, only 2 left!

0

0230

Simplicity 1708264SM

WASHER, Hex

$8.99

$

In Stock, only 3 left!

0

0240

Simplicity 1736105SM

CLUTCH, Ogura

$397.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1732576SM

PULLEY & HUB ASSEMBLY, Engine

$44.99

$

In Stock, only 2 left!

0

0270

Simplicity 1737421AYP

GUIDE, Belt

$12.99

$

In Stock, Qty 6

0

0280

Simplicity 1924940SM

WASHER, 3/8, .41 ID x .87 OD x .08 THK
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0290

Simplicity 704010

CAPSCREW, Hex Head, Taptite, 3/8-16 x 1-1/2 (For 1692768)

$4.99

$

In Stock, only 2 left!

0

0320

Simplicity 1722392ASM

SHIELD, Side, Heat

$10.99

$

Usually ships in 2-12 days

0

0330

Simplicity 2832747SM

TIE, Self Locking, 3-5/8 LG

$3.99

$

Usually ships in 2-12 days

0

0340

Simplicity 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1960769YP

WASHER, Belleville

$5.49

$

In Stock, only 1 left!

0

0380

Simplicity 690341

SCREW

$5.99

$

In Stock, only 3 left!

0

0390

Simplicity 593492

Gasket Set-Valve

$89.99

$

Usually ships in 2-12 days

0
