2691354-00 - Simplicity Cavalier 84cm Rear-Engine Riding Mower, 15.5hp Seat Group Parts Diagram

Cavalier 84cm Rear-Engine Riding Mower, 15.5hp

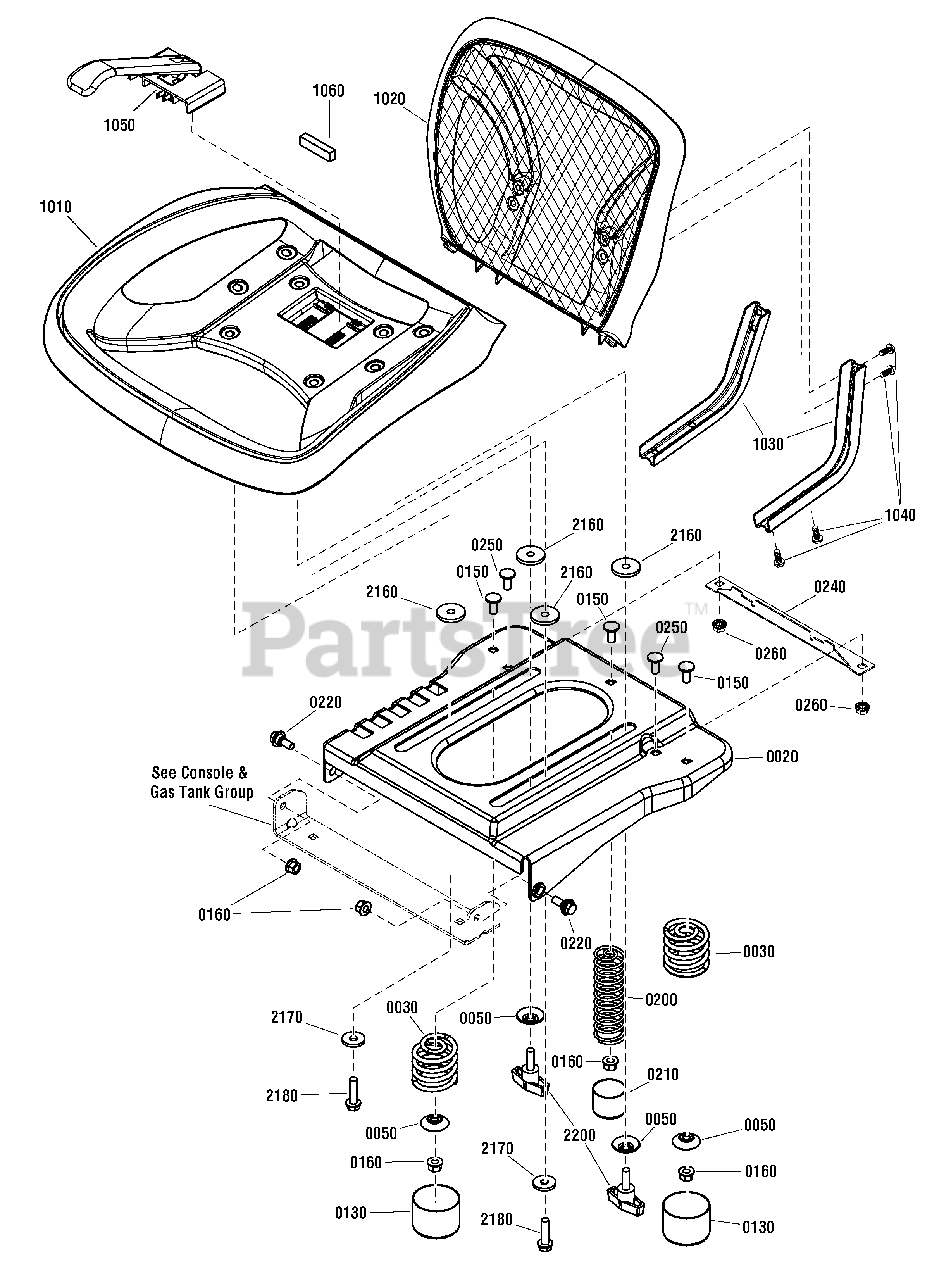

Seat Group Parts Diagram

  • Title

0020

Simplicity 7301391BMYP

SUPPORT, Seat

$91.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1704728SM

SPRING, Compression, 19/32 x 2

$9.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1709256SM

WASHER, Spring, 5/16 ID x 1-1/4 OD

$5.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1704724SM

COVER, Spring 2" Id X 1-1/2", Black Vinyl

$7.99

$

In Stock, only 2 left!

0

0150

Simplicity 703185

BOLT, 5/16-18 x 3/4, Carriage, Short Neck, G5, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0160

Simplicity 703115

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

$3.49

$

In Stock, only 1 left!

0

0200

Simplicity 7106013YP

SPRING, Compression, 4.57" Free Length

$5.99

$

Usually ships in 2-12 days

0

0210

Simplicity 5023274SM

CAP, Vinyl, 1.375 X 1

$5.99

$

Usually ships in 2-12 days

0

0220

Simplicity 703851

BOLT, Shoulder, 5/16-18 x 1-1/8

$5.49

$

In Stock, only 1 left!

0

0240

Simplicity 1759821CJYP

BRACKET, Seat Limiter

$20.99

$

Usually ships in 2-12 days

0

0250

Simplicity 703125

BOLT, Carriage, 5/16-18 X 5/8, GR5

$3.99

$

In Stock, only 2 left!

0

0260

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

1010

Simplicity 1738013YP

SEAT, Bottom, Mesh

$225.99

$

In Stock, only 1 left!

0

1020

Simplicity 1753182YP

SEAT, Mesh, Low Back

$262.99

$

Usually ships in 2-12 days

0

1030

Simplicity 1737848AYP

SUPPORT, Mesh Seat

$29.99

$

Usually ships in 2-12 days

0

1040

Simplicity 703354

CAPSCREW, Hex Flange, Whiz Lock 5/16-18 x 3/4, G5

$5.49

$

In Stock, Qty 8

0

1050

Simplicity 1738015

SWITCH, Seat, Paddle
(Superseded to 1738015YP)

$43.99

$

Usually ships in 2-12 days

0

1060

Simplicity 1750296

FOAM STRIP
(Superseded to 1750296YP)

$3.99

$

Usually ships in 2-12 days

0

2160

Simplicity 1731300SM

SPACER, 0.32 ID x 1-1/2 OD x 3/10 THK Powdered Metal Yellow

$5.49

$

Usually ships in 2-12 days

0

2170

Simplicity 703298

WASHER, 5/16 (.34 ID X 1" OD X .13 THK) GR5, Zinc/Clear

$4.49

$

In Stock, Qty 7

0

2180

Simplicity 1930595SM

CAPSCREW, Hex Hd., 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 8

0

2200

Simplicity 1752056YP

KNOB, 5/16-18 x 3/4 Two Prong

$6.49

$

Usually ships in 2-12 days

0
