2691373-00 - Simplicity 21" Walk-Behind Mower Deck & Engine Group (2691372_2691373) Parts Diagram

21" Walk-Behind Mower

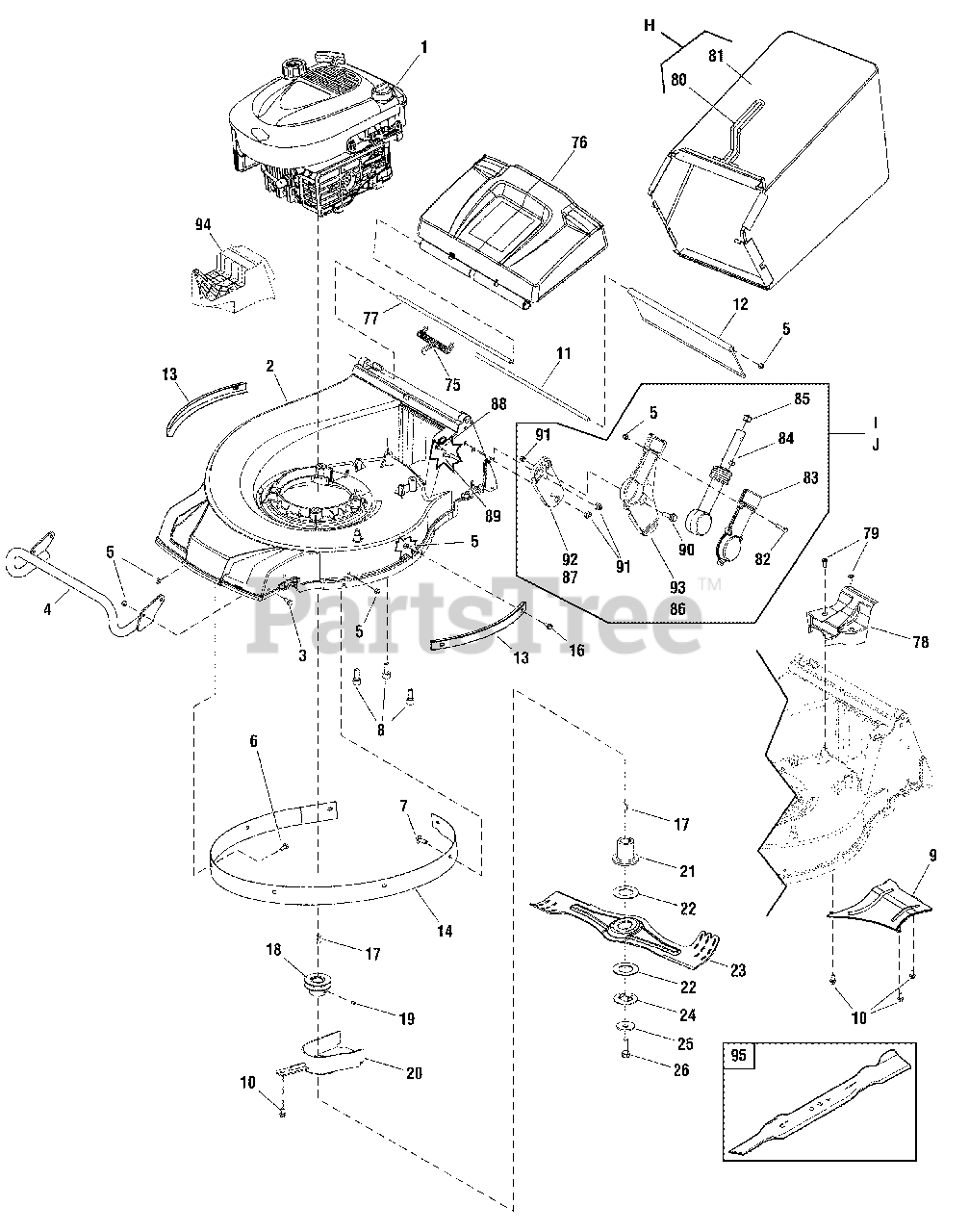

Deck & Engine Group (2691372_2691373) Parts Diagram

  • Title

1

Simplicity 122Q02-0029-H1

* ENGINE, 850 Series, Briggs & Stratton

Note: (Engine Model: 122Q02-0029-H1)

$

$

Not available

2

Simplicity 701180

DECK, 19"
(Superseded to 701180YP)

$936.99

$

Usually ships in 2-12 days

0

2

Simplicity 701291

DECK, 21"
(Superseded to 701291BJYP)

$876.99

$

Usually ships in 2-12 days

0

3

Simplicity 701181

BOLT, Hex Flange
(Superseded to 701181YP)

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 701182

BUMPER, 19"
(Superseded to 701182YP)

$55.99

$

Usually ships in 2-12 days

0

4

Simplicity 701328

BUMPER, 21"
(Superseded to 701328YP)

$60.99

$

Usually ships in 2-12 days

0

5

Simplicity 701183

NUT, Hex, Nylon Insert, Torque Type
(Superseded to 701183YP)

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 701184

SCREW, Truss Head, Cross Recessed
(Superseded to 701184YP)

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 701185

SCREW, Truss Head, Cross Recessed
(Superseded to 701185YP)

$3.49

$

Usually ships in 2-12 days

0

8

Simplicity 701186

SCREW, Inner Hexagon, Round Head, Tapping
(Superseded to 701186YP)

$5.49

$

In Stock, only 2 left!

0

9

Simplicity 701252

DEFLECTOR, Lower
(Superseded to 701252YP)

Note: (Use on 19" Decks)

$59.99

$

Usually ships in 2-12 days

0

9

Simplicity 701329

DEFLECTOR, Lower
(Superseded to 701329YP)

Note: (Use on 21" Decks)

$59.99

$

Usually ships in 2-12 days

0

10

Simplicity 701187

SCREW, Hex Flange, Tapping
(Superseded to 701187YP)

$5.99

$

Usually ships in 2-12 days

0

11

Simplicity 701188

SHAFT, Rear Deflector
(Superseded to 701188YP)

Note: (Use on 19" Decks)

$13.99

$

Usually ships in 2-12 days

0

11

Simplicity 701292

SHAFT, Rear Deflector
(Superseded to 701292YP)

Note: (Use on 21" Decks)

$13.99

$

Usually ships in 2-12 days

0

12

Simplicity 701189

DEFLECTOR, Rear
(Superseded to 701189YP)

Note: (Use on 19" Decks)

$

$

Not available

12

Simplicity 701293

DEFLECTOR, Rear
(Superseded to 701293YP)

Note: (Use on 21" Decks)

$36.99

$

Usually ships in 2-12 days

0

13

Simplicity 701190

SHIELD, Outer
(Superseded to 701190YP)

Note: (Use on 19" Decks)

$20.99

$

Usually ships in 2-12 days

0

13

Simplicity 701294

SHIELD, Outer
(Superseded to 701294YP)

Note: (Use on 21" Decks)

$

$

Not available

14

Simplicity 701253

SHIELD, Inner Ring
(Superseded to 701253YP)

Note: (Use on 19" Decks)

$

$

Not available

14

Simplicity 701295

SHIELD, Inner Ring
(Superseded to 701295YP)

Note: (Use on 21" Decks)

$62.99

$

Usually ships in 2-12 days

0

16

Simplicity 701297

BOLT, Hex Flange
(Superseded to 701297YP)

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 701192

KEY, Woodruff
(Superseded to 701192YP)

$4.49

$

Usually ships in 2-12 days

0

18

Simplicity 709647

PULLEY, Engine

$36.99

$

Usually ships in 2-12 days

0

19

Simplicity 701298

SCREW, Inner Hexagon Recessed
(Superseded to 701298YP)

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 701299

SHIELD, Lower Belt
(Superseded to 701299YP)

$14.99

$

Usually ships in 2-12 days

0

21

Simplicity 709649

ADAPTOR, Blade

$23.99

$

Usually ships in 2-12 days

0

22

Simplicity 701256

DISC, Friction
(Superseded to 701256YP)

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 701195

BLADE, 19"
(Superseded to 701195YP)

$38.99

$

Usually ships in 2-12 days

0

23

Simplicity 701332

BLADE, 21"
(Superseded to 701332YP)

$33.99

$

Usually ships in 2-12 days

0

24

Simplicity 701257

CLIP
(Superseded to 701257YP)

$4.49

$

Usually ships in 2-12 days

0

25

Simplicity 701196

SPRING, Dishing
(Superseded to 701196YP)

$12.99

$

Usually ships in 2-12 days

0

26

Simplicity 701197

BOLT, Blade
(Superseded to 701197YP)

$

$

Not available

75

Simplicity 701223

SPRING, Torsion
(Superseded to 701223YP)

Note: (Use on 19" Decks)

$12.99

$

Usually ships in 2-12 days

0

75

Simplicity 701310

SPRING, Torsion
(Superseded to 701310YP)

Note: (Use on 21" Decks)

$12.99

$

Usually ships in 2-12 days

0

76

Simplicity 701276

COVER, Rear
(Superseded to 701276YP)

Note: (Use on 19" Decks)

$138.99

$

In Stock, only 1 left!

0

76

Simplicity 701311

COVER, Rear
(Superseded to 701311YP)

Note: (Use on 21" Decks)

$138.99

$

Usually ships in 2-12 days

0

77

Simplicity 701224

SHAFT, Rear Cover
(Superseded to 701224YP)

Note: (Use on 19" Decks)

$13.99

$

Usually ships in 2-12 days

0

77

Simplicity 701312

SHAFT, Rear Cover
(Superseded to 701312YP)

Note: (Use on 21" Decks)

$13.99

$

Usually ships in 2-12 days

0

78

Simplicity 701225

SHIELD, Upper Pulley
(Superseded to 701225YP)

Note: (Use on 19" Decks)

$39.99

$

Usually ships in 2-12 days

0

78

Simplicity 701313

SHIELD, Upper Pulley
(Superseded to 701313YP)

Note: (Use on 21" Decks)

$39.99

$

Usually ships in 2-12 days

0

79

Simplicity 701226

SCREW, Inner Hexagon Tapping
(Superseded to 701226YP)

$3.99

$

Usually ships in 2-12 days

0

H

Simplicity 701227

GRASS CATCHER ASSEMBLY
(Superseded to 701227YP)

Note: (Includes Ref. Nos. 73 & 74) (Use on 19" Decks)

$226.99

$

Usually ships in 2-12 days

0

H

Simplicity 701314

GRASS CATCHER ASSEMBLY
(Superseded to 701314YP)

Note: (Includes Ref. Nos. 73 & 74) (Use on 21" Decks)

$210.99

$

Usually ships in 2-12 days

0

80

FRAME, Grass Catcher, 19" Deck

Note: (Not a serviceable part, order Ref. H)

$

$

Not available

80

FRAME, Grass Catcher, 21" Deck

Note: (Not a serviceable part, order Ref. H)

$

$

Not available

81

BAG, Grass Catcher, 19" Deck

Note: (Not a serviceable part, order Ref. H)

$

$

Not available

81

BAG, Grass Catcher, 21" Deck

Note: (Not a serviceable part, order Ref. H)

$

$

Not available

I

Simplicity 701346

BRACKET ASSEMBLY, RH
(Superseded to 701346YP)

Note: (Includes Ref. Nos. 5, 82, 83, 84, 85, 86, 87, 90 & 91)

$233.99

$

Usually ships in 2-12 days

0

J

Simplicity 701354

BRACKET ASSEMBLY, LH
(Superseded to 701354YP)

Note: (Includes Ref. Nos. 5, 82, 83, 84, 85, 90, 91, 92 & 93)

$233.99

$

Usually ships in 2-12 days

0

82

Simplicity 701347YP

BOLT, Hexangular, Full Thread

$3.49

$

Usually ships in 2-12 days

0

83

Simplicity 701348YP

COVER, Bracket

$33.99

$

Usually ships in 2-12 days

0

84

Simplicity 701349YP

AVS ASSEMBLY

$53.99

$

Usually ships in 2-12 days

0

85

AVS PLUG

Note: (Not a serviceable part, order Ref. I or J)

$

$

Not available

86

Simplicity 701351YP

BRACKET, Handle, RH

$77.99

$

Usually ships in 2-12 days

0

87

Simplicity 701352YP

BASE, Bracket, RH

$38.99

$

Usually ships in 2-12 days

0

88

Simplicity 701319

BOLT, Carriage
(Superseded to 701319YP)

$

$

Not available

89

Simplicity 701229

BOLT, Carriage
(Superseded to 701229YP)

$

$

Not available

90

Simplicity 701353

BOLT, Hex Flange
(Superseded to 701353YP)

$3.99

$

Usually ships in 2-12 days

0

91

Simplicity 701228

NUT, Nylon Insert, Torque Type
(Superseded to 701228YP)

$3.49

$

Usually ships in 2-12 days

0

92

Simplicity 701355YP

BASE, Bracket, LH

$38.99

$

Usually ships in 2-12 days

0

93

Simplicity 701356YP

BRACKET, Handle, LH

$70.99

$

Usually ships in 2-12 days

0

94

Simplicity 702120

PLUG, Mulch, 19"
(Superseded to 702120YP)

$126.99

$

Usually ships in 2-12 days

0

94

Simplicity 702122

PLUG, Mulch, 21"
(Superseded to 702122YP)

$172.99

$

Usually ships in 2-12 days

0

95

Simplicity 702119

BLADE, Mulching, 19"
(Superseded to 702119YP)

Note: (Optional Accessory)

$31.99

$

Usually ships in 2-12 days

0

95

Simplicity 702121

BLADE, Mulching, 21"
(Superseded to 702121YP)

Note: (Optional Accessory)

$32.99

$

Usually ships in 2-12 days

0
