2691480-00 - Simplicity Prestige 50" Garden Tractor, 27hp Differential Lock Group Parts Diagram

Prestige 50" Garden Tractor, 27hp

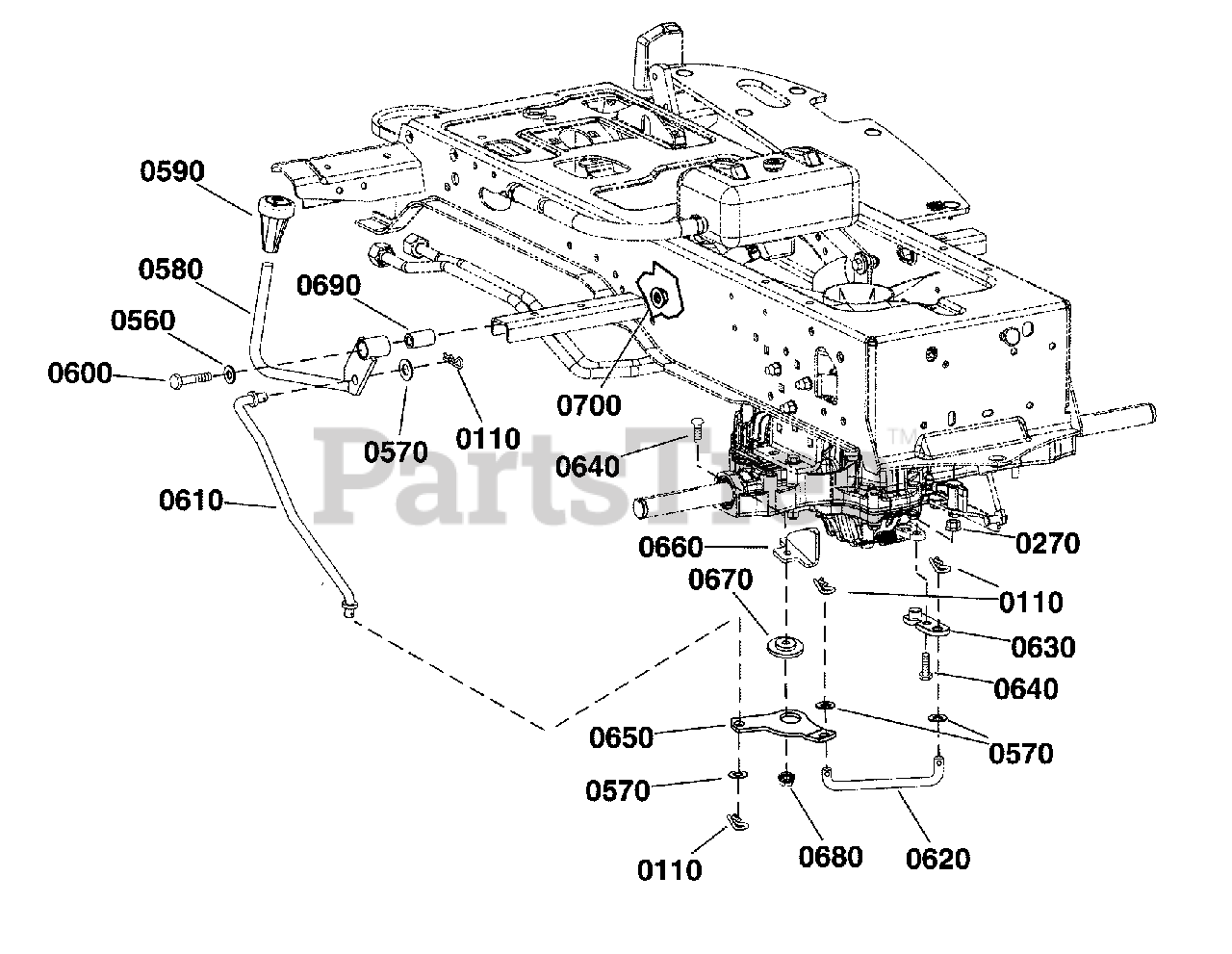

Differential Lock Group Parts Diagram

  • Title

0110

Simplicity 703430

PIN, 13X1.19

$3.49

$

In Stock, Qty 8

0

0270

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 18

0

0560

Simplicity 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0570

Simplicity 703183

WASHER, 7/16

$3.99

$

In Stock, Qty 11

0

0580

Simplicity 1721360AYP

PEDAL ASSEMBLY, Differential

$53.99

$

Usually ships in 2-12 days

0

0590

Simplicity 1716289SM

KNOB, Hole, 1/2 x 1-3/4, 2-11/16

$14.99

$

In Stock, only 1 left!

0

0600

Simplicity 703872

CAPSCREW, Hex Head, 3/8-16 X 2 1/4

$4.99

$

In Stock, Qty 18

0

0610

Simplicity 84001664

ROD, Differential Lock

$172.99

$

Usually ships in 2-12 days

0

0620

Simplicity 1755454YP

ROD, Differential Lock

$12.99

$

Usually ships in 2-12 days

0

0630

Simplicity 1722383SM

ARM, Differential Lock

$11.99

$

Usually ships in 2-12 days

0

0640

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 14

0

0650

Simplicity 1756597AYP

PIVOT, Differential Lock

$12.99

$

Usually ships in 2-12 days

0

0660

Simplicity 1755456AYP

BRACKET, Differential Lock

$15.99

$

Usually ships in 2-12 days

0

0670

Simplicity 1727935SM

SPACER, Pivot

$5.99

$

In Stock, Qty 9

0

0680

Simplicity 1960636SM

NUT, Hex, 5/16-18

$4.99

$

In Stock, Qty 12

0

0690

Simplicity 1756612YP

BUSHING

$5.49

$

Usually ships in 2-12 days

0

0700

Simplicity 703793

NUT, Lock, Flange, 3/8-16
(Superseded to 5025128SM)

$3.49

$

In Stock, Qty 20+

0
