2691480-00 - Simplicity Prestige 50" Garden Tractor, 27hp Frame & Front Axle Group Parts Diagram

Prestige 50" Garden Tractor, 27hp

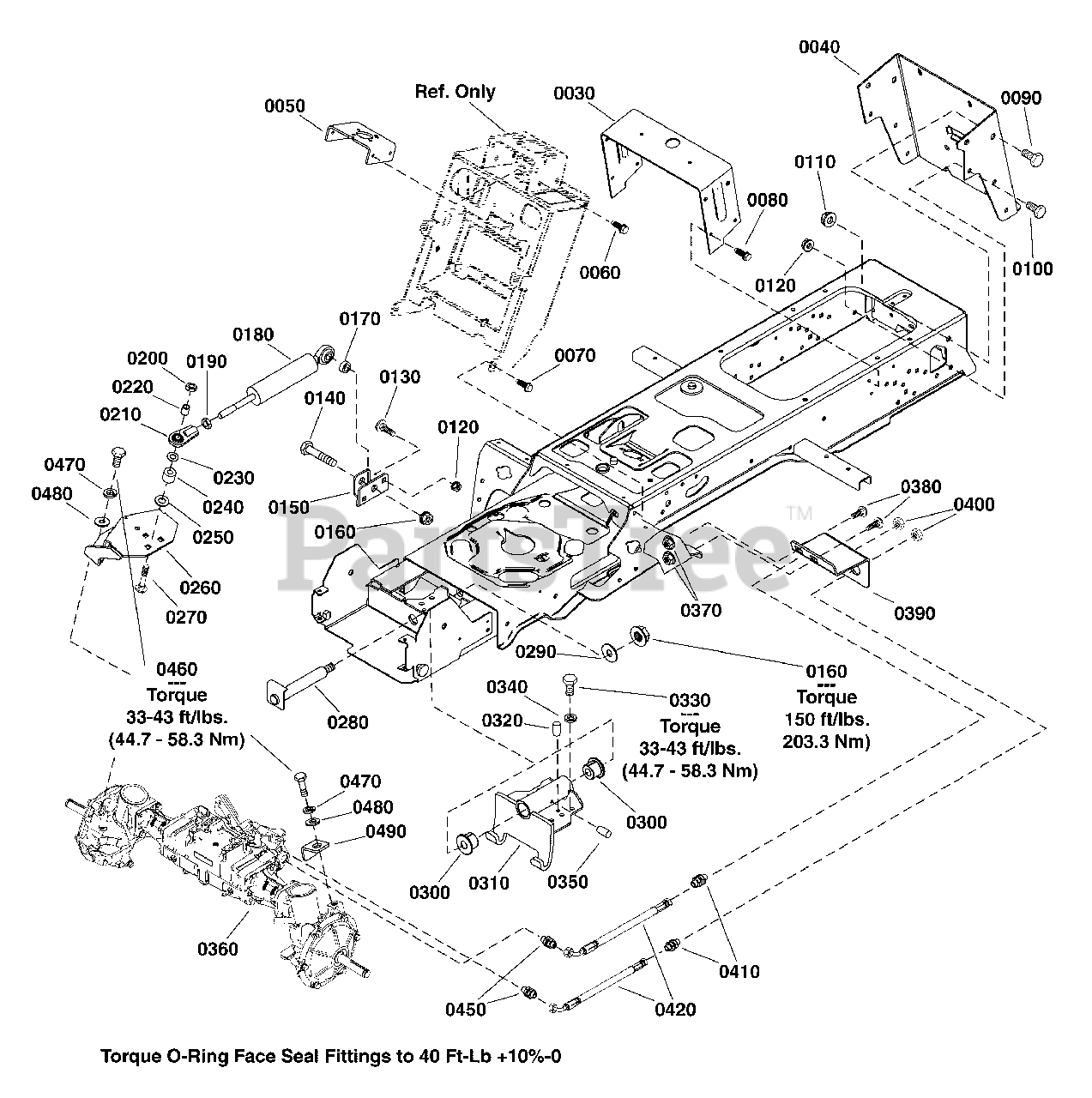

Frame & Front Axle Group Parts Diagram

  • Title

--

FRAME ASSEMBLY, Front & Rear 4WD

Note: (Not a serviceable part)

$

$

Not available

0030

Simplicity 1752878AYP

SUPPORT, Seat Deck

$39.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1755742AYP

PLATE, Back, Hitch

$116.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1733044ASM

SUPPORT, Steering Unit 7GA

$23.99

$

Usually ships in 2-12 days

0

0060

Simplicity 703985

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2

$4.49

$

In Stock, Qty 11

0

0070

Simplicity 703950

SCREW, Hex Washer Head, Thread Roll, 5/16-18 X 5/8

$5.49

$

In Stock, Qty 6

0

0080

Simplicity 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0090

Simplicity 1923114SM

CAPSCREW, Hex Head 1/2-13 x 1, Black

$3.99

$

In Stock, only 2 left!

0

0100

Simplicity 703407

CAPSCREW, Hex Head, 3/8-16 x 1, GR5

$11.99

$

In Stock, Qty 5

0

0110

Simplicity 703918

NUT, Hex Flange, Whiz Lock, 1/2-13

$3.49

$

Usually ships in 2-12 days

0

0120

Simplicity 703793

NUT, Lock, Flange, 3/8-16

$4.49

$

In Stock, Qty 9

0

0130

Simplicity 703448

BOLT, Carriage, 3/8-16 X 3/4, GR5

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 1960755SM

CAPSCREW, Hex Head, 5/8-11 x 2-1/2 G5

$6.49

$

Usually ships in 2-12 days

0

0150

Simplicity 1733166ASM

BRACKET, Cylinder Mounting

$21.99

$

Usually ships in 2-12 days

0

0160

Simplicity 2860646SM

NUT, Hex Flange, 5/8-11

$10.99

$

In Stock, Qty 8

0

0170

Simplicity 2172914SM

SPACER

$12.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1737058YP

CYLINDER, Hydraulic Steering

$457.99

$

In Stock, only 2 left!

0

0190

Simplicity 703903

NUT, Hex, Jam 1/2-20

$3.49

$

In Stock, only 2 left!

0

0200

Simplicity 2860681SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 11

0

0210

Simplicity 1702779SM

JOINT-BALL .500-20 THD .500ID

$28.99

$

In Stock, only 2 left!

0

0220

Simplicity 1708236SM

SPACER, 0.377 x 1/2 x 5/8"

$8.99

$

In Stock, only 2 left!

0

0230

Simplicity 1960103SM

WASHER, 3/8"

$4.49

$

Usually ships in 2-12 days

0

0240

Simplicity 1667812SM

SPACER, .390 ID .90 OD 0.70 Lg

$5.99

$

In Stock, only 2 left!

0

0250

Simplicity 703986

RETAINER, Pushnut, 3/8

$4.49

$

In Stock, Qty 10

0

0260

Simplicity 1733918ASM

BRACKET ASSEMBLY, Steering 4WD

$

$

Not available

0270

Simplicity 1931355SM

BOLT, Carriage, 3/8 -16

$5.99

$

In Stock, only 3 left!

0

0280

Simplicity 1733863SM

SHAFT & BRACKET ASSEMBLY, Axle Pivot

$109.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1960035SM

WASHER, 5/8

$4.49

$

In Stock, Qty 13

0

0300

Simplicity 1721682SM

BUSHING, 31/32 x 1-1/4 x 3/4, Powder Metal

$5.49

$

In Stock, Qty 20+

0

0310

Simplicity 1734241SM

AXLE PIVOT ASSY

$231.99

$

In Stock, only 1 left!

0

0320

Simplicity 1733581SM

PIN, Dowel

$5.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1950036SM

CAPSCREW, Hex Head, M10-1 1/2 x 25MM

$3.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1960754SM

LOCKWASHER, Spring

$3.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0360

Simplicity 1733480SM

FRONT AXLE, Tuff Torq KXH10NC

$3384.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1960636SM

NUT, Hex, 5/16-18

$4.99

$

In Stock, only 1 left!

0

0380

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0390

Simplicity 84001655

BRACKET, Hydraulic Hose

$22.99

$

Usually ships in 2-12 days

0

0400

Simplicity 1733947SM

NUT, Jam 13/16-16

$12.99

$

Usually ships in 2-12 days

0

0410

Simplicity 1733402SM

FITTING, Bulkhead Union 13/16-16

$41.99

$

Usually ships in 2-12 days

0

0420

Simplicity 84001656

HOSE, Hydraulic

$112.99

$

Usually ships in 2-12 days

0

0450

Simplicity 84001657

FITTING, Hose

$7.99

$

Usually ships in 2-12 days

0

0460

Simplicity 197487SM

CAPSCREW, Hex Head, M12-1-3/4 x 35

$3.99

$

Usually ships in 2-12 days

0

0470

Simplicity 703341

WASHER, Spring, 1/2

$4.49

$

Usually ships in 2-12 days

0

0480

Simplicity 703853

WASHER, 1/2

$4.99

$

In Stock, Qty 20+

0

0490

Simplicity 1734511ASM

STOP, "L" Steering

$13.99

$

Usually ships in 2-12 days

0
