2691480-01 - Simplicity Prestige 50" Garden Tractor, 27hp Hydraulic Group - Power Steering Parts Diagram

Prestige 50" Garden Tractor, 27hp

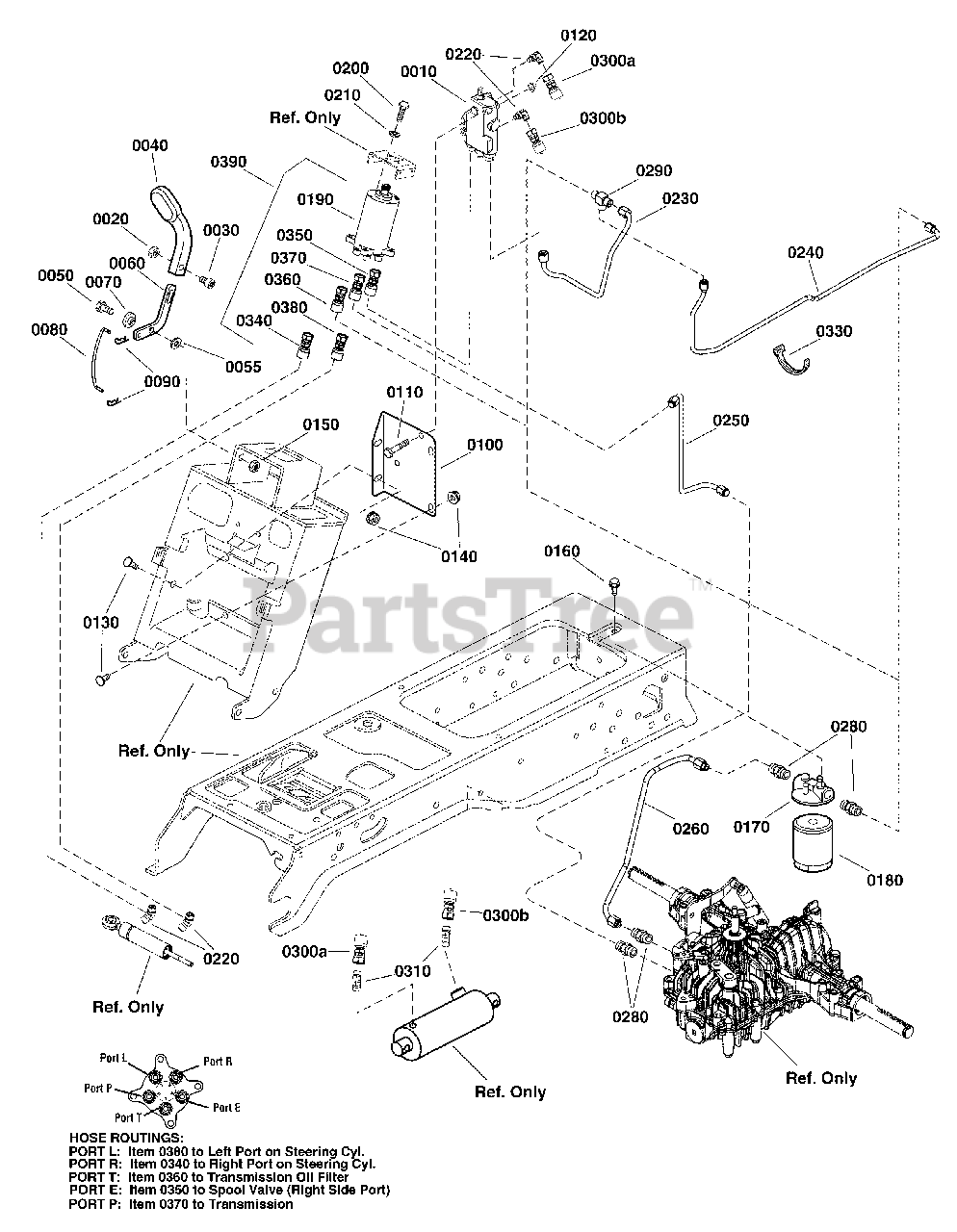

Hydraulic Group - Power Steering Parts Diagram

  • Title

0010

Simplicity 1717558SM

CONTROL VALVE, Single Spool

$670.99

$

Usually ships in 2-12 days

0

0020

Simplicity 703232

NUT, Hex Lock, 1/4-20, ESNA

$4.49

$

In Stock, Qty 20+

0

0030

Simplicity 703819

CAPSCREW, Hex Head, 1/4-20 X 7/8

$4.49

$

In Stock, only 1 left!

0

0040

Simplicity 1722146SM

HANDLE, Lift, Black

$14.99

$

Usually ships in 2-12 days

0

0050

Simplicity 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

Usually ships in 2-12 days

0

0055

Simplicity 703298

WASHER, 5/16

$4.49

$

In Stock, Qty 12

0

0060

Simplicity 1755961AYP

LEVER, Hydraulic Lift

$10.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1723244SM

SPACER, Pivot

$7.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1727557SM

ROD, Curved, 3/16 dia, x 5-3/32 Lg

$13.99

$

In Stock, only 2 left!

0

0090

Simplicity 703892

PIN, Cotter, 1/16 x3/4

$3.49

$

In Stock, Qty 5

0

0100

Simplicity 1721904ASM

SUPPORT, Control Valve

$23.99

$

Usually ships in 2-12 days

0

0110

Simplicity 703163

SCREW, 1/4-20 X 2.0, Hex Head Cap, GR5

$3.49

$

Usually ships in 2-12 days

0

0120

Simplicity 703914

NUT, Hex, 1/4-20

$3.49

$

In Stock, Qty 18

0

0130

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0140

Simplicity 1960636SM

NUT, Hex, 5/16-18

$4.99

$

In Stock, only 1 left!

0

0150

Simplicity 703902

NUT, Hex Nylock, 5/16-18

$3.99

$

In Stock, Qty 13

0

0160

Simplicity 1931646SM

SCREW, Hex Flange, 1/4-20 X 1/2

$4.49

$

In Stock, only 4 left!

0

0170

Simplicity 5023096SM

FILTER HEAD, Hydraulic

$52.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1719168SM

FILTER, Transmission Oil
(Superseded to 1719168YP)

$26.99

$

In Stock, Qty 13

0

0190

Simplicity 1732449SM

POWER STEERING UNIT, 32CC, 5 Ports

$

$

Not available

0200

Simplicity 2860444SM

CAPSCREW, Hex Hd., 6 mm-1.0 x 15 mm

$2.99

$

Usually ships in 2-12 days

0

0210

Simplicity 704133

LOCKWASHER, 1/4

$3.99

$

In Stock, only 2 left!

0

0220

Simplicity 1733230SM

FITTING, Hose Elbow Perma Push 9/16-18

$103.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1722135SM

TUBE, Hydraulic, 5 Bends

$53.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1722138SM

TUBE, Hydraulic, 8 Bends

$139.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1733727SM

TUBE, Hydraulic 3 Bends

$74.99

$

In Stock, only 1 left!

0

0260

Simplicity 1722297SM

TUBE, Hydraulic, 5 Bends

$70.99

$

In Stock, only 1 left!

0

0280

Simplicity 1722123SM

FITTING, Straight, 9/16-18, 11/16-16

$9.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1733211SM

FITTING, Tee, 3 Ports / Hydraulic Hose

$43.99

$

Usually ships in 2-12 days

0

0300a

Simplicity 1733216SM

HOSE ASSEMBLY, Hydraulic

$79.99

$

Usually ships in 2-12 days

0

0300b

Simplicity 1733216SM

HOSE ASSEMBLY, Hydraulic

$79.99

$

Usually ships in 2-12 days

0

0310

Simplicity 1722122SM

FITTING, Elbow, 45 Degree, 9/16-18, 1/4

$17.99

$

Usually ships in 2-12 days

0

0330

Simplicity 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1733893SM

HOSE ASSEMBLY, 27"

$84.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1733215SM

HOSE ASSEMBLY, 20"

$100.99

$

Usually ships in 2-12 days

0

0360

Simplicity 1733214SM

HOSE ASSEMBLY, 18"

$66.99

$

Usually ships in 2-12 days

0

0370

Simplicity 1733780SM

HOSE ASSEMBLY, 26"

$113.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1733595SM

HOSE ASSEMBLY, 31"

$86.99

$

Usually ships in 2-12 days

0

0390

Simplicity 1734134SM

POWER STEERING ASSEMBLY, 32CC, 5 Ports

Note: (Includes Ref Nos 0340 thru 0380)

$1094.99

$

Usually ships in 2-12 days

0
