2691523-02 - Simplicity Legacy XL Garden Tractor, 33hp Briggs & Stratton EFI Body Group Parts Diagram

Legacy XL Garden Tractor, 33hp Briggs & Stratton EFI

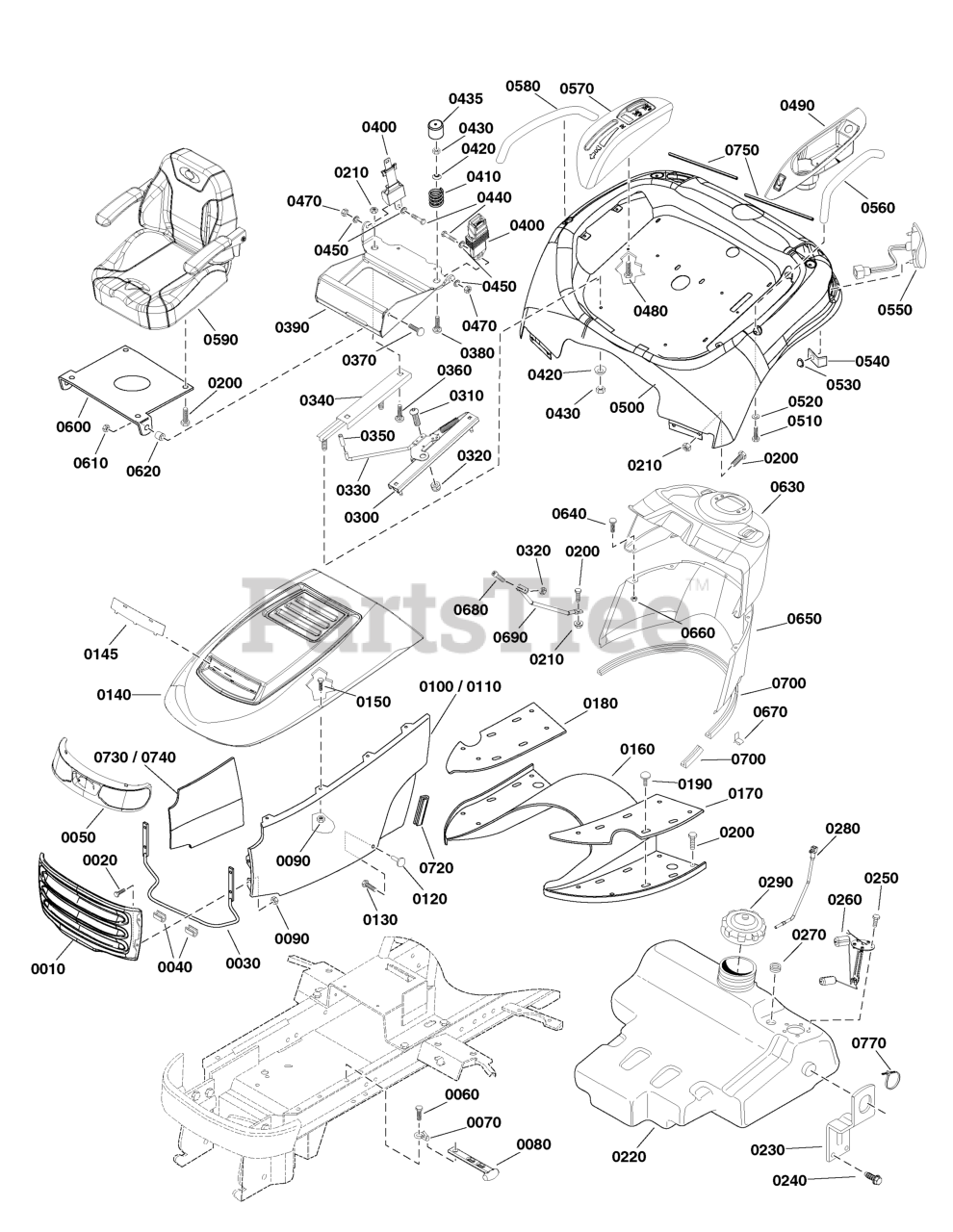

Body Group Parts Diagram

  • Title

0010

Simplicity 1760254CYP

GRILL, Legacy XL

$336.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1935450SM

CAPSCREW, Hex Flange Head, 1/4-20 x 3/4, G5

$4.49

$

Usually ships in 2-12 days

0

0030

Simplicity 1718479SM

ROD, Hood Hinge

$45.99

$

In Stock, only 1 left!

0

0040

Simplicity 1726454SM

CLIP. Hood

$5.49

$

Usually ships in 2-12 days

0

0050

Simplicity 1760219YP

HEADLIGHT ASSEMBLY

$192.99

$

Usually ships in 2-12 days

0

0060

Simplicity 704130

SCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 20+

0

0070

Simplicity 1723168SM

HOOK-.125DIA WIRE GR CAT STRAP YELLOW
(Superseded to 84003954)

$9.99

$

Usually ships in 2-12 days

0

0080

Simplicity 2171600SM

STRAP, Hood Rubber

$7.99

$

In Stock, Qty 20+

0

0090

Simplicity 703161

NUT, 1/4-20, Hex Flange Whiz Lock

$3.49

$

In Stock, Qty 20+

0

0100

Simplicity 1760298CYP

PANEL, Side LH

$319.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1760299CYP

PANEL, Side RH

$353.99

$

Usually ships in 2-12 days

0

0120

Simplicity 1726044SM

BINDING, Internal Thread, #8-32 X 1/2

$3.99

$

Usually ships in 2-12 days

0

0130

Simplicity 2860707SM

SCREW-HEX SERR FLNG LK # 8-32X0.375 YEL

$3.49

$

In Stock, only 2 left!

0

0140

Simplicity 1760246CYP

HOOD, Top

$963.99

$

Usually ships in 2-12 days

0

0145

Simplicity 1760245CKYP

INSERT, Mesh Scoop

$26.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1960295SM

CAPSCREW, Hex Flange, Whiz Lock, 1/4-20 x 5/8

$4.49

$

Usually ships in 2-12 days

0

0160

Simplicity 1724268CSM

TUNNEL, Legacy XL

$329.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1724579SM

PAD, Footrest, L.H.

$48.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1724580SM

PAD, Footrest, R.H.

$48.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1704351SM

FASTENER, Panel, 3/4 0D x 11/16

$4.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1960667SM

CAPSCREW, Hex Flange Whiz Lock Dog Point, 5/16-18 x 1

$4.99

$

Usually ships in 2-12 days

0

0210

Simplicity 703222

NUT, Hex, KEPS, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0220

Simplicity 1753620YP

TANK, Fuel, With Vent Fitting

$592.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1716927ASM

SUPPORT, Fuel Tank

$21.99

$

Usually ships in 2-12 days

0

0240

Simplicity 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0250

Simplicity 2860665SM

SCREW, Pan Head, Torx, 10-32 x 1/2

$3.49

$

Usually ships in 2-12 days

0

0260

Simplicity 1737522YP

SENDER, Fuel
(Superseded to 84003834)

$48.99

$

In Stock, only 1 left!

0

0270

Simplicity 1654930SM

BUSHING, Fuel Tank

$7.99

$

In Stock, Qty 10

0

0280

Simplicity 1726917SM

TUBE ASSEMBLY, Fuel With Screen

$34.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1761224YP

CAP, Fuel

$48.99

$

In Stock, only 1 left!

0

0300

Simplicity 1717068SM

SLIDER ASSEMBLY, LH, Main

Note: ( Incl. Ref. No. 0330 )

$69.99

$

Usually ships in 2-12 days

0

0310

Simplicity 5025179X4SM

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$3.99

$

Usually ships in 2-12 days

0

0320

Simplicity 703412

NUT, Nylock, #10-24

$4.49

$

In Stock, Qty 10

0

0330

Simplicity 1717002SM

ROD, Seat Slide

Note: ( Included with Ref. No. 0300 )

$11.99

$

Usually ships in 2-12 days

0

0340

Simplicity 1717009SM

SLIDER ASSEMBLY, RH, Slave

$29.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1704723SM

GRIP, Black Vinyl

$3.49

$

In Stock, only 1 left!

0

0360

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0370

Simplicity 703815

BOLT, Carriage, 3/8-16 X 1

$4.49

$

In Stock, Qty 5

0

0380

Simplicity 703800

BOLT, Carriage, 5/16-18 X 1

$3.99

$

In Stock, Qty 16

0

0390

Simplicity 84003610

SUPPORT, Seat Lower

$188.99

$

Usually ships in 2-12 days

0

0400

Simplicity 5105137YP

SEAT BELT ASSM, RETRACTOR + SUP SLEEVE

$130.99

$

Usually ships in 2-12 days

0

0410

Simplicity 1704728SM

SPRING, Compression, 2"

$9.99

$

In Stock, only 2 left!

0

0420

Simplicity 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

Usually ships in 2-12 days

0

0430

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 7

0

0435

Simplicity 1704724SM

COVER, Spring, 1-1/2"

$7.99

$

In Stock, only 1 left!

0

0440

Simplicity 770498

CAPSCREW, Sockethead, 1/2-13 X 1 1/4

$6.99

$

Usually ships in 2-12 days

0

0450

Simplicity 703128

WASHER, 33/64 x .7/8 OD

$3.49

$

In Stock, Qty 20+

0

0470

Simplicity 770225

NUT, Flange, Nylock, 1/2-13

$3.49

$

In Stock, Qty 12

0

0480

Simplicity 770759

CAPSCREW, Hex Washer Head, #12-24 x 5/8

$4.99

$

Usually ships in 2-12 days

0

0490

Simplicity 1725290SM

POD, Legacy XL, L.H.

$46.99

$

Usually ships in 2-12 days

0

0500

Simplicity 84003583

DECK, Seat

$980.99

$

Usually ships in 2-12 days

0

0510

Simplicity 703822

CAPSCREW, Hex Head, 5/16 - 18 x 5/8, G5

$4.49

$

In Stock, only 2 left!

0

0520

Simplicity 1960044SM

WASHER, Flat, 5/16

$4.49

$

In Stock, Qty 11

0

0530

Simplicity 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0540

Simplicity 1718048SM

CLIP, "L"

$10.99

$

Usually ships in 2-12 days

0

0550

Simplicity 1715915SM

TAIL LIGHT, Assembly (Includes Bulb)

$68.99

$

Usually ships in 2-12 days

0

0560

Simplicity 1716335SM

HANDLE, Grab, L.H., Black

$75.99

$

Usually ships in 2-12 days

0

0570

Simplicity 1726823SM

POD-BLACK PLASTIC CRU

$182.99

$

Usually ships in 2-12 days

0

0580

Simplicity 1716336SM

HANDLE, Grab, RH, Black

$77.99

$

Usually ships in 2-12 days

0

0590

Simplicity 1759792YP

SEAT

$1014.99

$

Usually ships in 2-12 days

0

0600

Simplicity 1759978CKYP

PAN, Seat

$112.99

$

Usually ships in 2-12 days

0

0610

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0620

Simplicity 1663752SM

SPACER, 25/64 x 5/8 x 3/16

$5.99

$

In Stock, only 4 left!

0

0630

Simplicity 1724171SM

DASH, Upper, Black, Gas

$518.99

$

Usually ships in 2-12 days

0

0640

Simplicity 1960252SM

BOLT, Carriage, 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

0650

Simplicity 1725031ASM

DASH, Lower, Black, Gas

$128.99

$

Usually ships in 2-12 days

0

0660

Simplicity 703061

NUT, 1/4-20, Keps, Conical Washer

$3.49

$

In Stock, only 3 left!

0

0670

Simplicity 1717523SM

CLIP, "U"

$3.49

$

Usually ships in 2-12 days

0

0680

Simplicity 1960392SM

SCREW, Pan Head Phillips, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

0690

Simplicity 1724869SM

ROD, Dash Support

$23.99

$

Usually ships in 2-12 days

0

0700

Simplicity 1725680SM

EDGING

$

$

Not available

0720

Simplicity 1726482SM

EDGING, Side Panel

$5.99

$

Usually ships in 2-12 days

0

0730

Simplicity 1727053SM

INSULATION-FOAM 0.50 THK 12.62 X 15.37LH

$36.99

$

Usually ships in 2-12 days

0

0740

Simplicity 1727054SM

INSULATION-FOAM 0.50 THK 12.62 X 15.37RH

$45.99

$

Usually ships in 2-12 days

0

0750

Simplicity 84003612

EDGING

$

$

Currently unavailable

0770

Simplicity 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0
