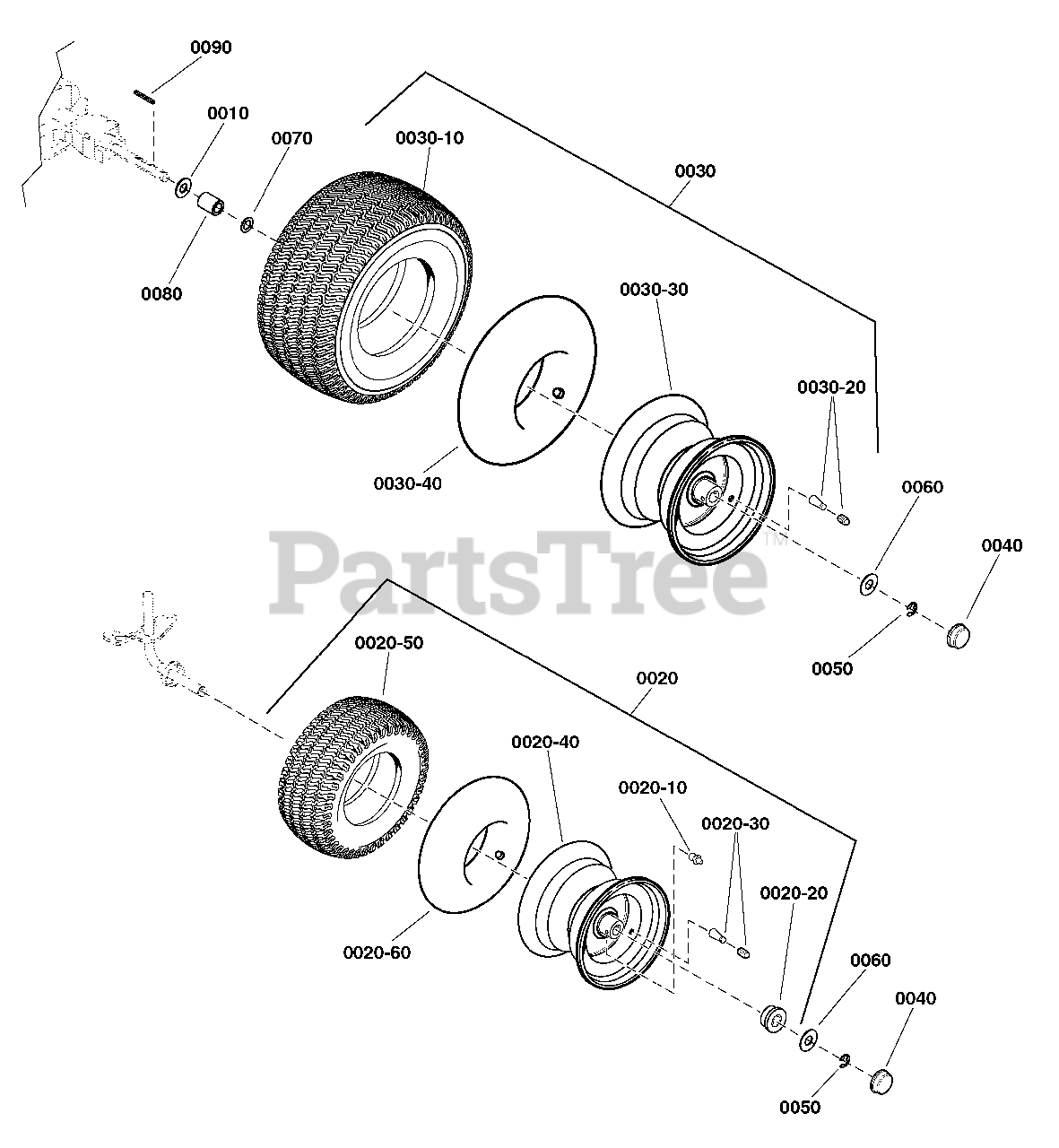

2691668-02 - Simplicity Regent S 44" Lawn Tractor, 25hp Briggs & Stratton Wheels & Tires Parts Diagram

Regent S 44" Lawn Tractor, 25hp Briggs & Stratton

Wheels & Tires Parts Diagram

  • Title

0010

Simplicity 2860202SM

WASHER, 3/4 x 1-5/8 OD x 1/8 Thick

$4.49

$

In Stock, Qty 20+

0

0020

Simplicity 1761282YP

WHEEL AND TIRE ASSEMBLY, Front, 15 x 6-6

$280.99

$

Usually ships in 2-12 days

0

0020-10

Simplicity 2812808SM

FITTING, Lube, 1/4

$4.99

$

In Stock, Qty 20+

0

0020-20

Simplicity 1713167SM

BEARING
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

0020-30

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$8.49

$

Usually ships in 2-12 days

0

0020-40

WHEEL, Front, 6"

Note: (Refer to Note: *)

$

$

Not available

0020-50

TIRE, 15 x 6 2 Ply K505

Note: (Refer to Note: *)

$

$

Not available

0020-60

Simplicity 1664090SM

TUBE, Tire, Front

$28.99

$

In Stock, only 2 left!

0

0030

Simplicity 1761285YP

WHEEL & TIRE ASSEMBLY, 22 x 10 - 8

$433.99

$

Usually ships in 2-12 days

0

0030-10

TIRE, 22 x 10-8, K505

Note: (Refer to Note: *)

$

$

Not available

0030-20

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$8.49

$

Usually ships in 2-12 days

0

0030-30

RIM

Note: (Refer to Note: *)

$

$

Not available

0030-40

Simplicity 2173477SM

TUBE

$90.99

$

In Stock, only 2 left!

0

0040

Simplicity 094618MA

HUB CAP

$5.99

$

In Stock, Qty 20+

0

0050

Simplicity 2827794SM

RING, Klipring EXT For .75 Dia Shaft blk

$3.49

$

In Stock, Qty 9

0

0060

Simplicity 17X195MA

WASHER, Flat 1-3/4

$4.99

$

In Stock, Qty 20+

0

0070

Simplicity 17X160MA

WASHER, Flat, 3/4 x 1-1/4 x 16

$4.99

$

In Stock, only 4 left!

0

0080

Simplicity 1730181SM

SPACER, 3/4 ID x 1-1/4 OD x 1-5/8

$9.99

$

Usually ships in 2-12 days

0

0090

Simplicity MU021553MA

Key, Square

$

$

Currently unavailable
