2691676-01 - Simplicity Conquest 52" Garden Tractor, 25hp Seat Group Parts Diagram

Conquest 52" Garden Tractor, 25hp

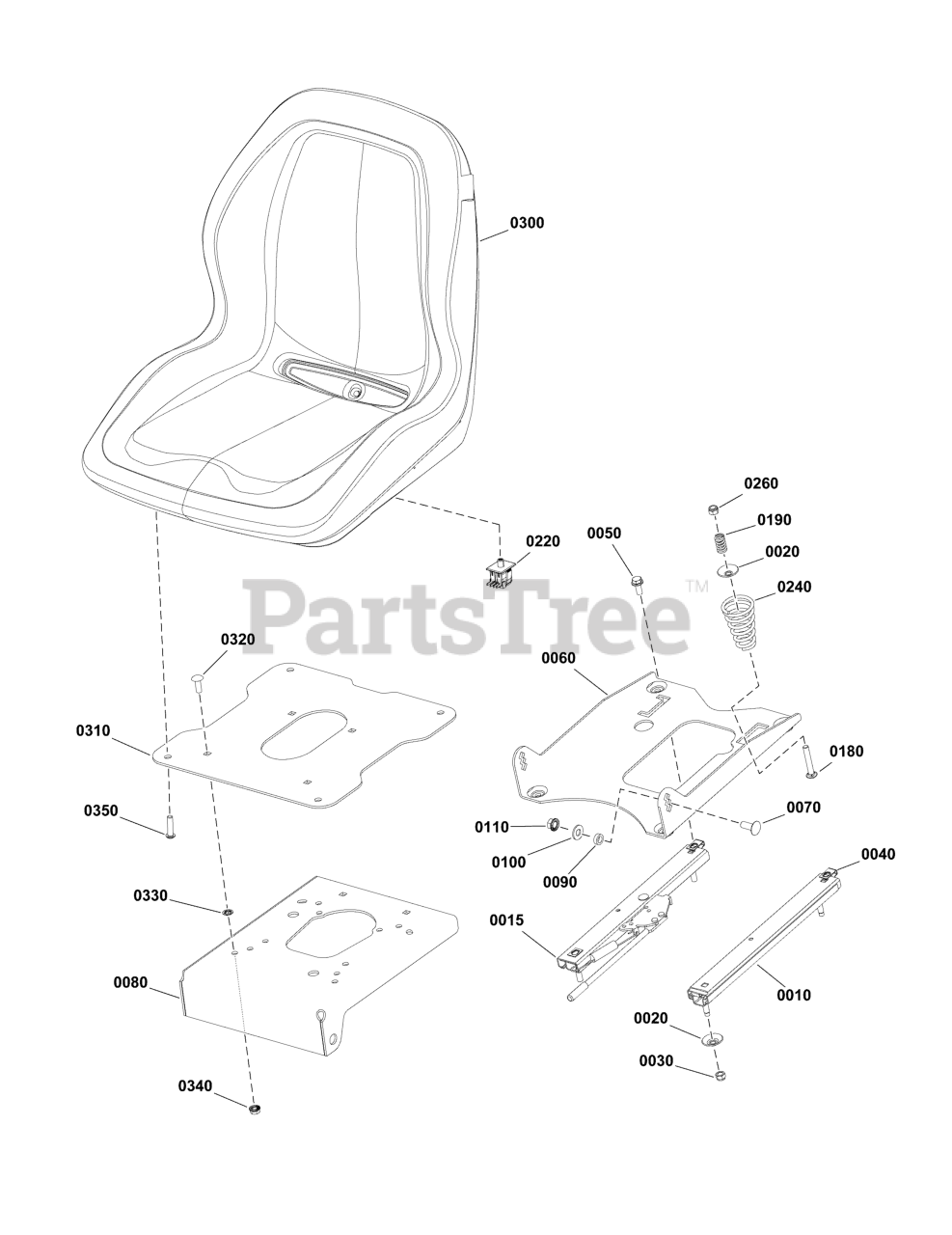

Seat Group Parts Diagram

  • Title

0010

Simplicity 1755623AYP

BRACKET, Seat Support

$128.99

$

Usually ships in 2-12 days

0

0015

Simplicity 1722356SM

SLIDE-SEAT VIPER (2 PC SEAT)

$65.99

$

In Stock, only 1 left!

0

0020

Simplicity 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$6.49

$

In Stock, only 4 left!

0

0030

Simplicity 703902

NUT, HEX, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0040

Simplicity 1935255SM

NUT, SPEED, 5/16-18 L

$3.49

$

In Stock, only 2 left!

0

0050

Simplicity 703354

SCREW, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0060

Simplicity 1722128ASM

SUPPORT, Seat

$93.99

$

Usually ships in 2-12 days

0

0070

Simplicity 703815

BOLT, RD SQ 3/8-16X1

$4.49

$

In Stock, Qty 20+

0

0080

Simplicity 1755623AYP

BRACKET, Seat Support

$128.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1663752SM

SPACER, 25/64 x 5/8 x 3/16

$6.49

$

In Stock, Qty 10

0

0100

Simplicity 703878

WASHER, FLAT

$3.99

$

In Stock, Qty 20+

0

0110

Simplicity 703893

NUT, CNTR LCK, 3/8-16

$6.99

$

In Stock, Qty 20+

0

0180

Simplicity 704035

BOLT, CRRG, 5/16-18X2

$4.49

$

In Stock, only 2 left!

0

0190

Simplicity 1714263SM

SPRING, Compression

$5.49

$

Usually ships in 2-12 days

0

0220

Simplicity 5101280YP

SWITCH, LOW PROF, NC/

$32.99

$

In Stock, Qty 10

0

0240

Simplicity 1717051SM

SPRING, Seat

$14.99

$

In Stock, Qty 20+

0

0260

Simplicity 703115

NUT

$3.49

$

In Stock, Qty 20+

0

0300

Simplicity 84007610

SEAT

$342.99

$

Usually ships in 2-12 days

0

0310

Simplicity 84003735

ADAPTER

$86.99

$

Usually ships in 2-12 days

0

0320

Simplicity 704065

BOLT, 5/16-18X.875

$4.49

$

In Stock, only 4 left!

0

0330

Simplicity 703297

RETAINER, GR5, 5/16

$3.99

$

In Stock, Qty 20+

0

0340

Simplicity 703409

NUT, 5/16-18, GR5

$5.99

$

In Stock, Qty 20+

0

0350

Simplicity 703172

SCREW

$4.49

$

Usually ships in 2-12 days

0
