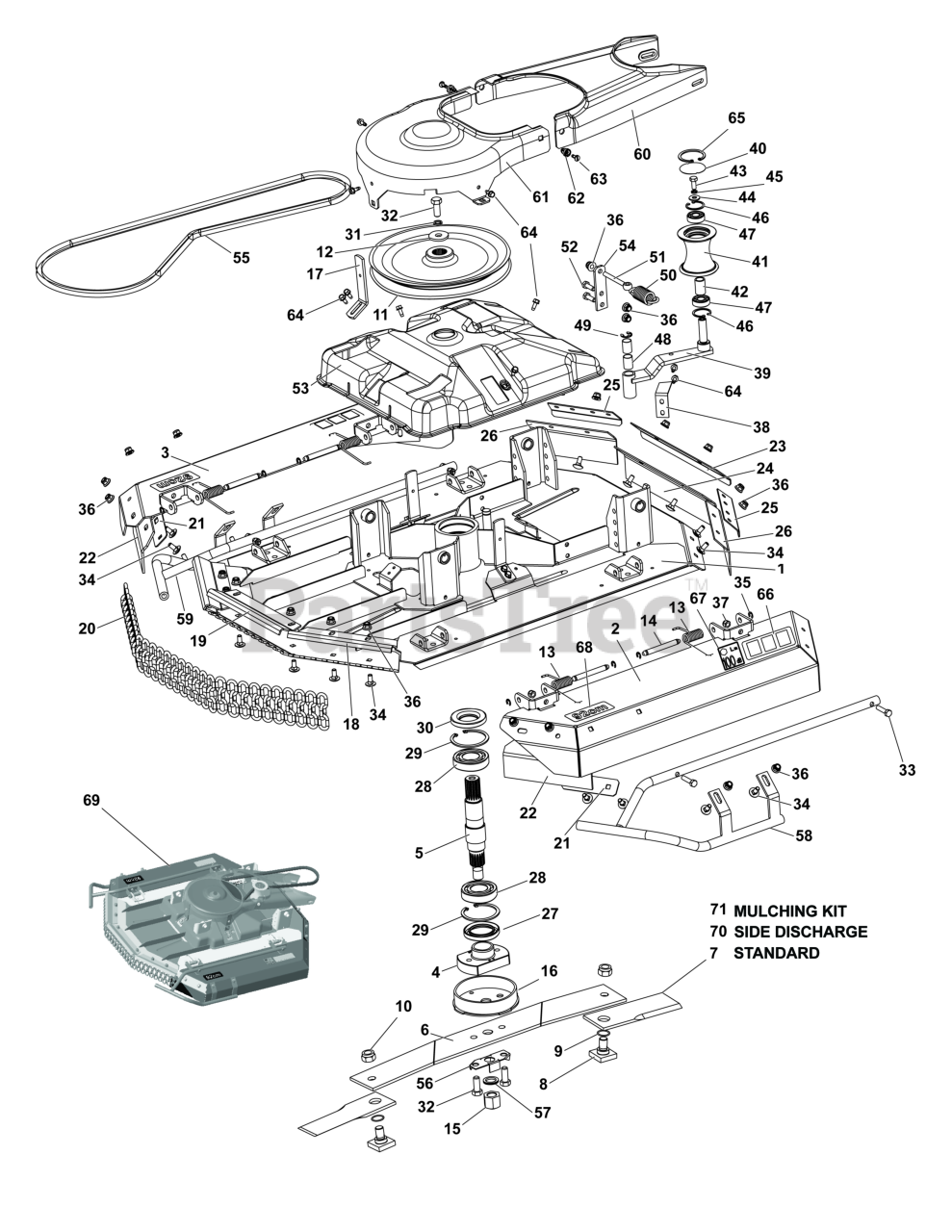

2691744-00 - Billy Goat Rear-Engine Riding Mower Mower Deck Group Parts Diagram

Rear-Engine Riding Mower

Mower Deck Group Parts Diagram

  • Title

1

84011731

MOWER DECK

$

$

Not available

2

84011732

FENDER, Left

$

$

Not available

3

84011733

FENDER, Right

$

$

Not available

4

84011734

ADAPTER, Blade

$

$

Not available

5

84011735

SHAFT

$

$

Not available

6

84011736

HUB, Blade

$

$

Not available

7

84011737

BLADE SET

$

$

Not available

8

BLADE SCREW

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

9

84011739

RING

$

$

Not available

10

84011740

NUT

$

$

Not available

11

84012799

PULLEY

$

$

Not available

12

WASHER

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

13

84011742

SPRING

$

$

Not available

14

84011743

PIN

$

$

Not available

15

84011744

NUT

$

$

Not available

16

84011745

CAP

$

$

Not available

17

84011746

STOPPER

$

$

Not available

18

84011747

BRACKET

$

$

Not available

19

84011748

BRACKET

$

$

Not available

20

84011749

CHAIN

$

$

Not available

21

84011750

SHIELD

$

$

Not available

22

84011751

SHIELD

$

$

Not available

23

84011752

SHIELD

$

$

Not available

24

84011753

SHIELD

$

$

Not available

25

84011754

SHIELD

$

$

Not available

26

84011755

SHIELD

$

$

Not available

27

84011756

SEAL

$

$

Not available

28

84011757

BEARING

$

$

Not available

29

84011758

CLIP

$

$

Not available

30

84011759

SEAL

$

$

Not available

31

WASHER 12

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

32

SCREW M12X30

Note: Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

33

SCREW M8X35

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

34

SCREW M8X20

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

35

Billy Goat 84012364

RING, Locking

$

$

Currently unavailable

36

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

37

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

38

84011760

STOPPER

$

$

Not available

39

84011761

HOLDER

$

$

Not available

40

84012800

COVER, Pulley

$

$

Not available

41

84011763

PULLEY

$

$

Not available

42

84011764

SPACER

$

$

Not available

43

SCREW M8X20

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

44

WASHER 9

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

45

WASHER 8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

46

Billy Goat 84012000

CLIP

$

$

Currently unavailable

47

Billy Goat 84011999

BEARING

$

$

Currently unavailable

48

Billy Goat 84011766

BUSHING

$

$

Currently unavailable

49

Billy Goat 84011996

CLIP

$

$

Currently unavailable

50

84012801

SPRING

$

$

Not available

51

84011768

SCREW

$

$

Not available

52

SCREW M8X25

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

53

84011769

COVER

$

$

Not available

54

84011770

STOPPER

$

$

Not available

55

84012802

V-BELT

$

$

Not available

56

84011772

WASHER

$

$

Not available

57

84011773

WASHER

$

$

Not available

58

84011774

RAIL, Left

$

$

Not available

59

84011775

RAIL, Right

$

$

Not available

60

84011777

COVER, Belt

$

$

Not available

61

84011776

COVER, Belt

$

$

Not available

62

Billy Goat 84011467

CLIP

$

$

Currently unavailable

63

Billy Goat 84011468

PIN

$

$

Currently unavailable

64

SCREW M6X16

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

65

Billy Goat 84012240

CLIP

$

$

Currently unavailable

66

Billy Goat 84011974

DECAL

$

$

Currently unavailable

67

Billy Goat 84011973

DECAL

$

$

Currently unavailable

68

N283293243

DECAL

$

$

Not available

69

S532986015973

CUTTER

$

$

Not available

70

S532986019003

DISCHARGE

$

$

Not available

71

S532986016953

KIT, MULCHING

$

$

Not available
