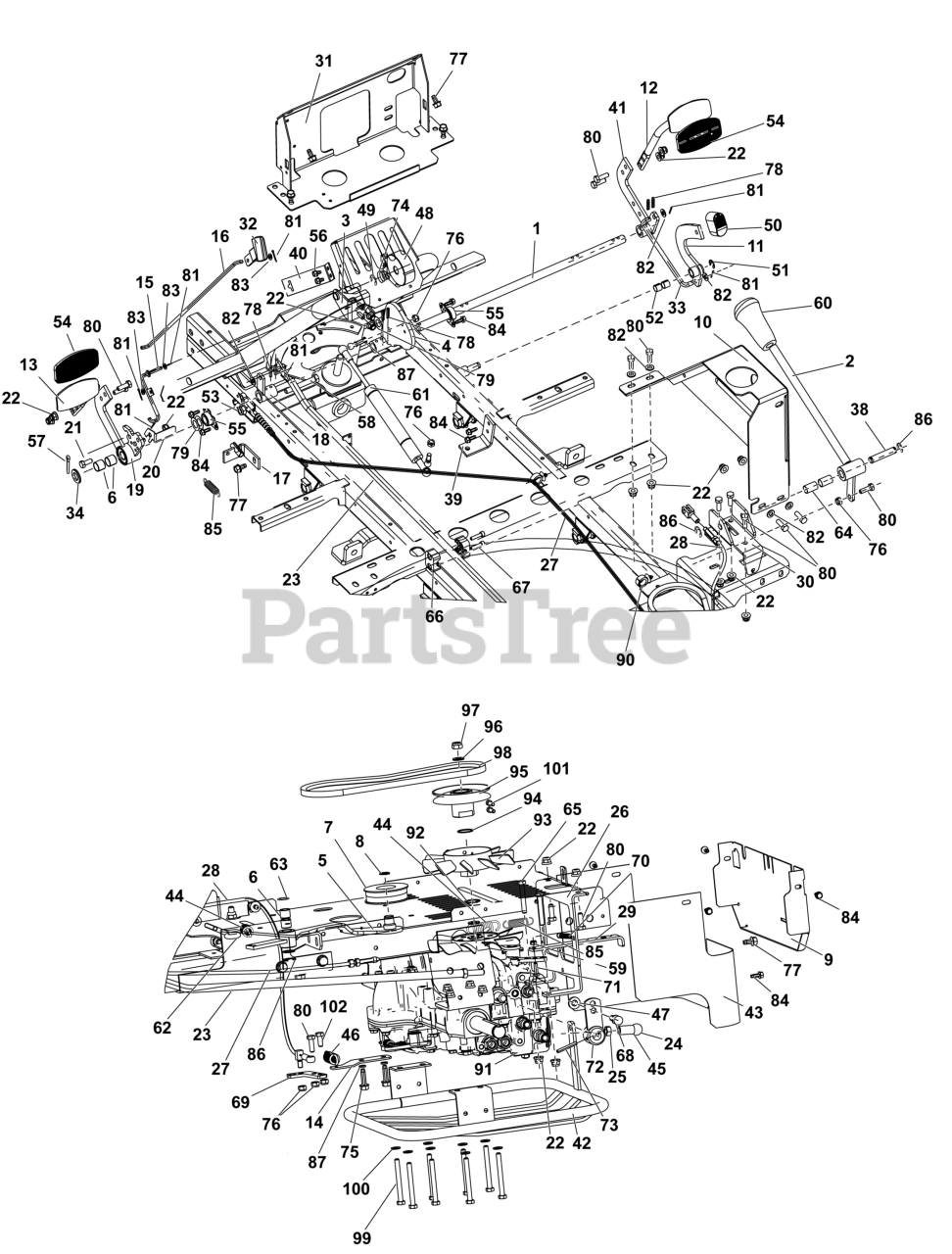

2691819-00 - Billy Goat Rear-Engine Riding Mower Controls Group Parts Diagram

Rear-Engine Riding Mower

Controls Group Parts Diagram

  • Title

1

84011779

SHAFT

$

$

Not available

2

84011781

LEVER

$

$

Not available

3

84011782

HOLDER

$

$

Not available

4

84011783

LEVER

$

$

Not available

5

84011784

HOLDER

$

$

Not available

6

84011785

BUSHING

$

$

Not available

7

84011786

PULLEY

$

$

Not available

8

84011787

CLIP

$

$

Not available

9

84011788

COVER, Rear

$

$

Not available

10

84011789

BRACKET

$

$

Not available

11

84011780

PEDAL

$

$

Not available

12

84011790

PEDAL

$

$

Not available

13

84011791

PEDAL ASSEMBLY

$

$

Not available

14

84011792

STOPPER

$

$

Not available

15

84011793

LEVER

$

$

Not available

16

84011794

ROD, Brake

$

$

Not available

17

84011795

STOPPER

$

$

Not available

18

84011796

LEVER

$

$

Not available

19

84011797

BRAKE, Pedal

$

$

Not available

20

84011851

SPRING

$

$

Not available

21

SCREW M8X20

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

22

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

23

84011801

ROD

$

$

Not available

24

Billy Goat 84011802

JOINT, Ball

$

$

Currently unavailable

25

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

26

84011803

HOLDER

$

$

Not available

27

84011804

CABLE

$

$

Not available

28

84011805

CONNECTOR

$

$

Not available

29

84011806

ROD

$

$

Not available

30

84011807

LEVER

$

$

Not available

31

84011808

HOLDER

$

$

Not available

32

84011809

HANDLE

$

$

Not available

33

84011810

ROD

$

$

Not available

34

WASHER 17

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

38

84011815

PIN

$

$

Not available

39

84011816

HOLDER

$

$

Not available

40

84011817

GUIDE

$

$

Not available

41

84011829

PEDAL

$

$

Not available

42

84011819

FRAME

$

$

Not available

43

84011820

COVER

$

$

Not available

44

84011821

SPRING

$

$

Not available

45

Billy Goat 84011822

JOINT, Ball

$

$

Currently unavailable

46

Billy Goat 84011847

SPRING

$

$

Currently unavailable

47

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

48

84011825

MAGNET

$

$

Not available

49

Billy Goat 84011996

CLIP

$

$

Currently unavailable

50

Billy Goat 84011826

PAD, Foot

$

$

Currently unavailable

51

84011827

CLIP

$

$

Not available

52

84012818

HOUSING

$

$

Not available

53

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

54

84011830

PAD, Foot

$

$

Not available

55

84011831

BEARING

$

$

Not available

56

SCREW M6X10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

57

84012805

PIN

$

$

Not available

58

SCREW M10X70

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

59

NUT M6

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

60

84011834

GRIP, Handle

$

$

Not available

61

84011835

DAMPENER

$

$

Not available

62

84011836

EYE BOLT

$

$

Not available

63

Billy Goat 84012216

WASHER

$

$

Currently unavailable

64

84011838

BEARING

$

$

Not available

65

SCREW M5X35

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

66

84011843

CLAMP

$

$

Not available

67

SCREW M6X25

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

68

Billy Goat 84012206

JOINT, Ball

$

$

Currently unavailable

69

Billy Goat 84011370

FOOT, Mounting

$

$

Currently unavailable

70

84011848

SPRING

$

$

Not available

71

SCREW M6X20

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

72

Billy Goat 84011849

LEVER

$

$

Currently unavailable

73

Billy Goat 84012199

PIN

$

$

Currently unavailable

74

84011850

SPRING

$

$

Not available

75

SCREW M8X30

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

76

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

77

SCREW M8X16

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

78

84011824

PIN

$

$

Not available

79

WASHER 16X28X0.5 DIN988

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

80

SCREW M8X25

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

81

84012803

PIN

$

$

Not available

82

WASHER 8.4

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

83

WASHER 6.4

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

84

SCREW M6X16

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

85

Billy Goat 84011832

SPRING

$

$

Currently unavailable

86

Billy Goat 84011996

CLIP

$

$

Currently unavailable

87

WASHER 8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

90

Billy Goat 84011903

CLIP

$

$

Currently unavailable

91

84011702

TRANSMISSION

$

$

Not available

92

84012804

RING, Locking

$

$

Not available

93

84011840

FAN

$

$

Not available

94

84011823

O-RING

$

$

Not available

95

84011839

PULLEY

$

$

Not available

96

WASHER 10.5

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

97

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

98

84011845

BELT

$

$

Not available

99

SCREW M6X25

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

100

WASHER 8.4

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

101

Screw M 6X20 DIN 912 8.8 ZINK

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

102

SCREW M8X16

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available
