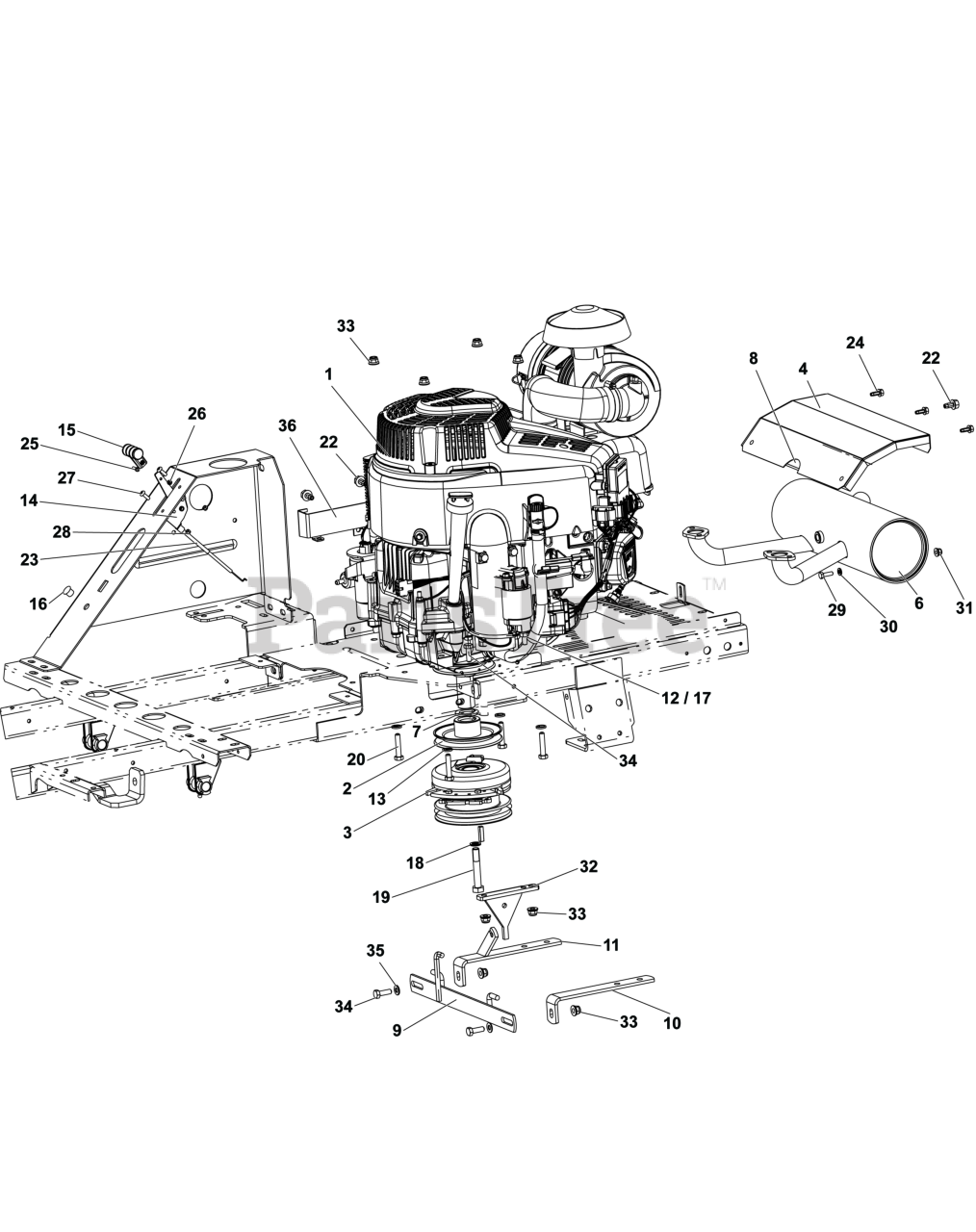

2691819-00 - Billy Goat Rear-Engine Riding Mower Engine Group Parts Diagram

Rear-Engine Riding Mower

Engine Group Parts Diagram

  • Title

1

49E877-0019-B5

ENGINE, 28 HP VANGUARD EFI

Note: ( Refer to Note: *) (Engine Model: 49E877-0019-B5 )Note:* Refer to your local Briggs & Stratton distributor for parts and service.

$

$

Not available

2

84011651

PULLEY

$

$

Not available

3

84011652

CLUTCH

$

$

Not available

4

84011653

SHIELD, Protective

$

$

Not available

6

84011654

EXHAUST

$

$

Not available

7

84011655

WASHER

$

$

Not available

8

84011656

ISOLATOR

$

$

Not available

9

84011657

STOPPER

$

$

Not available

10

84011658

PLATE

$

$

Not available

11

84011659

PLATE

$

$

Not available

12

Billy Goat 84012042

NUT

$

$

Currently unavailable

13

84011660

WASHER

$

$

Not available

14

84011661

LEVER, Throttle

$

$

Not available

15

84011662

HANDLE, Throttle

$

$

Not available

16

Billy Goat 84011663

FLANGE

$

$

Currently unavailable

17

WASHER 6

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

18

Billy Goat 84011664

WASHER

$

$

Currently unavailable

19

84011665

SCREW

$

$

Not available

20

SCREW M8X40

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

22

SCREW M8X16

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

23

84012794

TUBE

$

$

Not available

24

SCREW M6X16

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

25

SCREW M4X14

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

26

NUT M4

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

27

SCREW M5X16

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

28

NUT M5

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

29

SCREW M6X20

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

30

WASHER 6.4

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

31

NUT

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

32

84011666

STOPPER

$

$

Not available

33

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

34

SCREW M8X25

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

35

WASHER 8.4

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

36

84011667

HOLDER

$

$

Not available
