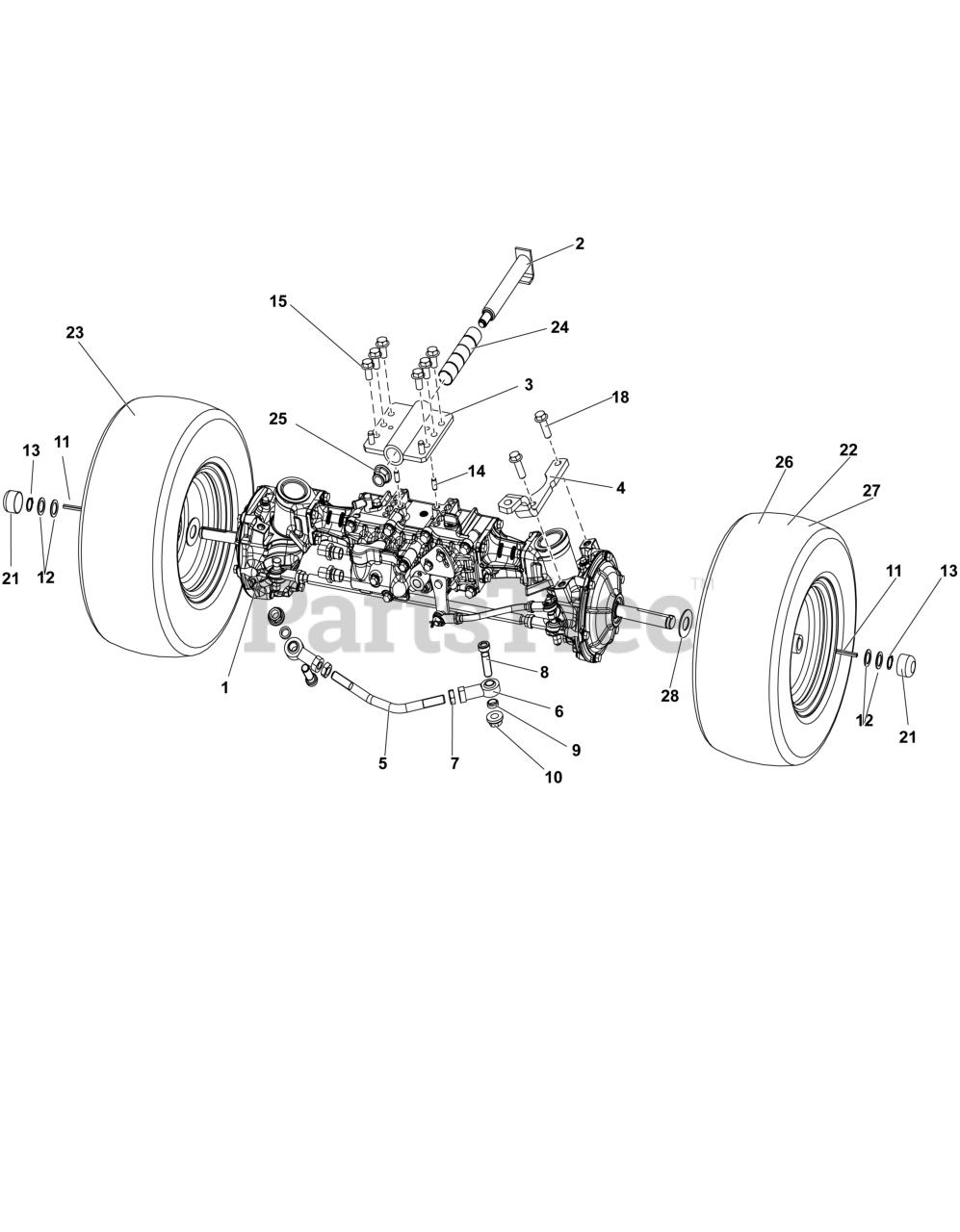

2691819-00 - Billy Goat Rear-Engine Riding Mower Front Axle Group Parts Diagram

Rear-Engine Riding Mower

Front Axle Group Parts Diagram

  • Title

1

84011676

FRONT AXLE ASSEMBLY

$

$

Not available

2

84011677

PIN

$

$

Not available

3

84011678

HOLDER

$

$

Not available

4

84011679

ARM, Lever

$

$

Not available

5

84011680

ARM, Control

$

$

Not available

6

84011681

JOINT, Ball

$

$

Not available

7

NUT M 14

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

8

84011682

BOLT

$

$

Not available

9

84011683

SPACER

$

$

Not available

10

84011684

NUT

$

$

Not available

11

84012795

SPRING

$

$

Not available

12

84011686

WASHER

$

$

Not available

13

Billy Goat 84011687

RING, Locking

$

$

Currently unavailable

14

84012059

PIN

$

$

Not available

15

SCREW M10X25

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

18

SCREW M12X30

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

21

84011688

CAP, Vinyl

$

$

Not available

22

84011689

KIT, Wheel & Tire Left

$

$

Not available

23

84011690

KIT, Wheel & Tire Right

$

$

Not available

24

84011691

BUSHING

$

$

Not available

25

NUT M16

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

26

84011692

TIRE

$

$

Not available

27

84012061

RIM

$

$

Not available

28

84012060

WASHER

$

$

Not available
