2691819-00 - Billy Goat Rear-Engine Riding Mower Mower Deck Group Parts Diagram

Rear-Engine Riding Mower

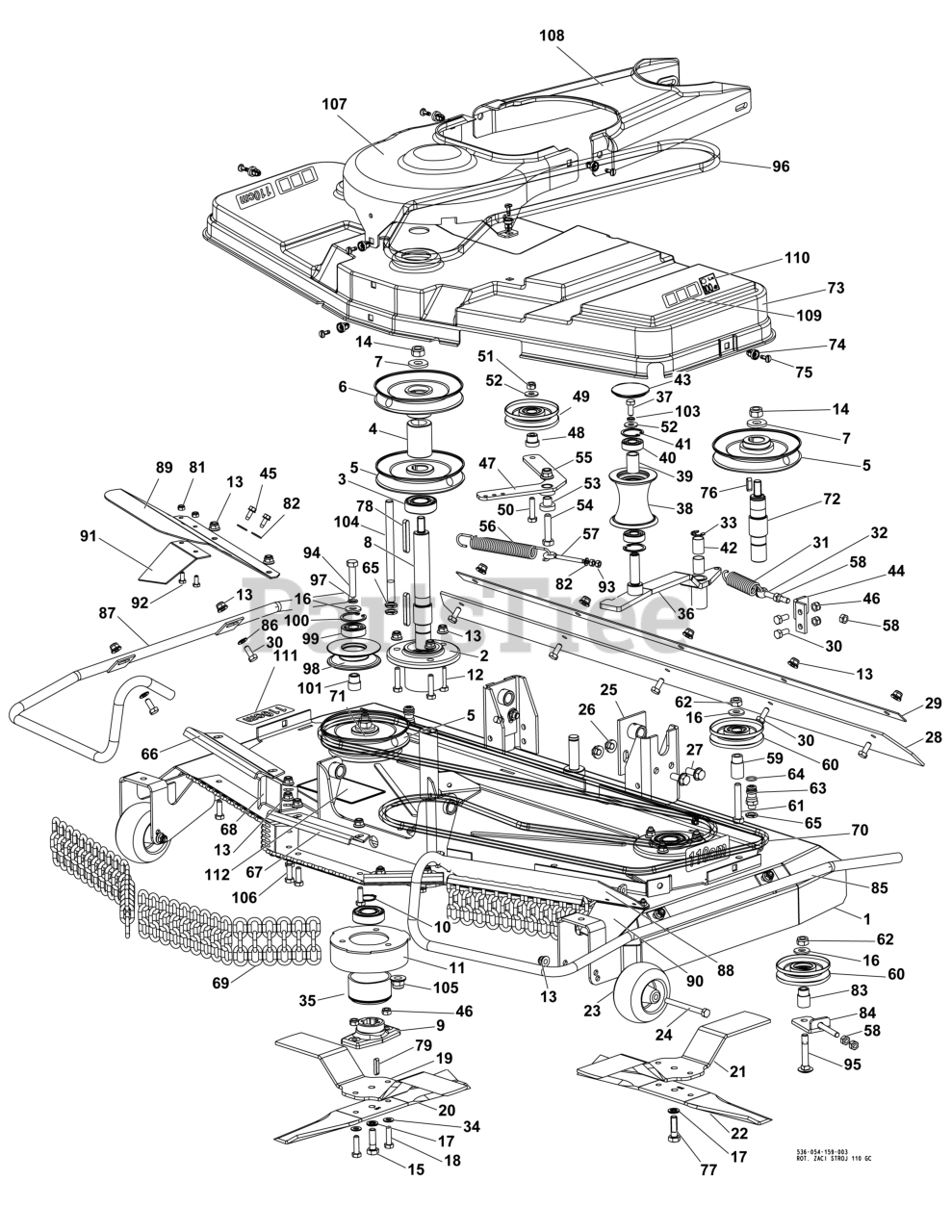

Mower Deck Group Parts Diagram

  • Title

1

84011977

MOWER DECK

$

$

Not available

2

84011978

FLANGE

$

$

Not available

3

Billy Goat 84011981

BEARING

$

$

Currently unavailable

4

84011979

SPACER

$

$

Not available

5

84011980

PULLEY

$

$

Not available

6

84011982

PULLEY

$

$

Not available

7

Billy Goat 84012234

WASHER

$

$

Currently unavailable

8

84011983

SHAFT

$

$

Not available

9

84011984

ADAPTER, Blade

$

$

Not available

10

Billy Goat 84011985

CLIP

$

$

Currently unavailable

11

84011986

COVER

$

$

Not available

12

SCREW M8X35

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

13

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

14

Billy Goat 84011987

NUT

$

$

Currently unavailable

15

Billy Goat 84011472

SCREW, RH Thread

$

$

Currently unavailable

16

WASHER 11

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

17

84011660

WASHER

$

$

Not available

18

SCREW M8X30

Note: ( Refer to Note: *)

$

$

Not available

19

84011988

BLADE, Upper, Right, 110cm

$

$

Not available

20

84011989

BLADE, Lower, Right, 110cm

$

$

Not available

21

84011990

BLADE, Upper, Left, 110cm

$

$

Not available

22

84011991

BLADE, Lower, Left, 110cm

$

$

Not available

23

Billy Goat 84011992

WHEEL

$

$

Currently unavailable

24

SCREW M8X90

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

25

84011993

HOLDER

$

$

Not available

26

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

27

SCREW M10X25

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

28

84012819

SHIELD

$

$

Not available

29

84012820

STRAP

$

$

Not available

30

SCREW M8X20

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

31

Billy Goat 84011767

SPRING

$

$

Currently unavailable

32

84011768

SCREW

$

$

Not available

33

Billy Goat 84011996

CLIP

$

$

Currently unavailable

34

WASHER 8.4

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

35

84011997

RING

$

$

Not available

36

84011998

HOLDER

$

$

Not available

37

SCREW M8X20

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

38

84011763

PULLEY

$

$

Not available

39

84011764

SPACER

$

$

Not available

40

Billy Goat 84011999

BEARING

$

$

Currently unavailable

41

Billy Goat 84012000

CLIP

$

$

Currently unavailable

42

Billy Goat 84011766

BUSHING

$

$

Currently unavailable

43

84011778

CAP

$

$

Not available

44

84012001

STOPPER

$

$

Not available

45

SCREW M6X16

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

46

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

47

84012002

HOLDER

$

$

Not available

48

84012003

PIN

$

$

Not available

49

Billy Goat 84012004

PULLEY

$

$

Currently unavailable

50

SCREW M8X35

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

51

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

52

WASHER 9

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

53

Billy Goat 84012005

BUSHING

$

$

Currently unavailable

54

SCREW M10X45

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

55

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

56

Billy Goat 84012006

SPRING

$

$

Currently unavailable

57

Billy Goat 84011833

EYE BOLT

$

$

Currently unavailable

58

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

59

Billy Goat 84012007

BUSHING

$

$

Currently unavailable

60

Billy Goat 84012004

PULLEY

$

$

Currently unavailable

61

SCREW M10X60

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

62

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

63

Billy Goat 84012008

CONNECTOR

$

$

Currently unavailable

64

Billy Goat 84012009

RING

$

$

Currently unavailable

65

NUT M12

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

66

84012010

BRACKET

$

$

Not available

67

84012011

BRACKET

$

$

Not available

68

84012012

BRACKET

$

$

Not available

69

84011749

CHAIN

$

$

Not available

70

84012013

BELT

$

$

Not available

71

84012014

SHAFT

$

$

Not available

72

84012015

SHAFT

$

$

Not available

73

84012016

COVER

$

$

Not available

74

Billy Goat 84011467

CLIP

$

$

Currently unavailable

75

Billy Goat 84011468

PIN

$

$

Currently unavailable

76

84012017

KEY

$

$

Not available

77

Billy Goat 84011473

SCREW, LH Thread

$

$

Currently unavailable

78

84012018

KEY

$

$

Not available

79

Billy Goat 84012019

KEY

$

$

Currently unavailable

81

NUT M6

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

82

WASHER 6.6 ZINC

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

83

Billy Goat 84011383

CASE

$

$

Currently unavailable

84

84012021

TENSIONER

$

$

Not available

85

84012022

TUBE

$

$

Not available

86

WASHER 8.4

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

87

84012023

TUBE

$

$

Not available

88

84012024

PLATE, Left

$

$

Not available

89

84012025

PLATE, Right

$

$

Not available

90

84012249

PLATE, Left

$

$

Not available

91

84012250

PLATE, Right

$

$

Not available

92

Screw M 6X14

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

93

NUT M6

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

94

SCREW M10X50

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

95

SCREW M10X60

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

96

84012028

BELT

$

$

Not available

97

WASHER 10

$

$

Not available

98

84012029

PULLEY

$

$

Not available

99

Billy Goat 84012030

BEARING

$

$

Currently unavailable

100

Billy Goat 84012031

CLIP

$

$

Currently unavailable

101

Billy Goat 84012266

SPACER

$

$

Currently unavailable

102

WASHER 9

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

103

WASHER 8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

104

84012821

STOP

$

$

Not available

105

NUT M12

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

106

SCREW M8X25

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

107

84011776

COVER, Belt

$

$

Not available

108

84011777

COVER, Belt

$

$

Not available

109

Billy Goat 84011974

DECAL

$

$

Currently unavailable

110

Billy Goat 84011973

DECAL

$

$

Currently unavailable

111

N283293242

DECAL 110 CM

$

$

Not available

112

LABEL

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

113

S532986015963

CUTTER

$

$

Not available
