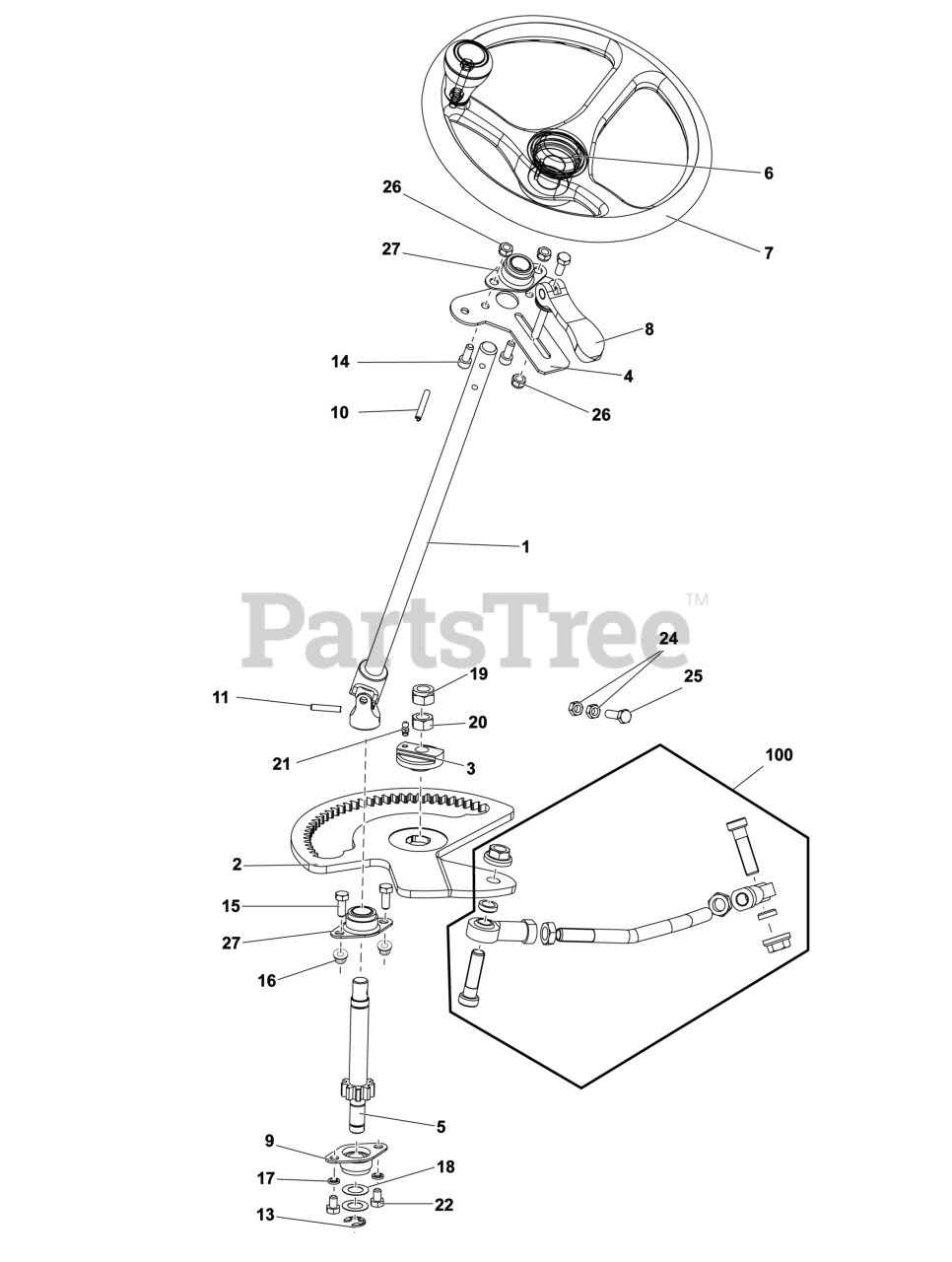

2691819-00 - Billy Goat Rear-Engine Riding Mower Steering Group Parts Diagram

Rear-Engine Riding Mower

Steering Group Parts Diagram

  • Title

1

84011705

SHAFT, Steering

$

$

Not available

2

84011706

GEAR

$

$

Not available

3

84011707

ECCENTRIC

$

$

Not available

4

84011708

PLATE

$

$

Not available

5

84011709

GEAR, Pinion

$

$

Not available

6

84011710

COVER

$

$

Not available

7

84011711

WHEEL, Steering

$

$

Not available

8

84011712

LEVER

$

$

Not available

9

84011713

BEARING

$

$

Not available

10

Billy Goat 84012156

PIN

$

$

Currently unavailable

11

84012157

PIN

$

$

Not available

13

Billy Goat 84011996

CLIP

$

$

Currently unavailable

14

SCREW M8X20

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

15

SCREW M8X20

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

16

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

17

WASHER 8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

18

WASHER 16X28X0.5 DIN988

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

19

NYLON INSERT NUT M14

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

20

NUT M14

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

21

Billy Goat 84012073

ZERK, Grease Fitting

$

$

Currently unavailable

22

SCREW M8X12

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

24

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

25

SCREW M8X30

Note: ( Refer to Note: *) 8.8 quality neededNote:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

26

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

27

84011714

BEARING

$

$

Not available

100

Refer to: Front Axle Group

$

$

Not available
