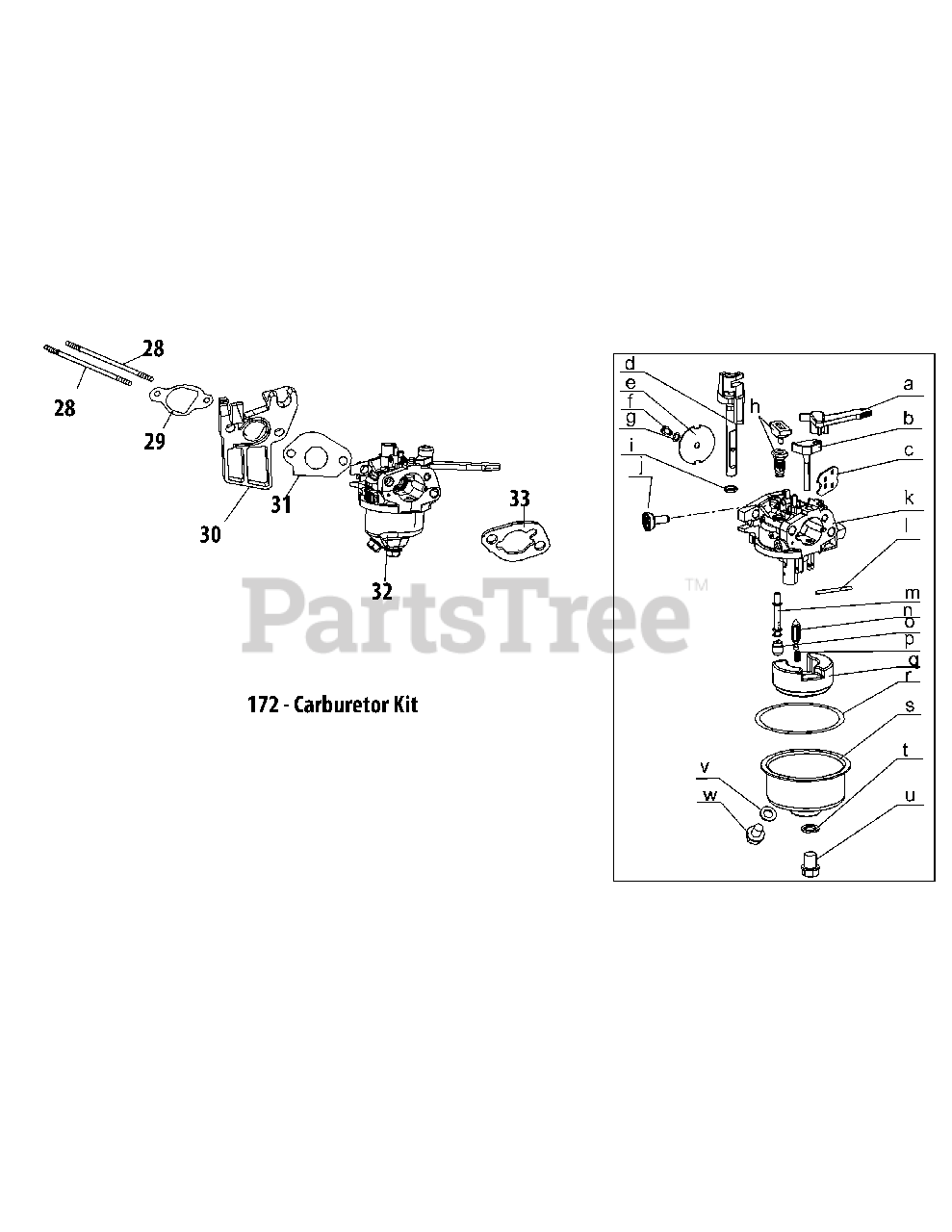

270-BU - MTD 208cc Engine 270-BU Carburetor Parts Diagram

208cc Engine

270-BU Carburetor Parts Diagram

  • Title

28

MTD 710-05101

Stud M6×110

$3.99

$

In Stock, Qty 8

0

29

MTD 951-11567

CARBURETOR INSULATOR GASKET
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

30

MTD 951-11568

CARBURETOR INSULATOR
(Superseded to 751P11568A)

$3.49

$

In Stock, Qty 6

0

31

MTD 951-11569A

CARBURETOR GASKET
(Superseded to 751P12005A)

$5.49

$

In Stock, Qty 20+

0

32

MTD 951-05021

Carburetor Assembly

$106.99

$

In Stock, Qty 5

0

33

MTD 951-11571

CARBURETOR GASKET PLATE

$5.49

$

In Stock, Qty 14

0

172

MTD 951-05034

Carb Repair Kit

Note: (Incl.h,l,m,n,o,p,q,r,t,v)

$57.99

$

In Stock, only 1 left!

0

a

MTD 951-11177

Control Lever,Choke
(Superseded to 951-12515)

$11.99

$

In Stock, only 1 left!

0

b

Choke Shaft

$

$

Not available

c

Choke Plate

$

$

Not available

d

Throttle Shaft

$

$

Not available

e

Throttle Plate

$

$

Not available

f

Screw M3×6

$

$

Not available

g

Lock Washer

$

$

Not available

h

Idle Jet Assembly

$

$

Not available

i

Gasket, Throttle Plate

$

$

Not available

j

Idle Speed Adjusting Screw

$

$

Not available

k

Carburetor Body

$

$

Not available

l

Float Pin

$

$

Not available

m

Emulsion Tube

$

$

Not available

n

Needle Valve

$

$

Not available

o

Main Jet

$

$

Not available

p

Needle Valve Spring

$

$

Not available

q

Float

$

$

Not available

r

MTD 951-11589

Fuel Bowl Gasket
(Superseded to 951-11589A)

$6.49

$

In Stock, Qty 20+

0

s

Fuel Bowl

$

$

Not available

t

MTD 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.49

$

Usually ships in 3-6 days

0

u

MTD 710-04945

Fuel Bowl Mounting Bolt

$3.99

$

In Stock, Qty 8

0

v

MTD 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$3.99

$

In Stock, Qty 15

0

w

MTD 710-04938

Fuel Drain Plug

$3.99

$

In Stock, only 4 left!

0
