270-JU-12 - Cub Cadet Engine 270-JU-12 Carburetor Parts Diagram

Engine

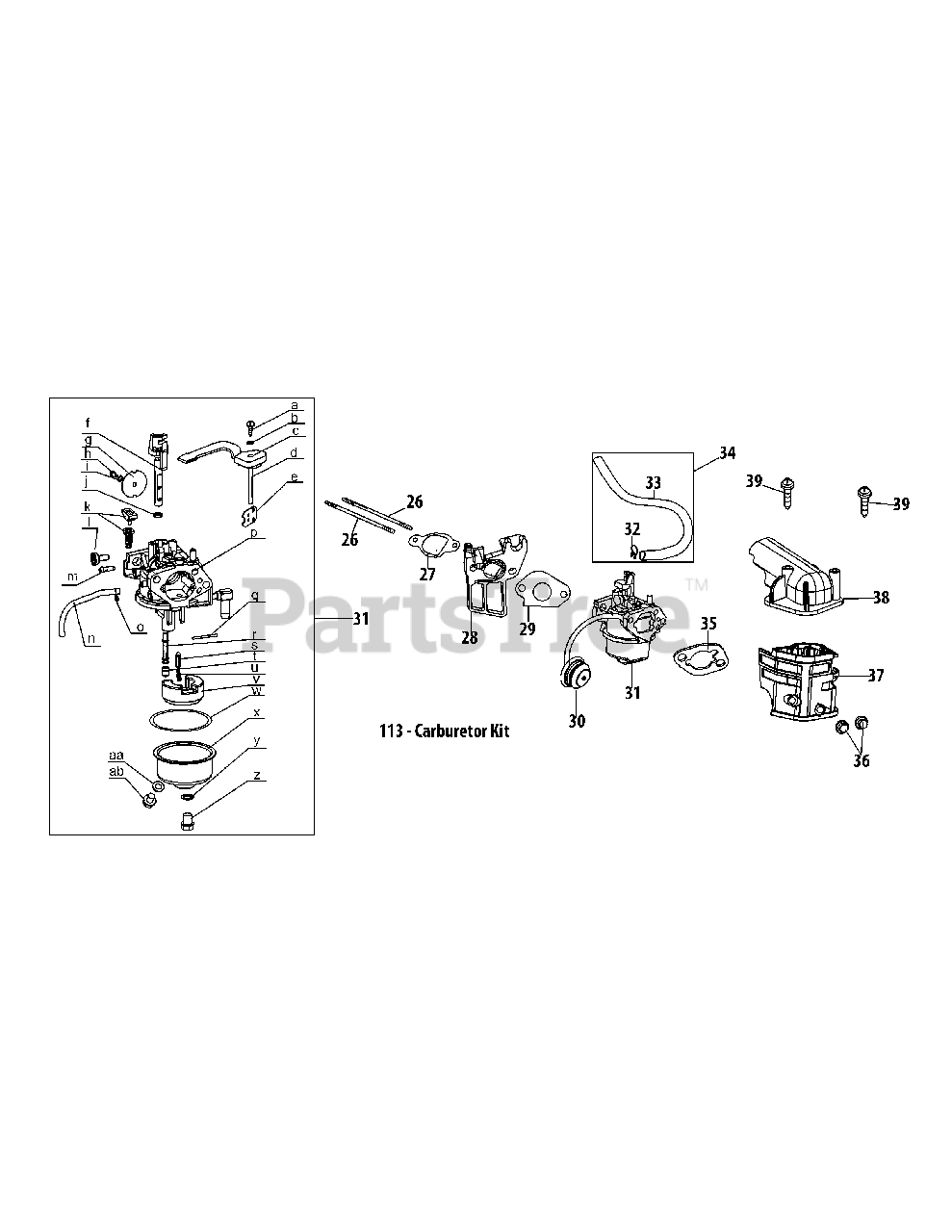

270-JU-12 Carburetor Parts Diagram

  • Title

26

Cub Cadet 710-05101

Carburetor Stud Bolt

$3.99

$

In Stock, Qty 8

0

27

Cub Cadet 951-11567

Carburetor Insulator Gasket
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

28

Cub Cadet 951-11568

Carburetor Insulator
(Superseded to 751P11568A)

$3.49

$

In Stock, Qty 6

0

29

Cub Cadet 951-11569A

Carburetor Gasket
(Superseded to 751P12005A)

$5.49

$

In Stock, Qty 20+

0

30

Cub Cadet 951-10639A

Primer

$13.99

$

In Stock, Qty 20+

0

30

Cub Cadet 951-11824

Primer Bulb

$10.99

$

In Stock, Qty 5

0

31

Cub Cadet 951-14028A

Carb Assembly

$93.99

$

In Stock, only 1 left!

0

32

Cub Cadet 951-11700

Hose Clamp
(Superseded to 951-11700A)

$3.99

$

In Stock, only 3 left!

0

33

Cub Cadet 951-12613

Fuel Line Hose

$12.99

$

In Stock, only 1 left!

0

34

Cub Cadet 951-12012

Fuel Line Kit

$27.99

$

In Stock, only 1 left!

0

35

Cub Cadet 951-11571

Carburetor Gasket Plate

$5.49

$

In Stock, Qty 15

0

36

Cub Cadet 712-04213

Bolt

$6.49

$

In Stock, Qty 8

0

37

Cub Cadet 951-10962

Intake Heater Box Base

$22.99

$

In Stock, only 2 left!

0

38

Cub Cadet 951-10961

Intake Heater Box

$15.99

$

In Stock, only 2 left!

0

39

Cub Cadet 710-05275

Self Tapping Bolt

$3.99

$

In Stock, Qty 15

0

113

Cub Cadet 951-12788A

Carburetor Kit

Note: (Incl. t,r,k,v,s,u,q,w,y,aa)

$50.99

$

In Stock, only 4 left!

0

a

Cub Cadet 710-05468

Choke Control Lever Screw

$3.99

$

Usually ships in 3-6 days

0

b

Cub Cadet 736-04598

Washer

$3.49

$

Usually ships in 3-6 days

0

c

Cub Cadet 951-12515

Choke Control Lever
(Superseded to 951-12811)

$11.99

$

In Stock, only 1 left!

0

d

Choke Shaft

$

$

Not available

e

Choke Plate

$

$

Not available

f

Throttle Shaft

$

$

Not available

g

Throttle Plate

$

$

Not available

h

Cub Cadet 710-05469

Fuel Shutoff Lever Screw

$3.99

$

Usually ships in 3-6 days

0

i

Cub Cadet 736-04638

Choke Control Lever Washer
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

j

Throttle Plate Gasket

$

$

Not available

k

Idle Jet Assembly

$

$

Not available

l

Idle Speed Adjusting Screw

$

$

Not available

m

Primer Pipe

$

$

Not available

n

Cub Cadet 951-12019

Primer Hose
(Superseded to 951-12019A)

$6.99

$

In Stock, only 2 left!

0

o

Cub Cadet 951-11906

Primer Hose Clamp

$3.99

$

In Stock, Qty 7

0

p

Carburetor Body

$

$

Not available

q

Float Pin

$

$

Not available

r

Emulsion Tube

$

$

Not available

s

Cub Cadet 951-12875

Float Needle Valve

$

$

Not available

t

Main Jet

$

$

Not available

u

Needle Valve Spring

$

$

Not available

v

Float

$

$

Not available

w

Cub Cadet 951-11589

Fuel Bowl Gasket
(Superseded to 951-11589A)

$6.49

$

In Stock, Qty 20+

0

x

Fuel Bowl

$

$

Not available

y

Cub Cadet 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.49

$

In Stock, only 1 left!

0

z

Cub Cadet 710-04938

Fuel Drain Plug

$3.99

$

In Stock, only 4 left!

0

aa

Cub Cadet 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$3.99

$

In Stock, Qty 15

0

ab

Cub Cadet 710-04945

Fuel Bowl Mounting Bolt

$3.99

$

In Stock, Qty 8

0
