270-SUA - Cub Cadet Engine 270-SUA Fuel Tank & Mounting Parts Diagram

Engine

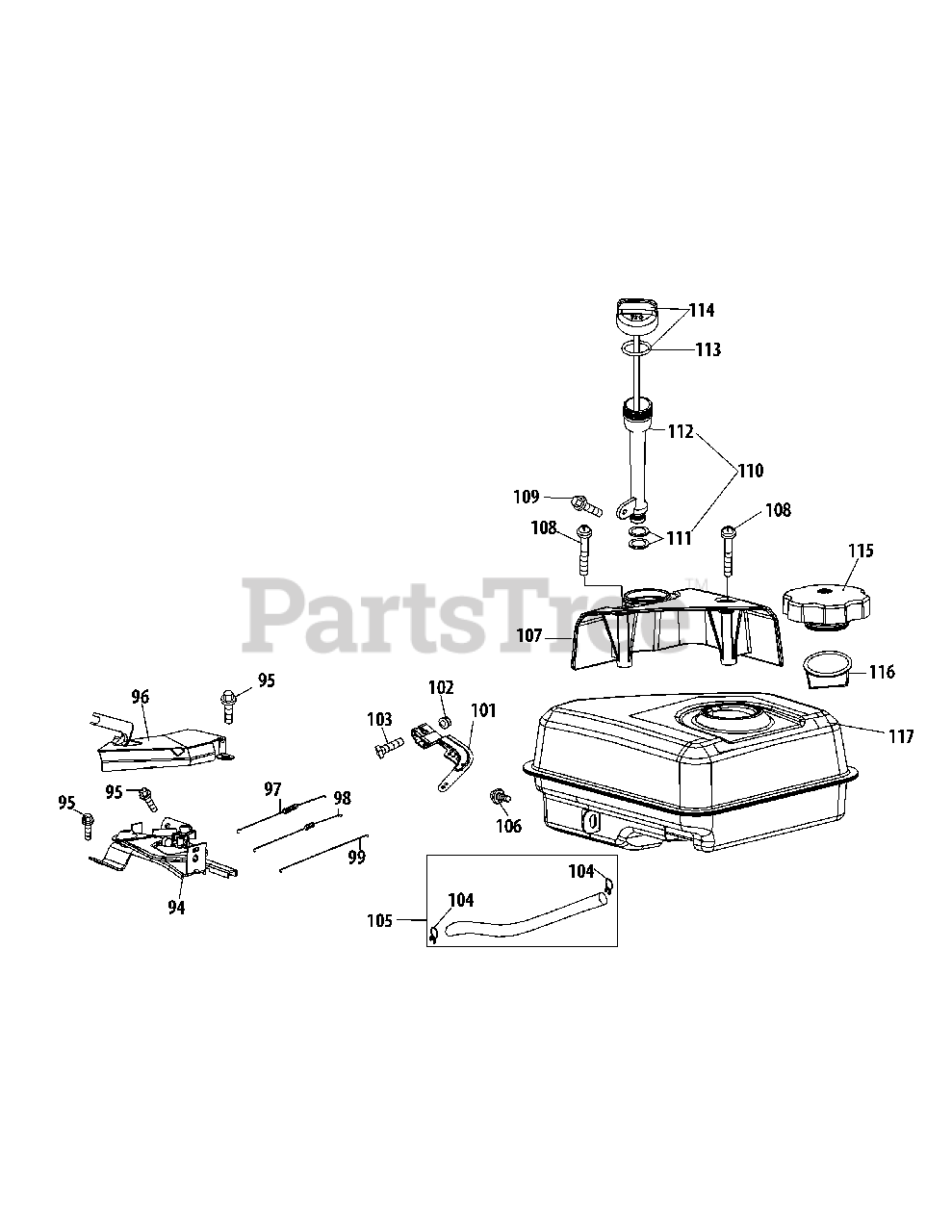

270-SUA Fuel Tank & Mounting Parts Diagram

  • Title

94

Cub Cadet 951-10758

Throttle Control Assembly

$23.99

$

Usually ships in 3-6 days

0

95

Cub Cadet 710-05103

Bolt-M6 X 12

$4.49

$

In Stock, only 2 left!

0

96

Cub Cadet 951-11108

Shield - Governor

$4.99

$

Usually ships in 3-6 days

0

97

Cub Cadet 951-11935

Governor Spring

$7.99

$

In Stock, only 1 left!

0

98

Cub Cadet 951-10664

Spring-Throttle Return
(Superseded to 751P10664A)

$2.49

$

In Stock, Qty 10

0

99

Cub Cadet 951-10665

Rod-Governor
(Superseded to 751P10665A)

$1.99

$

In Stock, only 3 left!

0

101

Cub Cadet 951-11106

Bracket - Governor

$7.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 712-04212

Nut - M6
(Superseded to 712-05015)

$6.99

$

In Stock, only 4 left!

0

103

Cub Cadet 710-04908

Bolt - M6 X 21 Gov

$6.49

$

Usually ships in 3-6 days

0

104

Cub Cadet 951-11700

Hose Clamp-Carb
(Superseded to 951-11700A)

$4.49

$

In Stock, only 3 left!

0

105

Cub Cadet 951-10650

Kit-Fuel Line

$28.99

$

In Stock, Qty 8

0

106

Cub Cadet 710-04915

Bolt - M6 X 12 Zin

$4.49

$

In Stock, Qty 8

0

107

Cub Cadet 951-11914

Engine/Dipstick Cover

$14.99

$

In Stock, only 1 left!

0

108

Cub Cadet 710-04905

Bolt

$4.49

$

In Stock, only 2 left!

0

109

Cub Cadet 710-04915

Bolt - M6 X 12 Zin

$4.49

$

In Stock, Qty 8

0

110

Cub Cadet 951-11913

Oil Fill Tube Assembly

$16.99

$

In Stock, only 1 left!

0

111

Cub Cadet 951-11381

O-Ring

$5.49

$

In Stock, only 1 left!

0

112

Cub Cadet 951-10656

Dipstick Tube
(Superseded to 631-05020AP)

$34.99

$

In Stock, only 2 left!

0

113

Cub Cadet 951-11904

O-Ring Dipstick

$4.49

$

In Stock, only 1 left!

0

114

Cub Cadet 951-12482

Dipstick Assy

$15.99

$

Usually ships in 3-6 days

0

115

Cub Cadet 951-12533

Fuel Cap

$23.99

$

In Stock, Qty 6

0

116

Cub Cadet 951-11933

Fuel Level Indicator

$9.99

$

In Stock, only 1 left!

0

117

Cub Cadet 951-10653B

Fuel Tank

$79.99

$

In Stock, only 2 left!

0
