271470 - Poulan Lawn Tractor (2001) Chassis And Enclosures Parts Diagram

Lawn Tractor

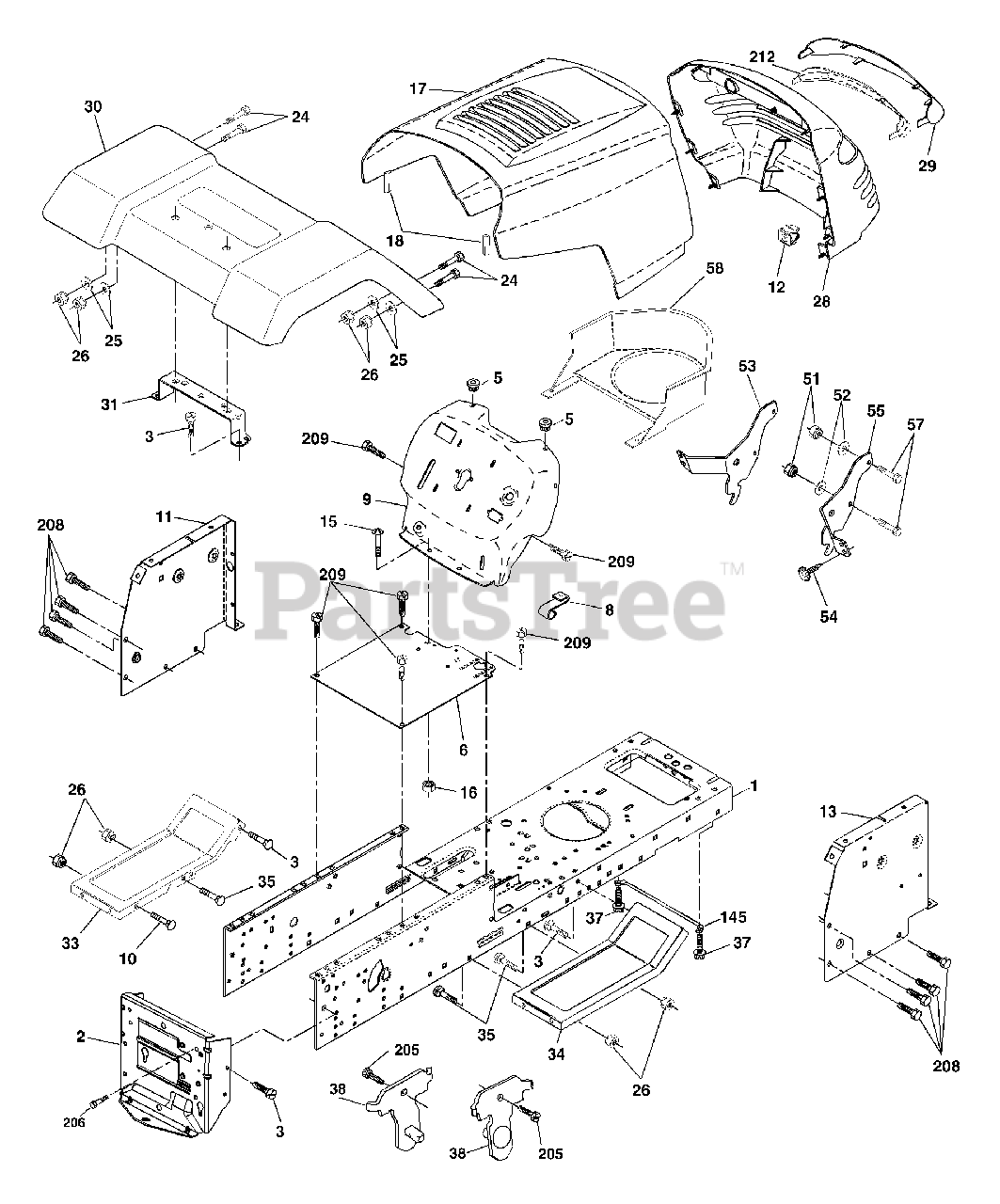

Chassis And Enclosures Parts Diagram

  • Title

$

$

Not available

2

Electrolux/AYP 169061

Drawbar
(Superseded to 532176554)

$40.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 17060612

Screw 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 155272

Bumper Hood/Dash
(Superseded to 532155272)

$7.49

$

In Stock, Qty 5

0

6

Electrolux/AYP 155924X014

Saddle Slkscr Flt LT
(Superseded to 583681601)

$11.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 155138

Clip Retainer Slide-On
(Superseded to 532155138)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 168347X011

Dash
(Superseded to 532172170)

$31.99

$

Usually ships in 3-10 days

0

10

Murray 72140608

Bolt Rdhd Sqnk 3/8-16unc X 1

$

$

Not available

11

Electrolux/AYP 155927

Panel Dash LH
(Superseded to 174996)

$11.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 145660

Clip Tinnerman Grille P/L
(Superseded to 532145660)

$3.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 172107X010

Panel Slkscr Dash RH

$

$

Not available

15

Electrolux/AYP 74180512

Screw Mach TRHD 5/16-18 unc x 3/4
(Superseded to 874180512)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 73510500

Nut Keps 5/16-18 Unc

$2.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 159639X417

Hood Asm
(Superseded to 584370801)

$70.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 126938X

Bumper Hood
(Superseded to 532126938)

$

$

Not available

24

Electrolux/AYP 74780616

Bolt Fin Hex 3/8-16 unc x 1 Gr. 5
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

Washer 13/32 X 13/16 x 12 Ga
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 73680600

Nut Hex Lock W/Ins. 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 150407

Grille/Lens Asm
(Superseded to 583097701)

$278.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 150209X599

Lens Headlight Bar Clear
(Superseded to 583679501)

$278.99

$

Usually ships in 3-10 days

0

$

$

Not available

31

Electrolux/AYP 136619

Bracket Fender Repl 109873x
(Superseded to 532136619)

$

$

Not available

33

Electrolux/AYP 105476X417

Footrest Pnt Lh
(Superseded to 532186456)

$27.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 105475X417

Footrest Pnt Rh
(Superseded to 532186457)

$27.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 72140606

Bolt Rdhd Sht Sqnk 3/8-16 x 3/4
(Superseded to 872140606)

$

$

Not available

37

Electrolux/AYP 17490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 169834

Bracket Asm Pivot Mower Rear
(Superseded to 532175710)

$9.99

$

In Stock, only 4 left!

0

51

Electrolux/AYP 73800400

Nut Lock Hex w/Ins 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 19091416

Washer 9/32 x 7/8 x 16 Ga.
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 144697

Bracket, Grille LH
(Superseded to 532144697)

$

$

Not available

54

Electrolux/AYP 161464

Screw
(Superseded to 532161464)

$

$

Not available

55

Electrolux/AYP 144696

Bracket, Grille RH
(Superseded to 532144696)

$

$

Not available

57

Electrolux/AYP 74780412

Bolt Hex 1/4-20 x 3/4
(Superseded to 874780412)

$

$

Not available

58

Electrolux/AYP 150127

Air Duct P/L
(Superseded to 532150127)

$

$

Not available

145

Electrolux/AYP 156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

205

UNKNOWN

$

$

Not available

206

Electrolux/AYP 170165

Bolt Shoulder 5/16-18
(Superseded to 532170165)

$4.99

$

In Stock, Qty 20+

0

208

Electrolux/AYP 17670608

Screw thdrol 3/8-16 x 1/2
(Superseded to 817670608)

$6.49

$

In Stock, only 2 left!

0

209

Electrolux/AYP 17000612

Screw Hex Wsh Thdrol 3/8-16
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

212

Electrolux/AYP 156494

Insert Lens Reflective
(Superseded to 582986101)

$10.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 5479J

Plug Button Blk 359 Dia Choke
(Superseded to 532005479)

$4.99

$

Usually ships in 3-10 days

0
