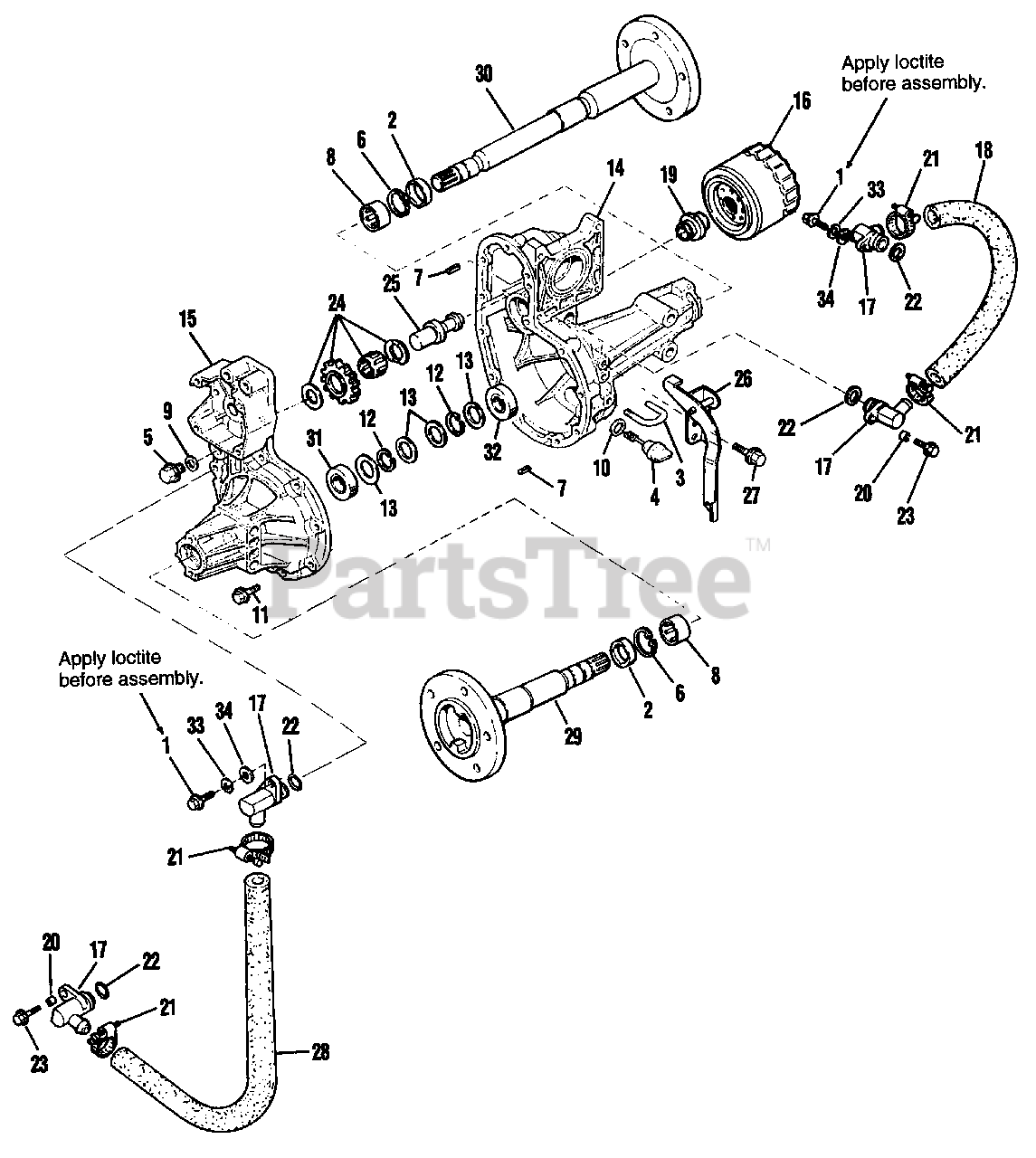

2718 H (1692580) - Massey Ferguson Garden Tractor, 18hp Service Parts - Transaxle Housing Parts Diagram

Garden Tractor, 18hp

Service Parts - Transaxle Housing Parts Diagram

  • Title

1

Simplicity 2860444SM

BOLT

$2.99

$

Usually ships in 2-12 days

0

2

Simplicity 1707776SM

SEAL

$21.99

$

Usually ships in 2-12 days

0

3

Simplicity 1707777SM

FITTING

$21.99

$

Usually ships in 2-12 days

0

4

Simplicity 1707778SM

CAP, Oil

$23.99

$

Usually ships in 2-12 days

0

5

Simplicity 1707779SM

PLUG

$

$

Not available

6

Simplicity 1707782SM

RING

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 1707783SM

PIN, Roll

$3.99

$

Usually ships in 2-12 days

0

8

Simplicity 1707784SM

BEARING, Needle

$74.99

$

Usually ships in 2-12 days

0

9

Simplicity 1707785SM

PACKING

$1.99

$

Usually ships in 2-12 days

0

10

Simplicity 1707786SM

PACKING

$6.49

$

Usually ships in 2-12 days

0

11

Simplicity 1707789SM

SCREW, Taptite

$6.99

$

Usually ships in 2-12 days

0

12

Simplicity 1707855SM

RING

$5.49

$

Usually ships in 2-12 days

0

13

Simplicity 1707860SM

WASHER

$8.99

$

Usually ships in 2-12 days

0

14

Simplicity 1707870SM

HOUSING, Transaxle, Right

$

$

Not available

15

Simplicity 1707871SM

HOUSING, Transaxle, Left

$

$

Not available

16

Simplicity 1707873SM

OIL FILTER

$34.99

$

Usually ships in 2-12 days

0

17

Simplicity 1707874SM

ELBOW

$19.99

$

In Stock, only 1 left!

0

18

Simplicity 1707875SM

TUBE, Suction

$35.99

$

Usually ships in 2-12 days

0

19

Simplicity 1707876SM

FITTING

$17.99

$

Usually ships in 2-12 days

0

20

Simplicity 1707877SM

COLLAR

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 1723214SM

CLAMP, Hose

$5.99

$

Usually ships in 2-12 days

0

22

Simplicity 1707879SM

PACKING

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 1707880SM

BOLT

$2.99

$

Usually ships in 2-12 days

0

24

Simplicity 1707887SM

GEAR SET, Idle

$

$

Not available

25

Simplicity 1707888SM

SHAFT, Idle

$

$

Not available

26

Simplicity 1707889SM

LEVER ASSY., Range

$62.99

$

Usually ships in 2-12 days

0

27

Simplicity 1707890SM

SCREW, Taptite

$3.49

$

In Stock, only 1 left!

0

28

Simplicity 1707891SM

TUBE, Drain

$52.99

$

Usually ships in 2-12 days

0

29

Simplicity 1707902SM

SHAFT, Axle, Left

$

$

Not available

30

Simplicity 1707903SM

SHAFT, Axle, Right

$

$

Not available

31

Simplicity 1707904SM

BEARING

$31.99

$

Usually ships in 2-12 days

0

32

Simplicity 1707905SM

BEARING

$31.99

$

Usually ships in 2-12 days

0

33

Simplicity 1916964SM

LOCKWASHER
(Superseded to 704133)

$3.99

$

In Stock, only 1 left!

0

34

Simplicity 1921319SM

WASHER, Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 18

0
