2718 H (1693403) - Massey Ferguson Garden Tractor, 18hp Steering Group - Manual Steering Parts Diagram

Garden Tractor, 18hp

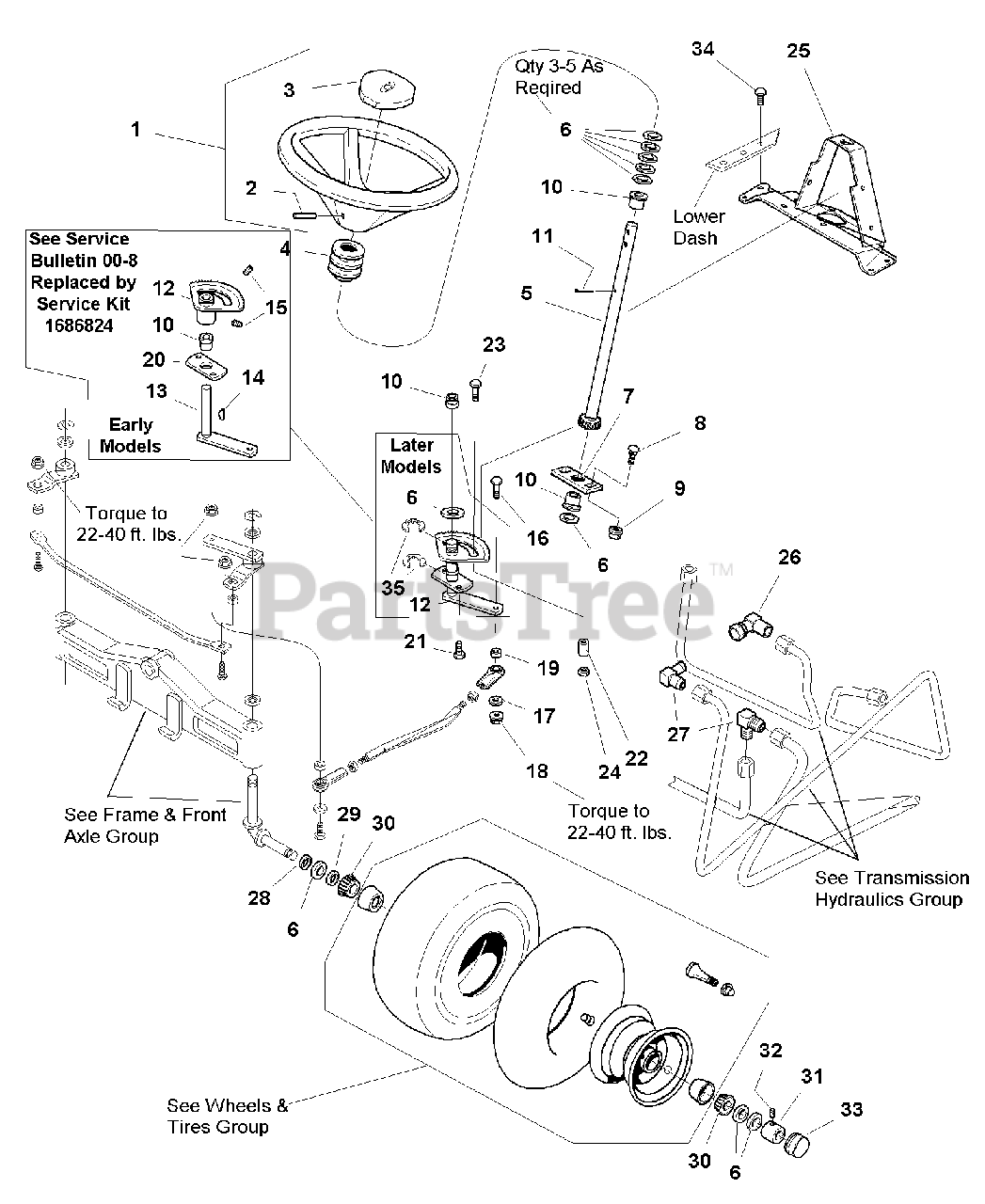

Steering Group - Manual Steering Parts Diagram

  • Title

1

Simplicity 1686651SM

STEERING WHEEL ASSEMBLY (Includes Ref. Nos. 2 and 3)

$190.99

$

In Stock, only 1 left!

0

2

Simplicity 1960540SM

PIN, Spring, 5/8 x 2

$4.49

$

In Stock, only 1 left!

0

3

Simplicity 1714097SM

CAP, Steering Wheel

$10.99

$

Usually ships in 2-12 days

0

4

Simplicity 1714400SM

TUBE, Steering

$7.49

$

In Stock, only 1 left!

0

5

Simplicity 1720122SM

SHAFT ASSEMBLY, Steering (Manual)

$50.99

$

Usually ships in 2-12 days

0

6

Simplicity 1960114SM

WASHER, Plain, 3/4
(Superseded to 703151)

$3.49

$

In Stock, Qty 16

0

7

Simplicity 1703508ASM

PLATE, Mounting, Steering

$24.99

$

In Stock, Qty 7

0

8

Simplicity 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, Qty 7

0

9

Simplicity 1928352SM

NUT, Hex Flange Whiz Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, Qty 12

0

10

Simplicity 2176440SM

BUSHING

$4.99

$

In Stock, Qty 20+

0

11

Simplicity 1919314SM

PIN, Cotter, 3/16 x 1-1/4

$3.49

$

In Stock, Qty 7

0

12

Simplicity 1686824SM

GEAR ASSEMBLY, Steering (Early Models )(See Service Bulletin 00-8)

$158.99

$

In Stock, only 1 left!

0

12

Simplicity 1686824SM

STEERING GEAR ASSEMBLY, (Later Models)

$158.99

$

In Stock, only 1 left!

0

13

Simplicity 1707431SM

PITMAN ARM ASSEMBLY

$27.99

$

In Stock, only 1 left!

0

14

Simplicity 2830670SM

KEY, Hi Pro

$2.49

$

Usually ships in 2-12 days

0

15

Simplicity 1928721SM

SETSCREW, Square Head, 5/16-18 x 1/2, G8

$4.99

$

In Stock, Qty 13

0

16

Simplicity 1921968SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/8

$4.49

$

In Stock, Qty 6

0

17

Simplicity 1922755SM

WASHER, Plain, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 10

0

18

Simplicity 1930645SM

NUT, Hex Flange, 2-Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Simplicity 1708236SM

SPACER

$8.99

$

In Stock, only 3 left!

0

20

Simplicity 1716117A

SECTOR MOUNTING PLATE
(Superseded to 1716117ASM)

$7.49

$

Usually ships in 2-12 days

0

21

Simplicity 1960373SM

CAPSCREW, Hex Head, Taptite, 5/16-18 X 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 18

0

22

Simplicity 1673796SM

SPACER, Stop

$24.99

$

Usually ships in 2-12 days

0

23

Simplicity 1921221SM

CAPSCREW, Hex Head, 5/16-18 x 1-1/2
(Superseded to 703906)

$4.99

$

In Stock, Qty 8

0

24

Simplicity 1919438SM

NUT, Hex Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

25

Simplicity 1719162SM

BRACKET & STEERING TOWER ASSEMBLY
(Superseded to 1719162ASM)

$37.99

$

Usually ships in 2-12 days

0

26

Simplicity 1719132SM

FITTING, Hydraulic, 90 Degree Swivel Elbow (Hydraulic Lift Models Only)

$9.99

$

Usually ships in 2-12 days

0

27

Simplicity 1719822SM

FITTING, Hydraulic, 90 Degree Male (Hydraulic Lift Models Only)

$10.99

$

Usually ships in 2-12 days

0

28

Simplicity 2171375SM

SPACER

$15.99

$

In Stock, Qty 13

0

29

Simplicity 2170168SM

SEAL

$38.99

$

Usually ships in 2-12 days

0

30

Simplicity 2154486SM

BEARING, Tapered Roller

Note: Wheels - check on need for 154393 cup which is in parts book.

$36.99

$

In Stock, Qty 15

0

31

Simplicity 1729254SM

COLLAR, Set
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

32

Simplicity 1960619SM

SETSCREW, Square Head, 5/16-18 x 3/8, G8

$3.49

$

In Stock, only 2 left!

0

33

Simplicity 2154487SM

CAP, Hub
(Superseded to 2154487YP)

Note: Wheels - check on need for 154393 cup which is in parts book.

$9.99

$

In Stock, only 2 left!

0

34

Simplicity 1925003SM

CAPSCREW, Hex Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 1611710SM

CLIP RING, 3/4

$4.49

$

In Stock, Qty 19

0
