272 S - Husqvarna Stump Grinder (1995-12) Crankcase Assembly Parts Diagram

Stump Grinder

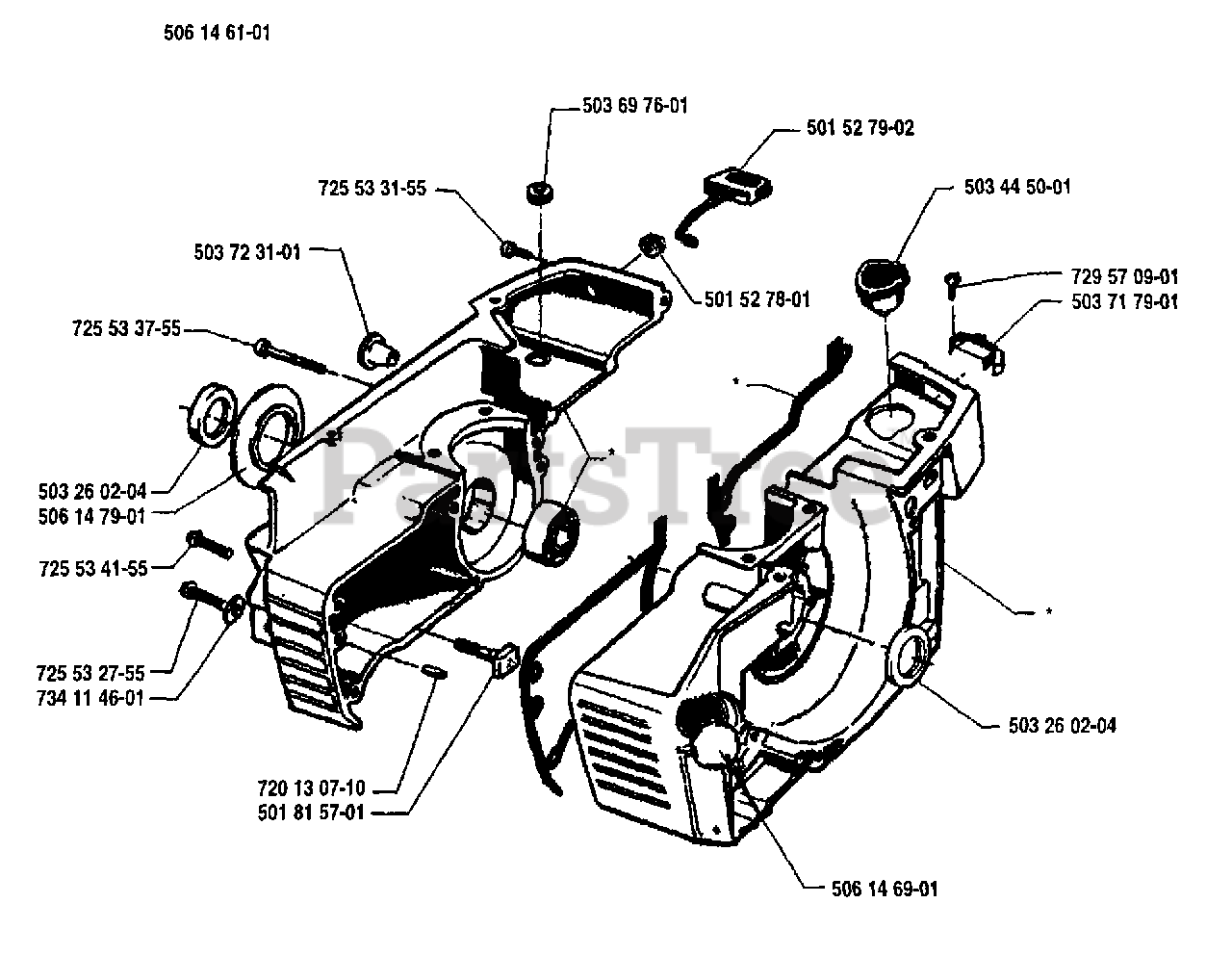

Crankcase Assembly Parts Diagram

  • Title

506146101

Husqvarna 506146101

CRANKCASE

$

$

Not available

725533155

Husqvarna 725533155

SCREW MC6S 5X20
(Superseded to 525824902)

$6.49

$

In Stock, only 4 left!

0

503697601

Husqvarna 503697601

GROMMET

$7.99

$

In Stock, Qty 8

0

503723101

Husqvarna 503723101

BUSHING

$9.49

$

In Stock, Qty 8

0

725533755

Husqvarna 725533755

SCREW MC6S 5X35

$6.49

$

In Stock, Qty 11

0

503260204

Husqvarna 503260204

SEALING RING

$17.99

$

In Stock, Qty 5

0

506147901

Husqvarna 506147901

HOLDER

$

$

Not available

725534155

Husqvarna 725534155

SCREW MC6S 5X50

$5.99

$

In Stock, Qty 10

0

725532755

Husqvarna 725532755

SCREW MC6S 5X12

$6.49

$

In Stock, Qty 16

0

720130710

Husqvarna 720130710

PIN 5X14

$4.99

$

Usually ships in 3-10 days

0

501815701

Husqvarna 501815701

BOLT

$7.49

$

In Stock, only 2 left!

0

506146901

Husqvarna 506146901

CAP

$

$

Not available

503260204

Husqvarna 503260204

SEALING RING

$17.99

$

In Stock, Qty 5

0

501527902

Husqvarna 501527902

CHOKE CONTROL

$10.99

$

In Stock, only 1 left!

0

503445001

Husqvarna 503445001

BELLOWS

$9.49

$

In Stock, Qty 12

0

729570901

Husqvarna 729570901

SCREW

$

$

Not available

503717901

Husqvarna 503717901

SWITCH ON/OFF

$17.99

$

In Stock, Qty 20+

0

501527801

Husqvarna 501527801

BUSHING

$7.49

$

In Stock, only 2 left!

0

734114601

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$5.99

$

In Stock, Qty 7

0
