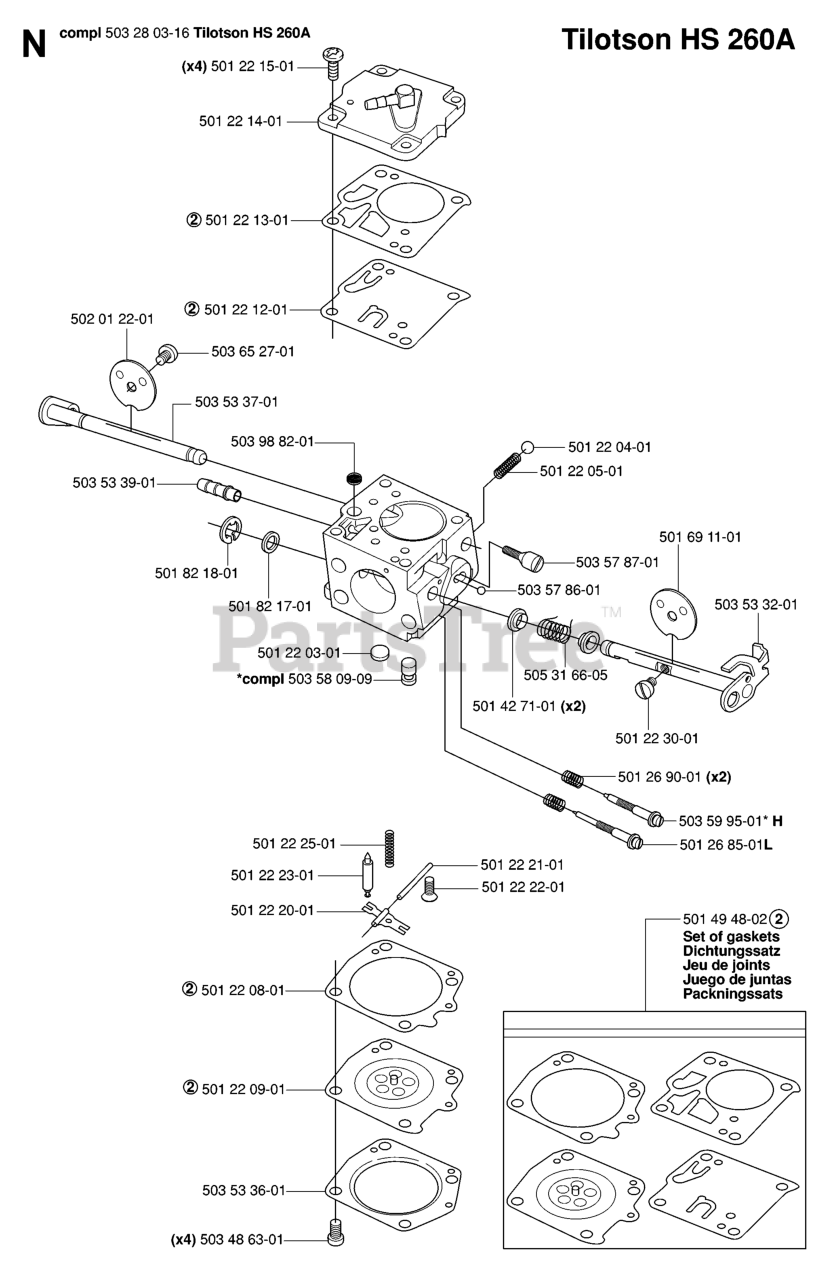

272 XP - Husqvarna Chainsaw (SN: 20070100001 - 20091400000) CARBURETOR Parts Diagram

Chainsaw

CARBURETOR Parts Diagram

  • Title

503 48 63-01

Husqvarna 503486301

COVER SCREW

$4.99

$

In Stock, only 2 left!

0

501 22 15-01

Husqvarna 501221501

SCREW

$4.99

$

In Stock, Qty 7

0

503 59 95-01

Husqvarna 503599501

HIGH SPEED NEEDLE
(Superseded to 501268901)

$12.99

$

Usually ships in 3-10 days

0

503 28 03-16

Husqvarna 503280316

CARBURETOR HS260S TILLOTSON
(Superseded to 574331601)

$148.99

$

In Stock, only 3 left!

0

503 53 32-01

Husqvarna 503533201

THROTTLE SHAFT & LEVER

$34.99

$

Usually ships in 3-10 days

0

501 82 18-01

Husqvarna 501821801

RETAINING RING

$8.07

$

Usually ships in 3-10 days

0

503 53 36-01

Husqvarna 503533601

COVER
(Superseded to 501821901)

$

$

Not available

501 26 85-01

Husqvarna 501268501

IDLE ADJ. SCREW

$28.99

$

Usually ships in 3-10 days

0

501 42 71-01

Husqvarna 501427101

Bushing

$2.99

$

Usually ships in 3-10 days

0

505 31 66-05

Husqvarna 505316605

SPRING

$9.49

$

Usually ships in 3-10 days

0

503 53 37-01

Husqvarna 503533701

CHOKE SHAFT

$31.99

$

Usually ships in 3-10 days

0

501 22 04-01

Husqvarna 501220401

BALL

$10.37

$

In Stock, only 1 left!

0

501 22 25-01

Husqvarna 501222501

SPRING

$5.99

$

In Stock, only 1 left!

0

501 22 05-01

Husqvarna 501220501

SPRING

$4.99

$

In Stock, only 1 left!

0

501 22 23-01

Husqvarna 501222301

NEEDLE

$13.99

$

In Stock, only 1 left!

0

503 58 09-09

Husqvarna 503580909

CHECK VALVE KIT

$

$

Not available

503 53 39-01

Husqvarna 503533901

NIPPLE

$13.99

$

Usually ships in 3-10 days

0

501 22 08-01

Husqvarna 501220801

GASKET, METERING SIDE

$24.99

$

Usually ships in 3-10 days

0

501 69 11-01

Husqvarna 501691101

THROTTLE FLAP

$6.99

$

In Stock, Qty 7

0

501 82 17-01

Husqvarna 501821701

WASHER

$5.99

$

In Stock, only 1 left!

0

501 22 03-01

Husqvarna 501220301

Plug

$

$

Not available

501 22 09-01

Husqvarna 501220901

METERING DIAPHRAGM

$25.99

$

In Stock, Qty 11

0

503 65 27-01

Husqvarna 503652701

SCREW

$5.99

$

In Stock, Qty 8

0

502 01 22-01

Husqvarna 502012201

CHOKE FLAP

$

$

Not available

501 22 30-01

Husqvarna 501223001

SCREW
(Superseded to 503652701)

$5.99

$

In Stock, Qty 8

0

501 22 20-01

Husqvarna 501222001

LEVER

$

$

Not available

503 57 86-01

Husqvarna 503578601

BALL

$6.99

$

Usually ships in 3-10 days

0

501 26 90-01

Husqvarna 501269001

SPRING

$5.99

$

Usually ships in 3-10 days

0

503 57 87-01

Husqvarna 503578701

SCREW

$8.49

$

Usually ships in 3-10 days

0

503 98 82-01

Husqvarna 503988201

SCREEN

$7.99

$

In Stock, only 1 left!

0

501 22 22-01

Husqvarna 501222201

SCREW

$

$

Not available

501 22 13-01

Husqvarna 501221301

GASKET, PUMP SIDE

$6.99

$

In Stock, only 3 left!

0

501 22 21-01

Husqvarna 501222101

SHAFT

$7.49

$

In Stock, only 1 left!

0

501 22 12-01

Husqvarna 501221201

FUEL PUMP DIAPHRAGM

$11.99

$

Usually ships in 3-10 days

0

501 22 14-01

Husqvarna 501221401

CAP

$34.99

$

Usually ships in 3-10 days

0
