27501 - Toro Walk-Behind Mower (SN: 020000001 - 029999999) (1992) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

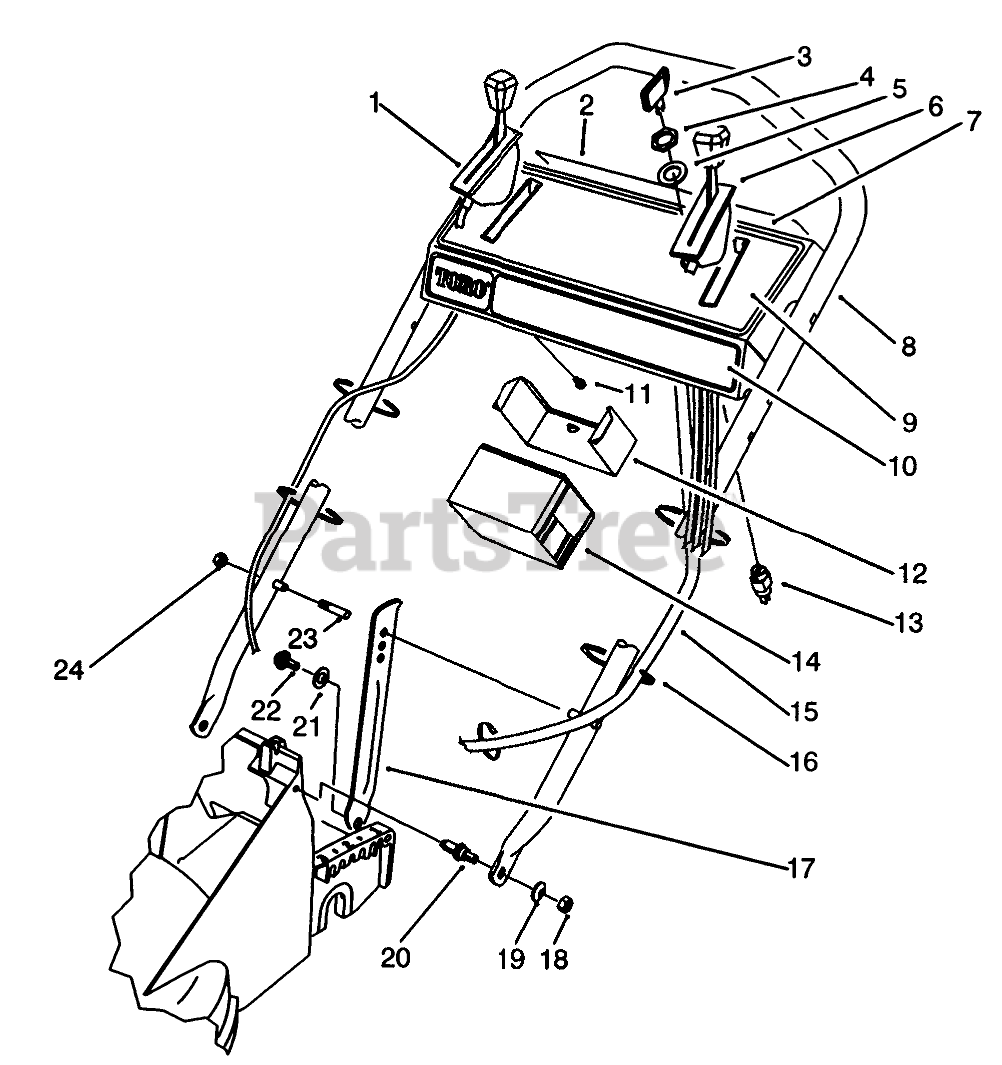

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 76-2710

Control-Ground Speed
(Superseded to 76-2713)

$116.99

$

Usually ships in 3-6 days

0

2

Toro 66-1790

DECAL - PANEL, REAR
(Superseded to 93-6655)

$

$

Not available

3

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

4

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

5

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 8

0

6

Toro 66-0236

THROTTLE CONTROL

$144.99

$

Usually ships in 3-6 days

0

7

Toro 13-2229

Panel-Control (Incl. Ref. #9)

$169.99

$

Usually ships in 3-6 days

0

8

Toro 66-0320

HANDLE

$

$

Not available

9

Toro 66-0270

DECAL - INSTRUCTION

$

$

Not available

10

Toro 65-5650

DECAL - KEY LECTRIC

$

$

Not available

11

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

12

Toro 55-8180

Retainer-Battery
(Superseded to 55-8180-03)

$43.99

$

Usually ships in 3-6 days

0

13

Toro 46-5780

Switch-Starter (Incl. Ref #4 & 5)

$31.99

$

In Stock, only 2 left!

0

14

Toro 55-7520

BATTERY ASSEMBLY

$176.99

$

Usually ships in 3-6 days

0

15

Toro 80-4791

Harness-Wire
(Superseded to 80-4794)

$

$

Not available

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

17

Toro 65-5730

HANDLE LATCH

$

$

Not available

18

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

20

Toro 66-0450

SCREW - SHOULDER STUD

$

$

Not available

21

Toro 256-313

NYLON WASHER

$

$

Not available

22

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

23

Toro 49-2750

HANDLE PIN

Note: Service Replacement Part

$38.99

$

Usually ships in 3-6 days

0

24

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

Toro 6-9780

Charger
(Superseded to 131-0848)

Note: Not illustrated

$74.99

$

Usually ships in 3-6 days

0
