2754 GLS (960430047-00) - Husqvarna 54" Lawn Tractor (2011-09) ENGINE Parts Diagram

54" Lawn Tractor

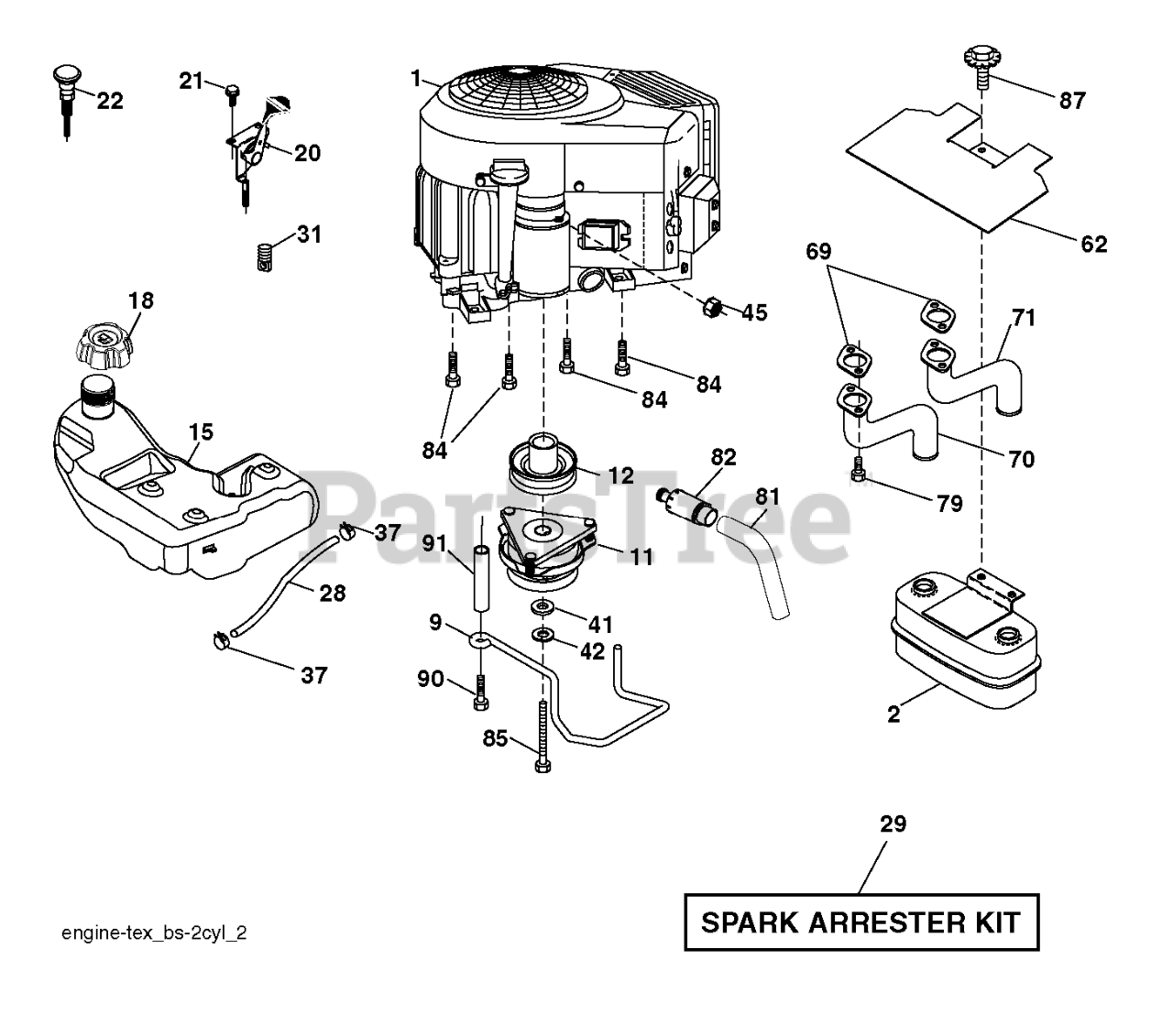

ENGINE Parts Diagram

  • Title

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 584908001)

$

$

Not available

11

Husqvarna 532179335

CLUTCH MZ ZTR GT.48/54"1.125"

$278.99

$

In Stock, only 1 left!

0

20

Husqvarna 532178385

THROTTLE CABLE
(Superseded to 532175437)

$44.99

$

In Stock, only 3 left!

0

12

Husqvarna 532194343

PULLEY ENGINE

$74.99

$

In Stock, only 2 left!

0

79

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

82

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$18.99

$

In Stock, Qty 16

0

87

Husqvarna 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$7.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

In Stock, Qty 6

0

71

Husqvarna 532160589

EXHAUST.TUBE.RH.BS/TWIN
(Superseded to 581881001)

$31.99

$

In Stock, only 3 left!

0

85

Husqvarna 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5

$7.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, Qty 20+

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$18.99

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 8

0

18

Husqvarna 532194267

CAP.FUEL.TANK.3"GREY
(Superseded to 584248702)

$12.99

$

In Stock, Qty 5

0

15

Husqvarna 532193499

TANK.FUEL.4GAL

$145.99

$

Usually ships in 3-10 days

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$4.99

$

In Stock, Qty 19

0

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$40.99

$

In Stock, Qty 7

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

1

000000000

Note: ENGINE B&S MODEL 44Q777-1039-B1

$

$

Not available

70

Husqvarna 532159955

RP.EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 581881101)

$44.99

$

In Stock, only 4 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 2 left!

0
