2800 (UT-26033-A) - Green Machine String Trimmer Gearcase Parts Diagram

String Trimmer

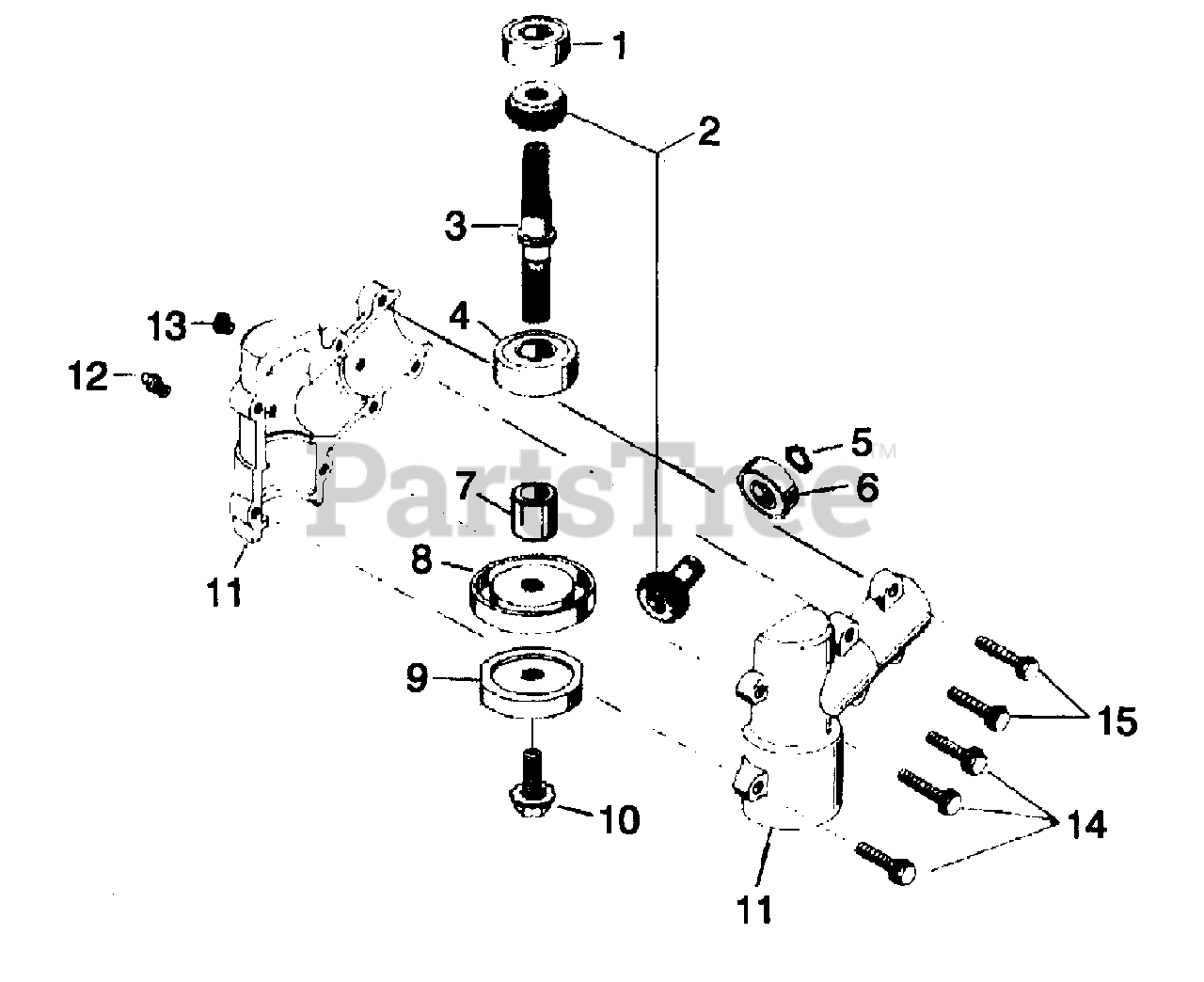

Gearcase Parts Diagram

  • Title

Homelite GM270303

GEARCASE ASSEMBLY
(Superseded to UP05308)

$111.99

$

Usually ships in 3-7 days

0

1

Homelite 09147

BEARING
(Superseded to UP05816)

$

$

Not available

2

Homelite GM190609

GEAR SET

$46.99

$

Usually ships in 3-7 days

0

3

Homelite GM226706

SHAFT, GEAR

$

$

Not available

4

Homelite 09141

BEARING

$

$

Not available

5

Homelite 09151

RING

$

$

Not available

6

Homelite 09134

BEARING
(Superseded to UP06386)

$

$

Not available

7

Homelite GM226705

COLLAR

$

$

Currently unavailable

8

Homelite GM300070

UPPER FLANGE WASHER

$

$

Not available

9

Homelite GM300075

LOWER FLANGE WASHER
(Superseded to UP06798)

$5.99

$

Usually ships in 3-7 days

0

10

Homelite 09140

SEMS SCREW, BLADE
(Superseded to UP08260)

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available

11

Homelite GM270306

HOUSING SET

$

$

Currently unavailable

12

Homelite GM286716

FITTING, ZERK

$

$

Not available

13

Homelite 82459

SCREW, SELF TAPPING

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available

14

Homelite 825491

SCREW, SELF TAPPING
(Superseded to UP05542)

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available

15

Homelite 825491

SCREW, SELF TAPPING
(Superseded to UP05542)

Note: Torque Specs: 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available
