2800m (41BD280G700) - Ryobi String Trimmer Boom And Trimmer Parts Parts Diagram

String Trimmer

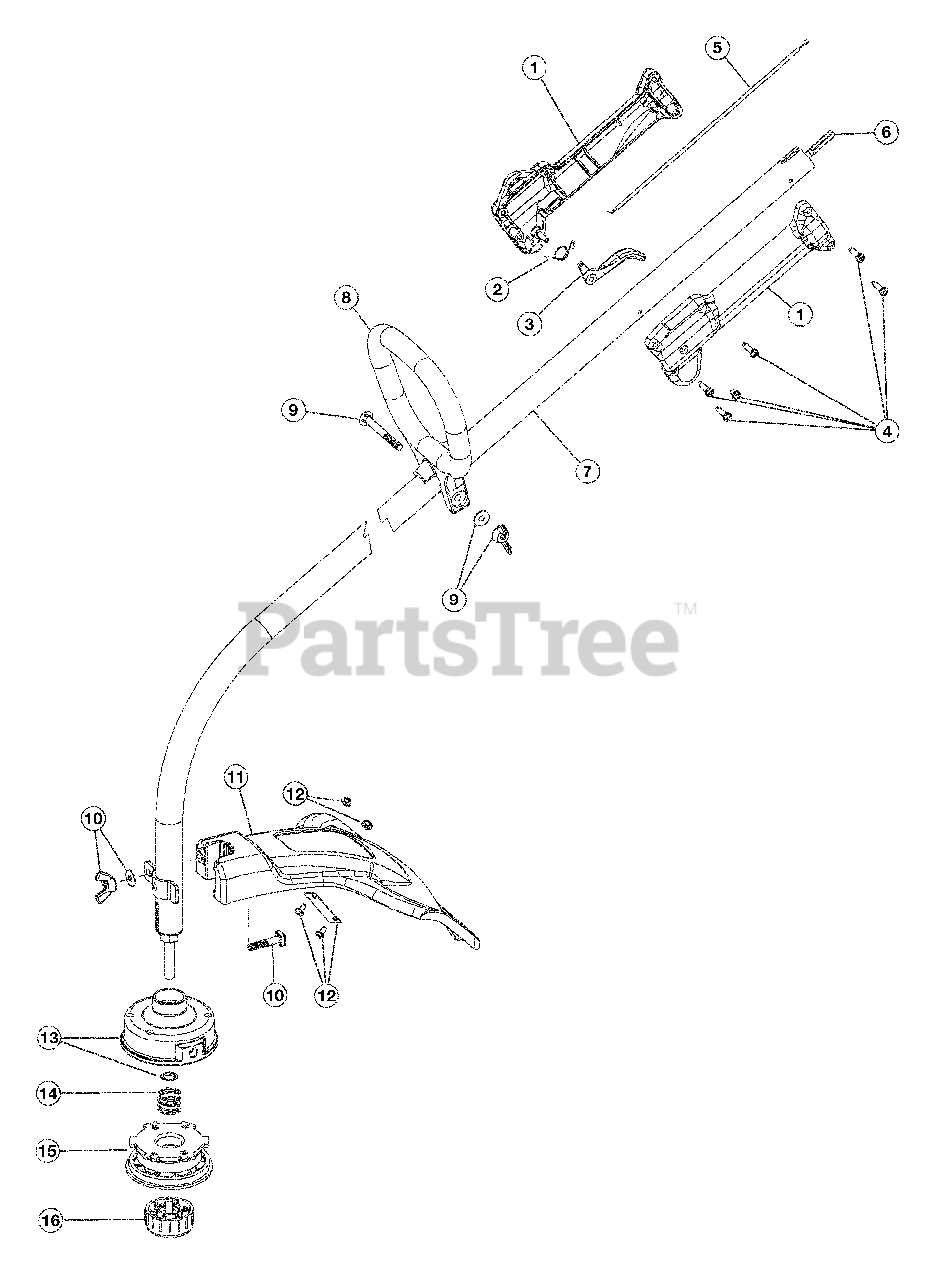

Boom And Trimmer Parts Parts Diagram

  • Title

1

MTD 753-04279

Throttle Housing and Trigger Assembly

Note: (includes 2 & 3)

$

$

Not available

2

MTD 791-610314

Throttle Trigger Spring

$9.49

$

Usually ships in 3-6 days

0

3

MTD 791-180975

Throttle Trigger
(Superseded to 791-181807)

$9.49

$

In Stock, Qty 9

0

4

MTD 753-04361

Throttle Housing Screws

$

$

Not available

5

MTD 791-182068

Throttle Cable

$19.99

$

In Stock, only 2 left!

0

6

MTD 753-04280

Flexible Drive Shaft

$75.99

$

Usually ships in 3-6 days

0

7

MTD 753-04281

Drive Shaft Housing Assembly

Note: (includes 6 & 13)

$

$

Not available

8

MTD 791-153064

D-Handle Assembly

Note: (includes 9)

$

$

Not available

9

MTD 791-153317

D-Handle Hardware
(Superseded to 791-181587)

$18.99

$

In Stock, only 1 left!

0

10

MTD 753-04282

Guard Mounting Hardware

$23.99

$

In Stock, Qty 6

0

11

MTD 753-04283

Guard

$47.99

$

In Stock, Qty 5

0

12

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 2 left!

0

13

MTD 753-04284

Outer Reel w/Retainer

$26.99

$

In Stock, Qty 20+

0

14

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

15

MTD 791-6103118

Inner Reel

$

$

Currently unavailable

16

MTD 791-153066B

Bump Knob

$13.99

$

In Stock, Qty 20+

0

MTD 791-153577B

Inner Reel and Line

Note: Optional Accessory; Item Not Shown

$26.99

$

In Stock, only 4 left!

0

MTD 791-682075B

Shoulder Strap Assembly

Note: Optional Accessory; Item Not Shown

$36.99

$

Usually ships in 3-6 days

0
