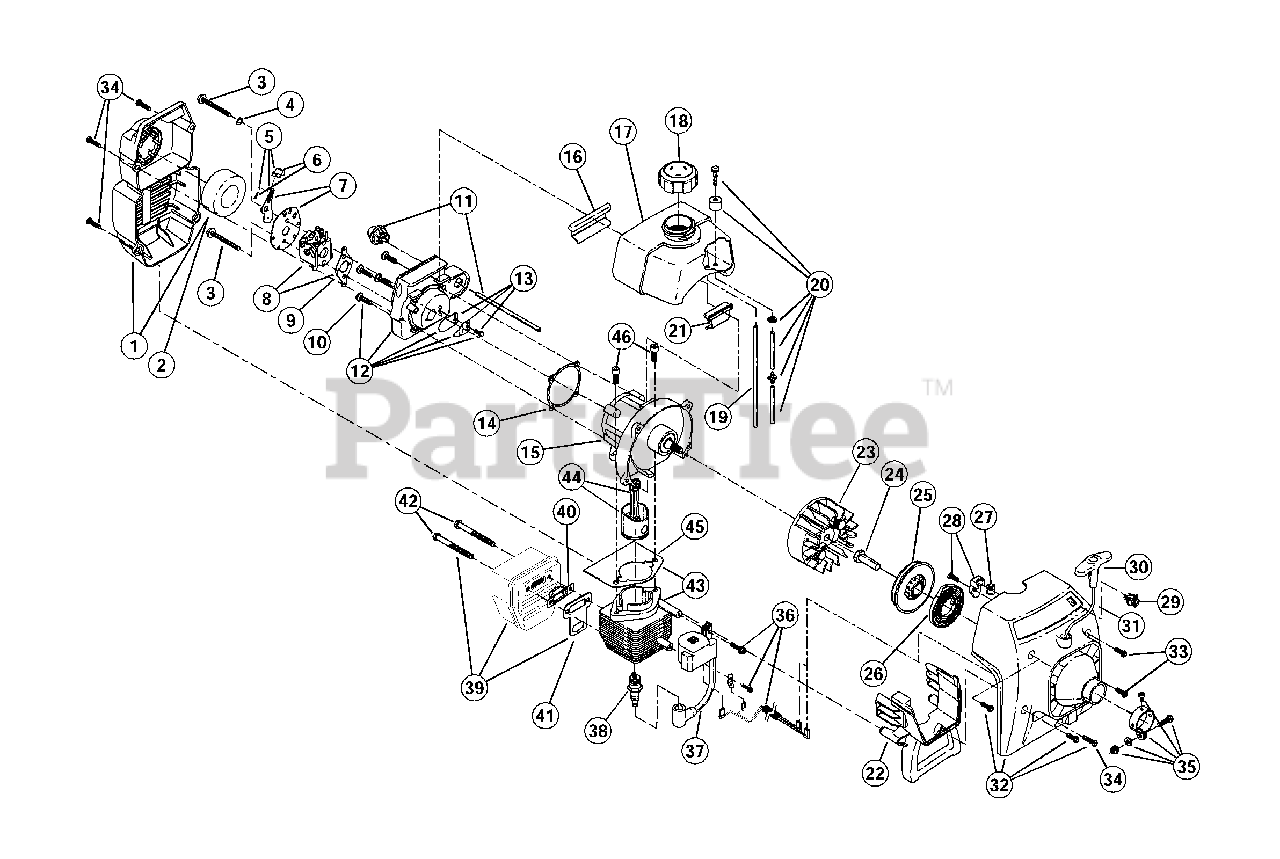

2800m (41CD280G000) - Yard Machines String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 791-182059

Air Cleaner/Muffler Cover Assembly
(Superseded to 753-04511)

Note: (includes 2 & 42)

$36.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.49

$

In Stock, Qty 11

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 13

0

5

MTD 791-182160

Choke Lever Assembly
(Superseded to 753-04418)

Note: (includes 6)

$10.99

$

Usually ships in 3-6 days

0

6

MTD 791-182161

Choke Knob and Screw
(Superseded to 791-182202)

$14.99

$

Usually ships in 3-6 days

0

7

MTD 791-182162

Choke Lever and Plate
(Superseded to 753-04419)

Note: (includes 5)

$

$

Not available

8

MTD 753-04320

Carburetor Assembly

Note: (includes 9)

$

$

Not available

9

MTD 791-610675

Carburetor Gasket

$3.99

$

In Stock, Qty 20+

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-683974B

Primer and Hose Assembly

$21.99

$

In Stock, Qty 20+

0

12

MTD 753-1196

Carb Mount Assembly

Note: (includes 10 & 15)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Crank Case Gasket

$15.99

$

In Stock, Qty 5

0

15

MTD 753-04321

Crank Case Service Assembly

Note: (includes 10, 14 & 24)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 791-182767

Fuel Tank Assembly

Note: (includes 18-20)

$

$

Not available

18

MTD 791-182612

Fuel Cap Assembly

$18.99

$

In Stock, Qty 18

0

19

MTD 791-181168

Fuel Return Line
(Superseded to 791-181086)

$6.99

$

In Stock, Qty 20+

0

20

MTD 791-683398

Fuel Line Assembly

$

$

Not available

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 791-182064

Shroud Extension and Stand
(Superseded to 753-04611)

$

$

Not available

23

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$71.99

$

In Stock, only 3 left!

0

24

MTD 791-610303

Square Nut Drive

$

$

Not available

25

MTD 753-04232

Recoil Pulley Assembly

$

$

Not available

26

MTD 791-613102

Recoil Spring

$24.99

$

Usually ships in 3-6 days

0

27

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

28

MTD 791-181889

Pulley Retainer Assembly

$6.49

$

Usually ships in 3-6 days

0

29

MTD 753-04241

Switch Assembly

Note: (includes 36)

$

$

Not available

30

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 3 left!

0

31

MTD 791-613103

Rope

$9.99

$

In Stock, only 4 left!

0

32

MTD 753-04329

Starter Housing Assembly

Note: (includes 25-31 & 34)

$

$

Not available

33

MTD 791-181862

Housing Screw

$4.49

$

In Stock, Qty 20+

0

34

MTD 761-181345

Cover Screw

$

$

Currently unavailable

35

MTD 791-153597

Upper Clamp Assembly

$15.99

$

In Stock, only 1 left!

0

36

MTD 753-04242

Wire Lead
(Superseded to 794-00028)

$8.49

$

Usually ships in 3-6 days

0

37

MTD 753-04324

Module Assembly

$102.99

$

In Stock, only 1 left!

0

38

MTD 791-610311B

Spark Plug

$13.99

$

In Stock, Qty 9

0

39

MTD 791-182066

Muffler Assembly
(Superseded to 753-05169)

Note: (includes 40-42)

$104.99

$

Usually ships in 3-6 days

0

40

MTD 791-182747

Spark Arrestor

$

$

Not available

41

MTD 753-04159

Exhaust Gasket
(Superseded to 753-04619)

$8.49

$

In Stock, only 4 left!

0

42

MTD 791-147575

Muffler Mounting Bolt

$

$

Not available

43

MTD 753-04323

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 45 & 46)

$78.99

$

In Stock, only 1 left!

0

44

MTD 753-1207

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

45

MTD 753-1197

Cylinder Gasket

$

$

Not available

46

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 20+

0

MTD 753-04134

Engine Gasket Kit

Note: Not Shown

$

$

Not available

MTD 791-180602

O.E.M. Carburetor Repair Kit (Walbro)

Note: Not Shown

$66.99

$

Usually ships in 3-6 days

0

MTD 791-181069

Gasket Diaphragm Repair Kit (Walbro)

Note: Not Shown

$36.99

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring

Note: Not Shown

$49.99

$

Usually ships in 3-6 days

0

MTD 753-04322

Short Block Assembly

Note: (includes 10, 15, 38, 43-46); Not Shown

$

$

Not available
