280813BE (80566) - Snapper 28" Rear-Engine Riding Mower, 8hp Wheels-Front Parts Diagram

28" Rear-Engine Riding Mower, 8hp

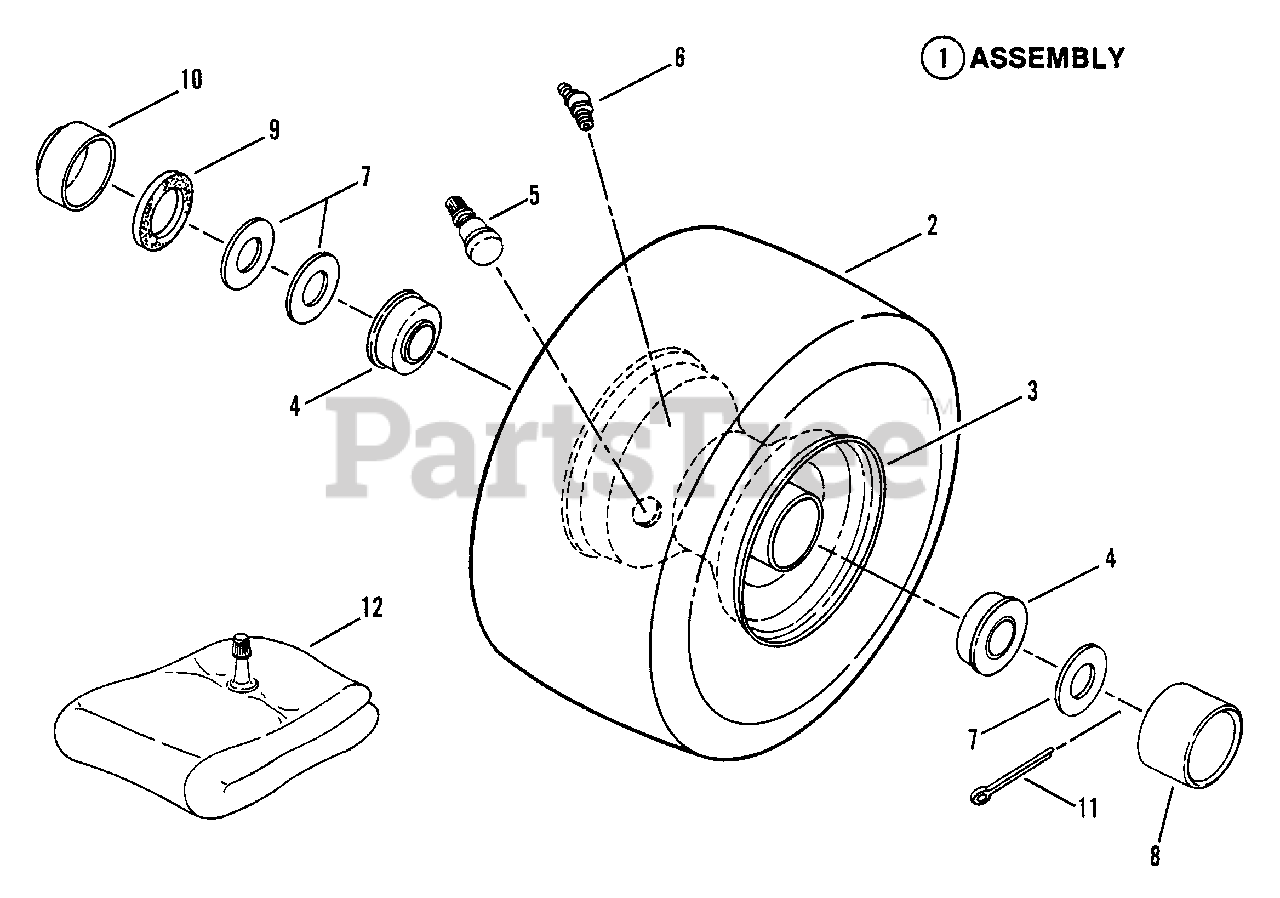

Wheels-Front Parts Diagram

  • Title

1

Snapper 7052267

ASSEMBLY, Front Tire & Rim (Complete)
(Superseded to 7052267YP)

Note: (Includes Items 2,3,4,6,12)

$90.99

$

In Stock, Qty 10

0

Snapper 7052268

ASSEMBLY, Tire & Rim
(Superseded to 7052268YP)

Note: (Includes Items 2,3,4,5,6)

$110.99

$

Usually ships in 2-12 days

0

2

Snapper 7023828

TIRE, Pneumatic 4.10/3.50 x 4
(Superseded to 7023828YP)

$60.99

$

Usually ships in 2-12 days

0

3

Snapper 7017146

RIM
(Superseded to 7058943YP)

Note: (For 4.10/3.50 x 4 Tire)

$105.99

$

In Stock, Qty 14

0

4

Snapper 7011807

BEARING, Ball
(Superseded to 7011807YP)

$7.99

$

In Stock, Qty 13

0

5

Snapper 7012234

VALVE, Air (Snap-in)(8, 10 HP)
(Superseded to 7012234SM)

$6.99

$

In Stock, Qty 20+

0

6

Snapper 7014247

FITTING Lube
(Superseded to 703153)

$3.99

$

In Stock, Qty 5

0

7

Snapper 7010935

WASHER
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7011022

CAP, Hub
(Superseded to 7011022YP)

$4.49

$

Usually ships in 2-12 days

0

9

Snapper 7011032

SEAL, Felt
(Superseded to 7011032YP)

$4.99

$

In Stock, Qty 20+

0

10

Snapper 7031038

CAP, Dust
(Superseded to 7031038YP)

$4.99

$

In Stock, Qty 20+

0

11

Snapper 7091516

PIN, 5/32 x 1" Cotter
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 12

0

12

Snapper 7010821

TUBE, Inner
(Superseded to 7010821YP)

Note: (For 4.10/3.50 x 4 Tire) (11.5, 12.5, 14, 16 HP)

$19.99

$

In Stock, only 1 left!

0
