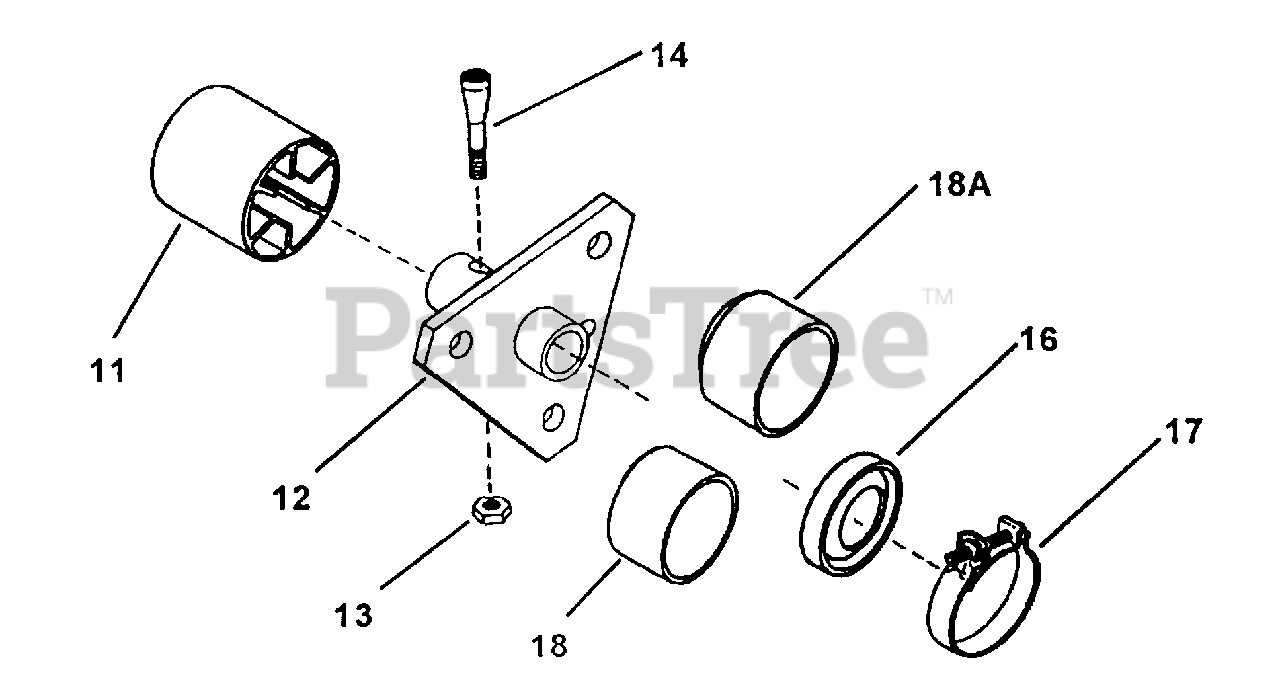

281320BE (84582) - Snapper 28" Rear-Engine Riding Mower, 13hp Wheels - Rear Left Hand Parts Diagram

28" Rear-Engine Riding Mower, 13hp

Wheels - Rear Left Hand Parts Diagram

  • Title
11

Snapper 7023522

CAP, Hub
(Superseded to 7023522YP)

Note: (Left Hand)

$6.49

$

In Stock, Qty 9

0

12

Snapper 7040434

HUB, Wheel LH, 3 Hole 3/4" ID
(Superseded to 7040434YP)

$37.99

$

In Stock, Qty 6

0

13

Snapper 7092062

NUT, 5/16-24 Hex Center Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7011035

BOLT, 5/16-24 x 1-5/8" Tapered
(Superseded to 7011035YP)

Note: (Left Hand)

$4.99

$

In Stock, Qty 20+

0

16

Snapper 7014662

SEAL, OIL .750" ID x 1.832" OD
(Superseded to 7014662YP)

Note: (Left Hand)

$9.49

$

In Stock, Qty 20+

0

17

Snapper 7012332

CLAMP, Boot, 2"
(Superseded to 7012332YP)

Note: (Left Hand) (12 & 14 HP)

$6.99

$

In Stock, Qty 7

0

18

Snapper 7014658

BOOT, LH Ball Bearing Models 3/4"
(Superseded to 7014658YP)

Note: (Left Hand) (14 HP Engines)

$7.99

$

In Stock, Qty 20+

0

18A

Snapper 7031732

BOOT, Standard Models 3/4"
(Superseded to 7031732YP)

Note: Was 35918 (Left Hand) (8, 10, 12 & 13 HP Engines)

$6.49

$

In Stock, Qty 20+

0
