28210 (120 R) - Lawn-Boy 12" Snowstick Snow Thrower (SN: 790000001 - 799999999) (1997) ENGINE ASSEMBLY Parts Diagram

12" Snowstick Snow Thrower

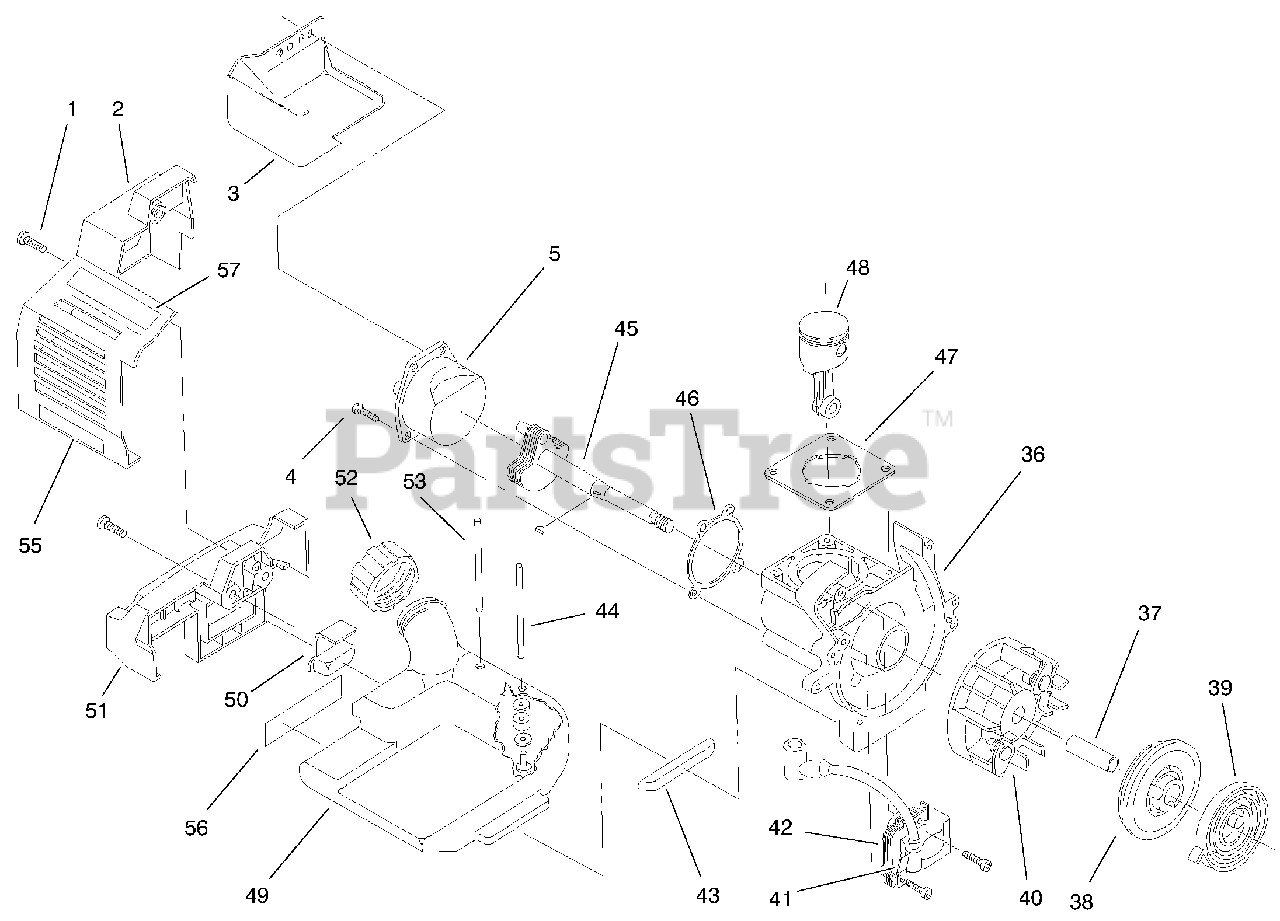

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 145888

Screw

$

$

Not available

2

Lawn-Boy 181610

Rear Cover

$

$

Not available

3

Lawn-Boy 180211

Heat Shield

$

$

Not available

4

Lawn-Boy 180212

Mounting Screw

$

$

Not available

5

Lawn-Boy 180213

Crankcase Cap

$

$

Not available

36

Lawn-Boy 180249

Crankcase Asm. (Incl. Ref. # 5, 45-46)

$

$

Not available

37

Lawn-Boy 145918

Spacer

$

$

Not available

38

Lawn-Boy 180535

Recoil Pulley

$

$

Not available

39

Lawn-Boy 613102

Recoil Spring

$24.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 180929

Flywheel Asm.

$

$

Not available

41

Lawn-Boy 92-3223

Ground Tab

$

$

Not available

42

Lawn-Boy 180238

Module Asm.

$

$

Not available

43

Lawn-Boy 180239

Front Pad-Fuel Tank

$

$

Not available

44

Lawn-Boy 180244

Fuel Line Asm.

$

$

Not available

45

Lawn-Boy 180245

Power Shaft Asm.

$

$

Not available

46

Lawn-Boy 180246

Crankcase Cap Gasket

$

$

Not available

47

Lawn-Boy 180236

Cylinder Gasket

$

$

Not available

48

Lawn-Boy 180534

Piston and Rod Asm.

$

$

Not available

49

Lawn-Boy 180240

Fuel Tank Asm.

$

$

Not available

50

Lawn-Boy 180241

Rear Fuel Tank Pad

$

$

Not available

51

Lawn-Boy 180536

Fuel Tank Bracket

$

$

Not available

52

Lawn-Boy 180000

Fuel Tank Cap

$

$

Not available

53

Lawn-Boy 180243

Return Fuel Line

$

$

Not available

55

Lawn-Boy 92-3332

Decal-Warning
(Superseded to 95-5084)

$

$

Not available

56

Lawn-Boy 92-3334

Decal-Fuel & Oil Mix
(Superseded to 95-5082)

$

$

Not available

57

Lawn-Boy 92-3350

Decal-Carb.

$

$

Not available
