28222 (320 E) - Lawn-Boy 20" Snow Thrower (SN: 200000001 - 200999999) (2000) ENGINE & GAS TANK ASSEMBLY Parts Diagram

20" Snow Thrower

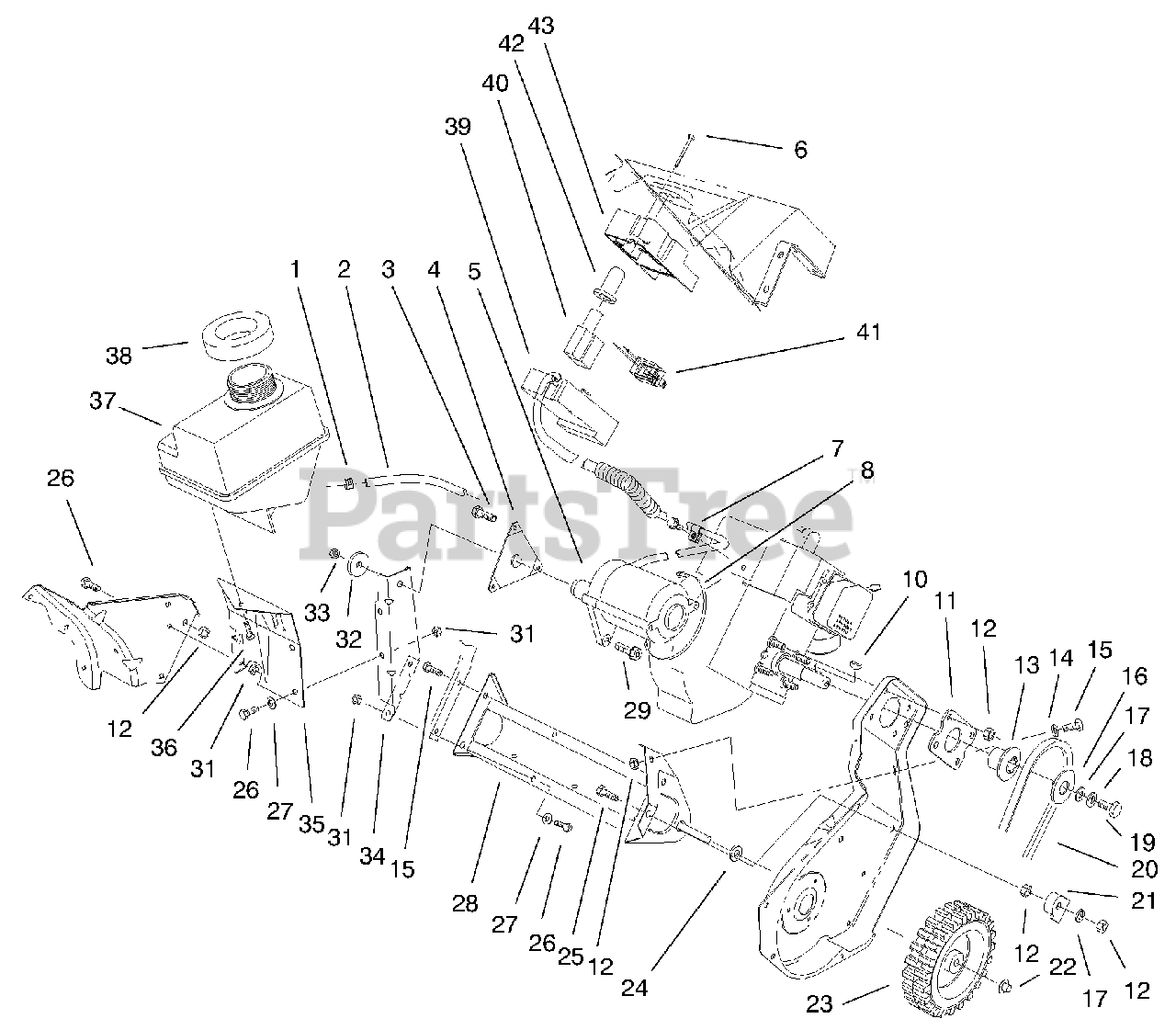

ENGINE & GAS TANK ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 2412-98

Clamp

$1.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 49-2482

Gas Line

$14.99

$

In Stock, Qty 5

0

3

Lawn-Boy 3255-10

Washer-Lock/Ext

$0.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 92-6031

Screw

$

$

Not available

4

Lawn-Boy 92-6012

Bracket/Stud ASM

$11.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 77-0402

Starter Motor ASM 120 Volt] (only on: 28222)
(Superseded to 105-2953)

$

$

Not available

6

Lawn-Boy 32144-27

Screw-Plastite (only on: 28222)

$6.49

$

In Stock, only 3 left!

0

7

Lawn-Boy 2412-91

Clamp R (only on: 28222)

$3.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 250-7

Tie-Cable

$6.49

$

In Stock, only 1 left!

0

10

Lawn-Boy 3257-3

Key-Woodruff

$1.49

$

In Stock, Qty 10

0

11

Lawn-Boy 71-5290-03

Engine Plate

$6.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 3296-29

Nut-Lock Ni

$2.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 71-5050

Hub-Half Sheave

$54.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 3256-23

Washer-Flat

$2.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 322-3

Screw-HH

$0.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 71-5060

Cap-Half Sheave

$13.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 3256-71

Washer-Flat

$1.49

$

In Stock, Qty 9

0

18

Lawn-Boy 3290-456

Washer-Belleville

$2.99

$

In Stock, Qty 9

0

19

Lawn-Boy 3235-6

Screw-Hex Hd Cs

$4.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 71-5381

Drive V-Belt

$21.99

$

In Stock, Qty 15

0

21

Lawn-Boy 84-5610

Guide-Cable

$2.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 3290-320

Retainer-Push On

$1.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 23-3250

Wheel

$18.99

$

In Stock, Qty 8

0

24

Lawn-Boy 71-5440

Wheel Spacer

$5.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 322-5

Screw-HH

$0.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 321-4

Screw-HH

$1.49

$

In Stock, Qty 20+

0

27

Lawn-Boy 3256-22

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 71-5200-03

Frame Wa

$135.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 80-0700

Screw-Mtg Torx (only on: 28222)

$2.49

$

In Stock, only 2 left!

0

31

Lawn-Boy 3296-42

Nut-Lock Ni

$0.99

$

In Stock, Qty 20+

0

32

Lawn-Boy 71-5320

Engine Support Washer

$13.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 3296-16

Nut-Lock Ni

$1.49

$

In Stock, Qty 6

0

34

Lawn-Boy 71-5210-03

Engine Support

$7.99

$

In Stock, only 1 left!

0

35

Lawn-Boy 71-5220-03

Tank Bracket

$

$

Not available

36

Lawn-Boy 32144-53

Screw-Self TAP

$3.49

$

In Stock, Qty 10

0

37

Lawn-Boy 71-5020

Fuel Tank
(Superseded to 105-2997)

$

$

Not available

38

Lawn-Boy 55-9310

Foam Seal

$

$

Not available

39

Lawn-Boy 100-3441

Base Housing Switch (only on: 28222)

$11.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 61-4820

Switch,Starter (only on: 28222)

$15.99

$

In Stock, only 4 left!

0

41

Lawn-Boy 94-9933

Power Plug (only on: 28222)

$6.99

$

In Stock, only 2 left!

0

42

Lawn-Boy 61-4810

Boot,Switch (only on: 28222)

$

$

Not available

43

Lawn-Boy 100-3442

Cap Housing Switch (only on: 28222)

$10.99

$

Usually ships in 3-6 days

0

99

Lawn-Boy 28-9170

Cord (only on: 28222)
(Superseded to 106-4741)

Note: Not illustrated

$

$

Not available
