28223 (320 E) - Lawn-Boy 20" Snow Thrower (SN: 007900001 - 007999999) (1997) RECOIL STARTER NO. 590735 Parts Diagram

20" Snow Thrower

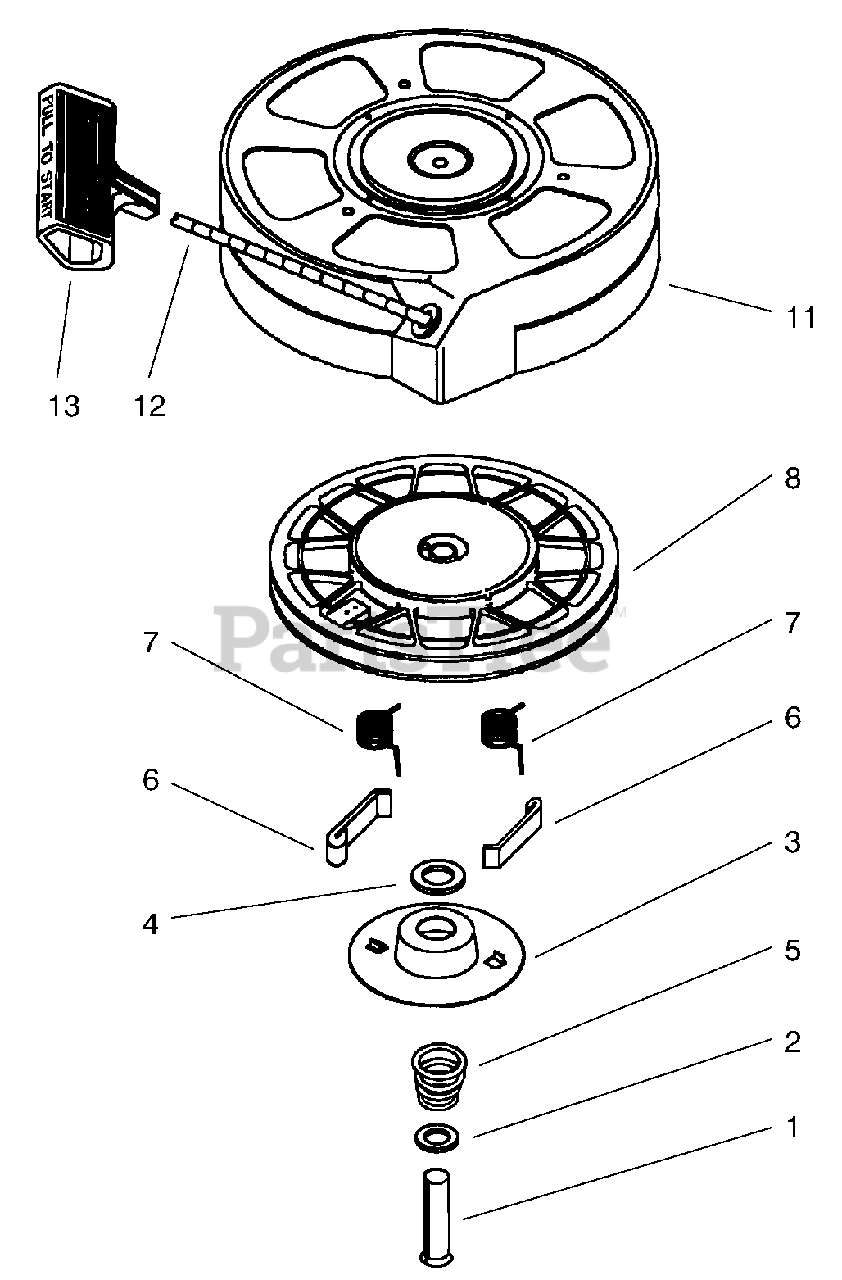

RECOIL STARTER NO. 590735 Parts Diagram

  • Title
11

Lawn-Boy 590703

Starter Housing Assembly

$

$

Currently unavailable

12

Lawn-Boy 590535

Starter Rope

$

$

Currently unavailable

13

Lawn-Boy 590701

Starter Handle

$

$

Currently unavailable

1

Lawn-Boy 590599A

Spring Pin (Incl. Ref. #4)

$

$

Currently unavailable

2

$

$

Currently unavailable

3

Lawn-Boy 590696

Retainer

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Lawn-Boy 590697

Brake Spring

$

$

Currently unavailable

6

Lawn-Boy 590698

Starter Dog

$

$

Currently unavailable

7

Lawn-Boy 590699

Dog Spring

$

$

Currently unavailable

8

Lawn-Boy 590709

Pulley & Rewind Spring Assembly

$

$

Currently unavailable
