28226 (720 E) - Lawn-Boy 20" Snow Thrower (SN: 220000001 - 220999999) (2002) SHROUD AND CONTROL PANEL ASSEMBLY Parts Diagram

20" Snow Thrower

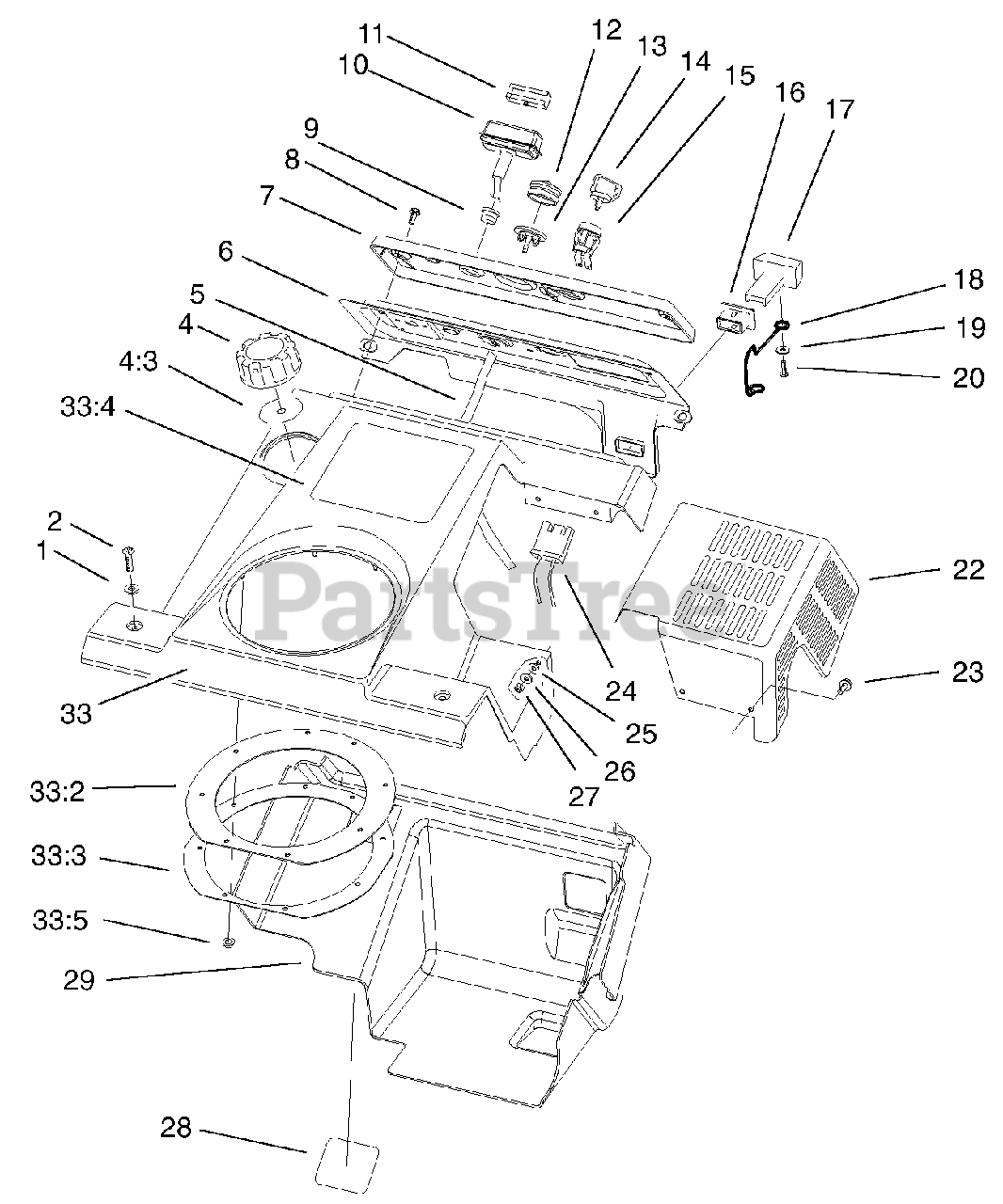

SHROUD AND CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 55-3573

CAP-FUEL ASM
(Superseded to 104-4133)

$14.99

$

In Stock, only 1 left!

0

4:3

Lawn-Boy 56-6110

Gasket-Vented
(Superseded to 55-3570)

$14.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 98-1372

HOSE-PRIMER

$4.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 55-9490-03

Panel-Control
(Superseded to 12-4659)

$87.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 55-9410

GUIDE-ROPE, STARTER

$9.49

$

Usually ships in 3-6 days

0

10

Lawn-Boy 612825

HANDLE-START
(Superseded to 81-1630)

$18.99

$

In Stock, Qty 6

0

11

Lawn-Boy 612824

CLIP-STARTER

$3.99

$

In Stock, Qty 13

0

12

Lawn-Boy 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 700918

KEY

$6.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 40-5940

SWITCH

$15.99

$

In Stock, Qty 11

0

16

Lawn-Boy 55-8820

FITTING

$8.49

$

In Stock, only 3 left!

0

17

Lawn-Boy 55-8810

CONTROL-CHOKE

$11.99

$

In Stock, only 3 left!

0

18

Lawn-Boy 95-7439

LINKAGE-CHOKE

$16.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 3256-49

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

20

Lawn-Boy 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 55-9210-03

SHIELD-HEAT

$

$

Not available

23

Lawn-Boy 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

24

Lawn-Boy 218-532

CONNECTOR-BODY

$13.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 55-9660

WASHER

$

$

Not available

26

Lawn-Boy 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 3296-12

NUT-LOCK

$1.49

$

In Stock, Qty 12

0

28

Lawn-Boy 61-4790

DECAL

$11.99

$

Usually ships in 3-6 days

0

33:3

Lawn-Boy 55-9540-03

RETAINER-SEAL, CHUTE

$18.99

$

In Stock, only 1 left!

0

33:5

Lawn-Boy 3290-474

PALNUT

$0.99

$

In Stock, Qty 11

0
